| Item | Part No. | Part Name | Qty | Serial No. |

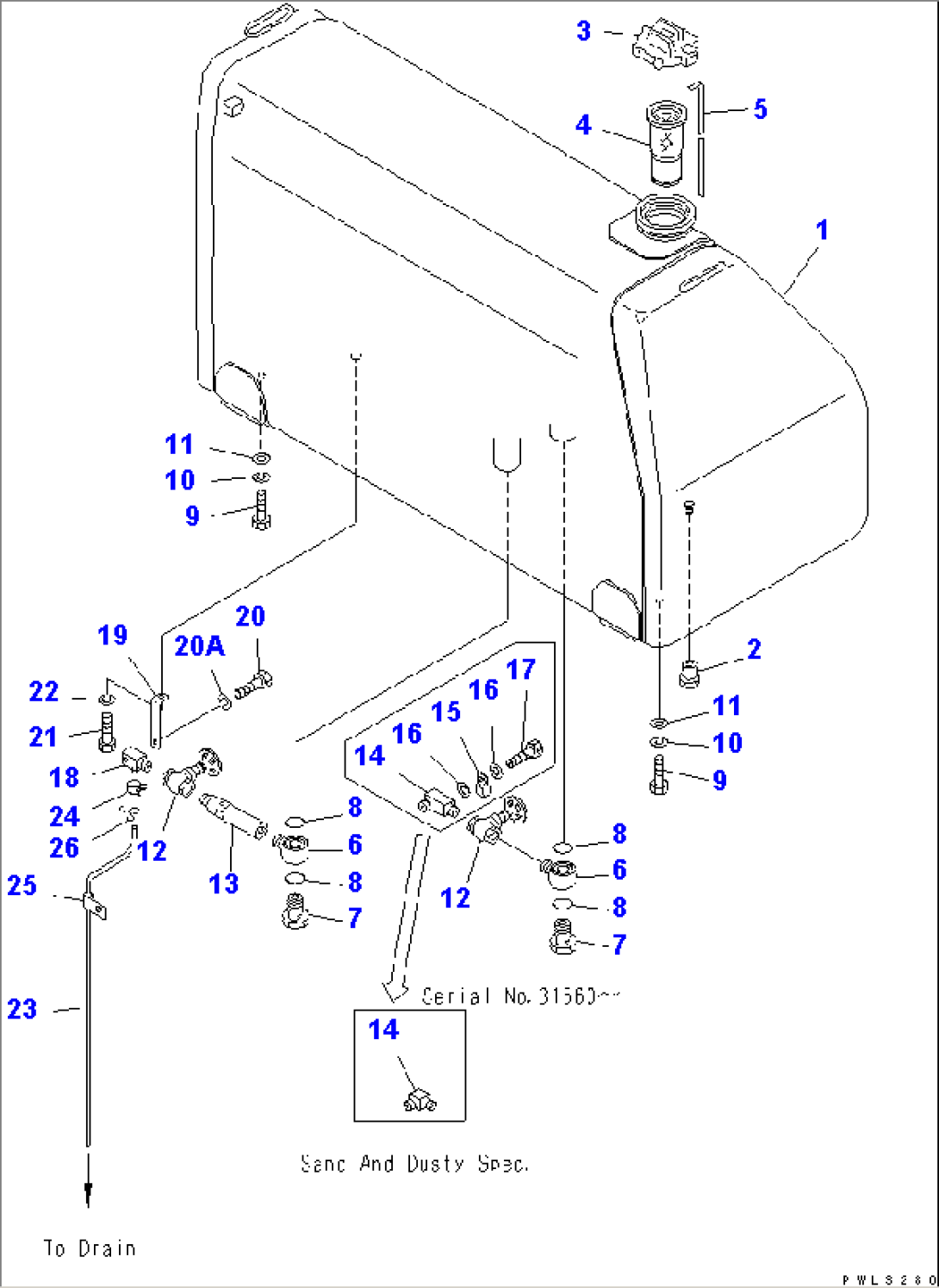

| 176-04-00012 | FUEL TANK ASS'Y | 15686- | ||
| 1 | \6\ | TANK¤FUEL,FUEL | 15686- | |
| 2 | 154-04-12470 | PLUG | 15686- | |
| 3 | 07050-41200 | CAP | 15686- | |
| 07091-21200 | CAP,(FOR VANDALISM) (OP) | 31574- | ||
| 07050-21202 | GASKET | 15686- | ||
| 4 | 07056-18416 | STRAINER | 15686- | |
| 5 | 176-04-41120 | GAUGE | 15686- | |
| 6 | 195-04-11230 | JOINT,EYE | 15686- | |
| 7 | 195-04-11280 | BOLT,BOLT | 15686- | |
| 8 | 07000-03035 | O-RING | 15686- | |
| 9 | 01010-82465 | BOLT | 15686- | |
| 10 | 01643-32460 | WASHER | 21739- | |
| \0\01602-02472 | WASHER,SPRING | 15686-21738 | ||
| 11 | 154-54-31150 | WASHER | 15686- | |
| 12 | 154-04-12492 | VALVE | 23891- | |
| \0\154-04-12491 | VALVE | 21739-23890 | ||
| \0\07700-20504 | VALVE | 15686-21738 | ||
| 13 | 195-04-11420 | NIPPLE | 15686- | |
| 14 | 195-04-12280 | ELBOW,(SAND AND DUSTY SPEC.) | 31560- | |
| 195-04-11511 | ELBOW | 15686-31559 | ||
| 15 | 195-04-13180 | ELBOW | 15686-31559 | |
| 16 | 07005-01012 | GASKET,SEAL | 15686-31559 | |
| 17 | 154-01-11340 | BOLT | 15686-31559 | |
| 18 | 195-04-11431 | ELBOW | 15686- | |
| 19 | 176-04-41160 | PLATE | 15686- | |
| 20 | 01010-81020 | BOLT | 15686- | |
| 20A | 01602-21030 | WASHER,SPRING | 15686- | |
| 21 | 01010-30816 | BOLT | 15686- | |
| 22 | 01602-00825 | WASHER,SPRING | 15686- | |
| 23 | 07270-01295 | TUBE | 15686- | |
| 24 | 154-04-12460 | CLAMP | 15686-31415 | |
| 25 | 154-04-11211 | CLIP | 31416- | |
| 154-04-11210 | CLIP | 15686-31415 | ||
| 26 | 07285-00150 | CLIP | 31416- | |
| \0\07285-00130 | CLIP | 23891-31415 | ||
| 07285-00130 | CLIP,(SAND AND DUSTY SPEC.) | 31560- |
