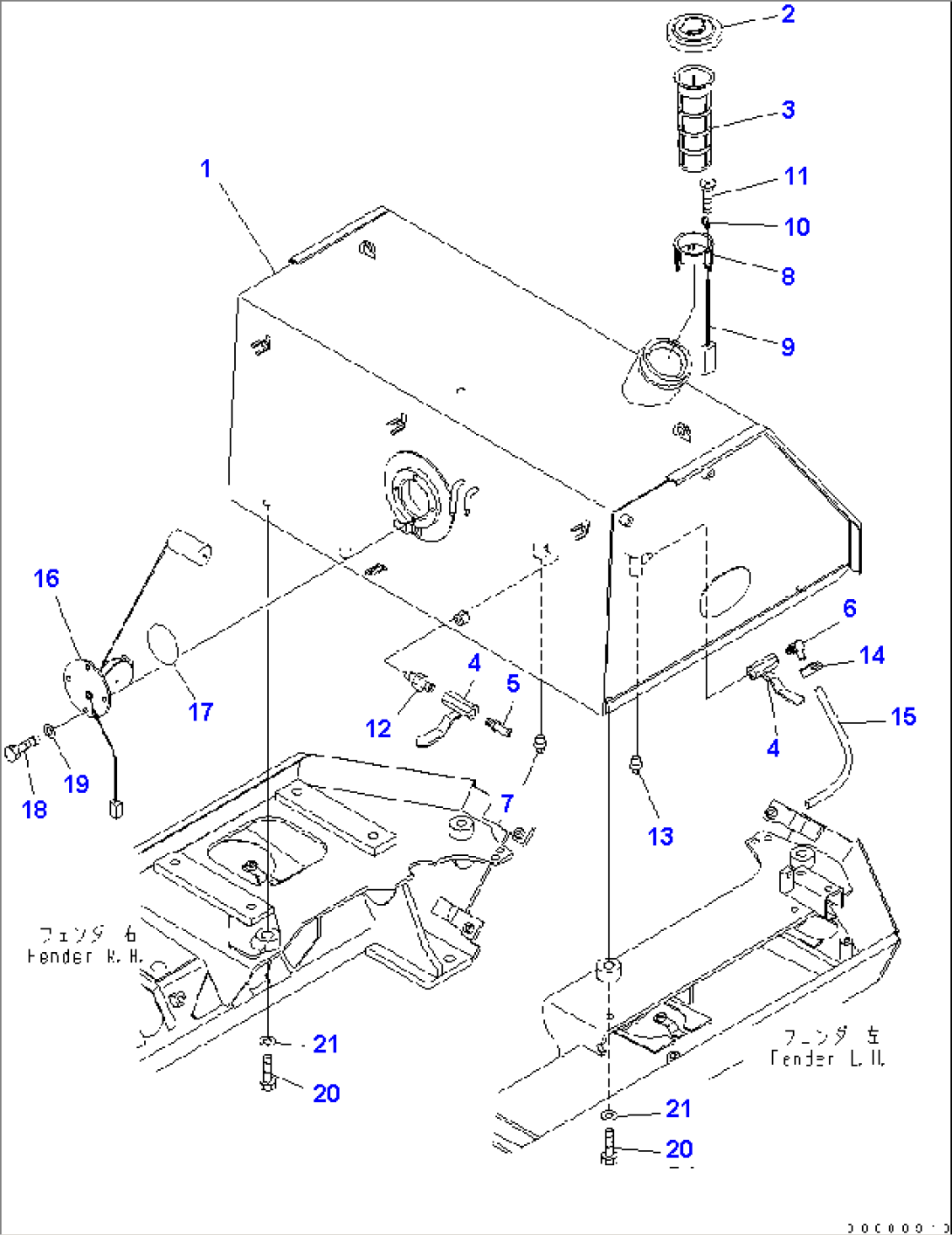

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-04-71413 | TANK,FUEL | B3001- | |
| 134-04-61122 | SEAL,L.H. (PERMANENT GRAY) | B3001- | ||
| 134-04-61132 | SEAL,R.H. (PERMANENT GRAY) | B3001- | ||
| 2 | 134-04-61180 | CAP | B3001- | |
| 3 | 22U-04-21231 | STRAINER | B3001- | |
| 4 | 07700-40240 | VALVE | B3001- | |
| 5 | 120-04-41130 | NIPPLE | B3001- | |
| 6 | 14X-04-11260 | ELBOW | B3001- | |
| 7 | 07042-70211 | PLUG | B3001- | |
| 20Y-04-21550 | FLOAT ASS'Y | B3001- | ||
| 8 | \6\ | GUIDE | B3001- | |
| 9 | 20Y-04-21570 | FLOAT | B3001- | |
| 10 | 20Y-04-21580 | CAP | B3001- | |
| 11 | \6\ | SCREW | B3001- | |
| 12 | 07325-10200 | NIPPLE | B3001- | |
| 13 | 07042-70617 | PLUG | B3001- | |
| 14 | 07285-00115 | CLIP | B3001- | |
| 15 | 07270-01035 | TUBE | B3001- | |
| 16 | 7861-92-4940 | SENSOR,FUEL | B3001- | |
| 17 | 07000-12085 | O-RING | B3001- | |
| 18 | 01010-81020 | BOLT | B3001- | |
| 19 | 01643-31032 | WASHER | B3001- | |
| 20 | 01010-81660 | BOLT | B3001- | |
| 21 | 01643-31645 | WASHER | B3001- |
