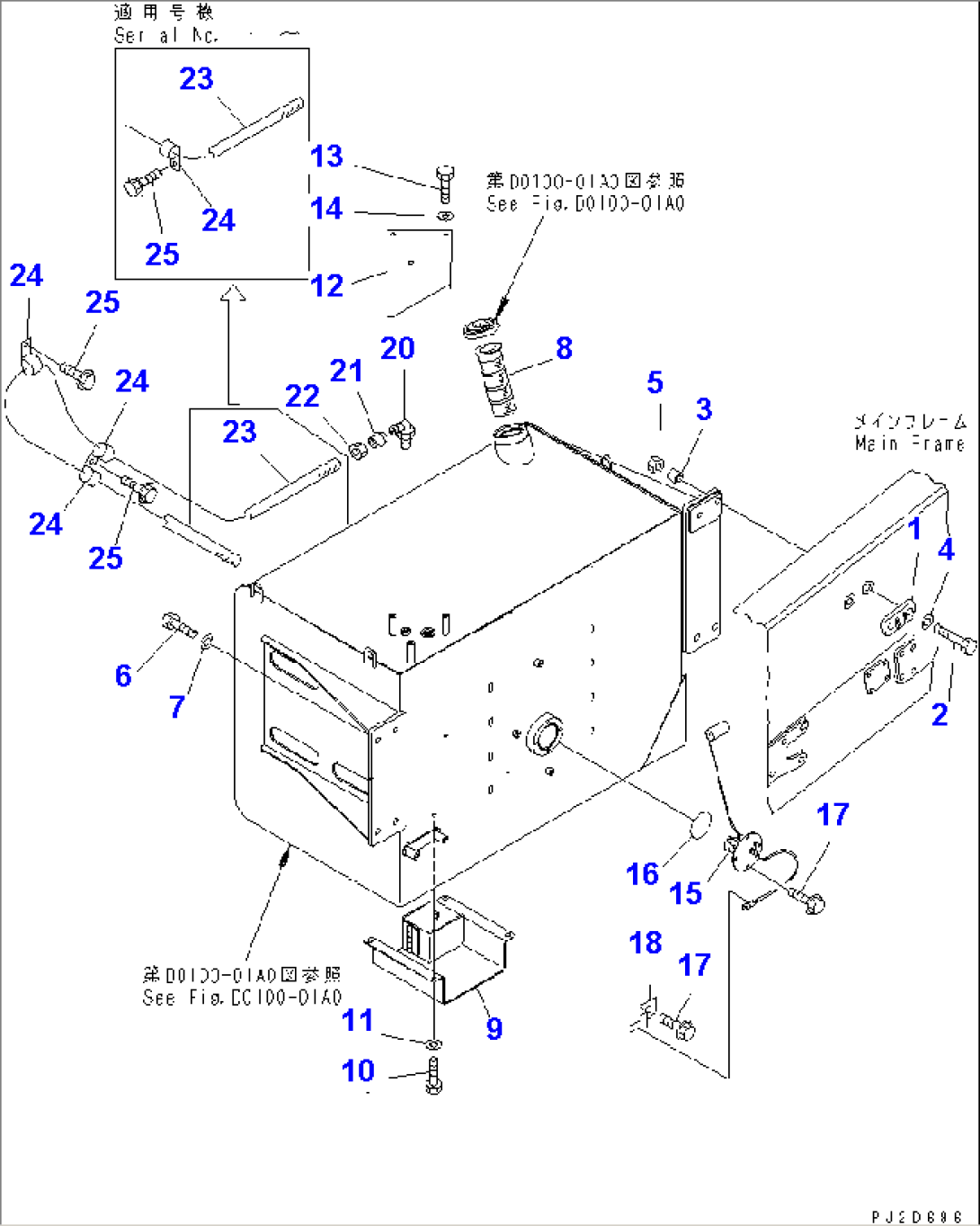

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-04-81170 | BRACKET | 7001- | |
| 2 | 569-04-61570 | BOLT | 7001- | |
| 3 | 561-04-61230 | COLLAR | 7001- | |
| 4 | 01643-32060 | WASHER | 7001- | |
| 5 | 01580-12016 | NUT | 7001- | |
| 6 | 01010-82050 | BOLT | 7001- | |
| 7 | 01643-32060 | WASHER | 7001- | |
| 8 | 07056-18416 | STRAINER | 7001- | |
| 9 | 569-89-81410 | COVER | 7001- | |
| 10 | 01010-81225 | BOLT | 7001- | |
| 11 | 01643-31232 | WASHER | 7001- | |
| 12 | 569-84-82330 | COVER | 7001- | |
| 13 | 01010-81020 | BOLT | 7001- | |
| 14 | 01643-31032 | WASHER | 7001- | |
| 15 | 569-06-83410 | SENSOR,FUEL LEVEL | 7001- | |
| 16 | 07000-12085 | O-RING | 7001- | |
| 17 | 01435-01016 | BOLT | 7001- | |
| 18 | 08193-21012 | CLIP | 7001- | |
| 20 | 07834-00817 | ELBOW | 7001- | |
| 21 | 07831-00813 | SLEEVE | 7001- | |
| 22 | 07832-00817 | NUT | 7001- | |
| 23 | 07822-00816 | TUBE | .- | |
| 07822-00821 | TUBE | 7001-. | ||
| 24 | 08036-01214 | CLIP | .- | |
| 08036-01214 | CLIP | 7001-. | ||
| 25 | 01435-01020 | BOLT | .- | |
| 01435-01020 | BOLT | 7001-. |
