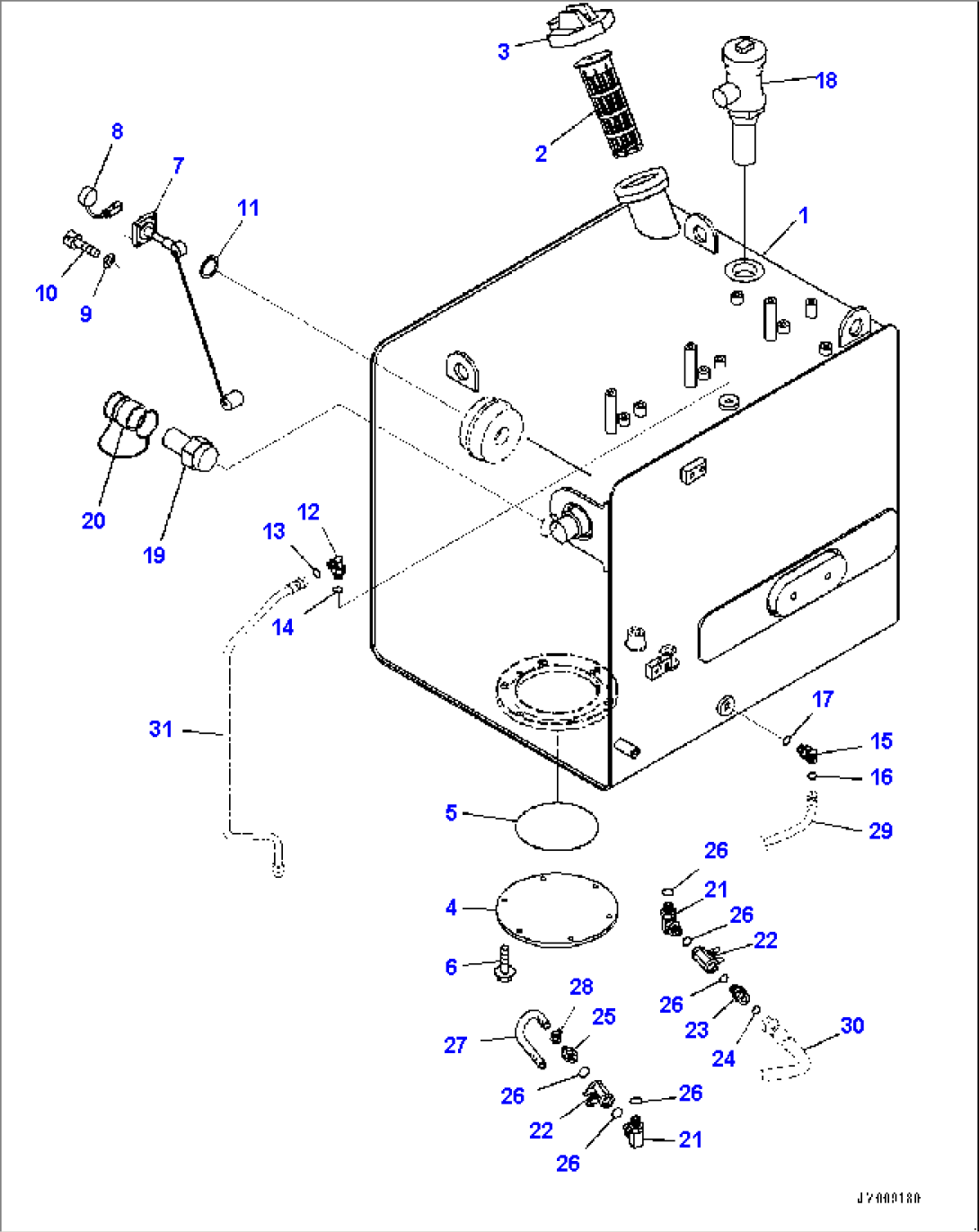

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-04-8L211 | Tank, Fuel | 50001- | |
| 2 | 07056-18422 | Strainer | 50001- | |
| 3 | 19M-04-11220 | Cap | 50001- | |
| 3 | 07050-21202 | Gasket | 50001- | |
| 4 | 569-04-81910 | Bracket | 50001- | |
| 5 | 07000-15200 | O-ring | 50001- | |
| 6 | 01435-01025 | Bolt | 50001- | |
| 7 | 566-04-8L200 | Sensor, Level | 50001- | |
| 8 | 561-06-8A950 | Gauge, Fuel Level | 50001- | |
| 9 | 01602-20619 | Washer | 50001- | |
| 10 | 01252-A0620 | Bolt, Hexagon Socket Head | 50001- | |
| 11 | 561-04-81410 | Gasket | 50001- | |
| 12 | 02782-10313 | Elbow | 50001- | |
| 13 | 02896-11009 | O-ring | 50001- | |
| 14 | 07002-11823 | O-ring | 50001- | |
| 15 | 20U-62-41860 | Elbow | 50001- | |
| 16 | 02896-11009 | O-ring | 50001- | |
| 17 | 07002-11823 | O-ring | 50001- | |
| 18 | 21T-04-31130 | Vent Assembly | 50001- | |
| 18 | 21T-04-31170 | Cap Assembly | 50001- | |
| 19 | 561-98-8A120 | Nipple Assembly | 50001- | |
| 20 | 561-98-8A130 | Cap Assembly | 50001- | |
| 21 | 14X-04-21630 | Elbow | 50001- | |
| 22 | 11Y-04-41621 | Valve | 50001- | |
| 23 | 02781-00516 | Union | 50001- | |
| 24 | 02896-11015 | O-ring | 50001- | |
| 25 | 14X-04-21650 | Nipple | 50001- | |
| 26 | 07002-12034 | O-ring | 50001- | |
| 27 | 07270-01019 | Tube | 50001- | |
| 28 | 07281-00197 | Clamp | 50001- | |
| 29 | (566-04-8L341) | Hose | - | |
| (566-04-8L341) | Hose | - | ||
| 30 | (566-04-8L331) | Hose | - | |
| (566-04-8L331) | Hose | - | ||
| 31 | (566-04-8L270) | Tube | - |
