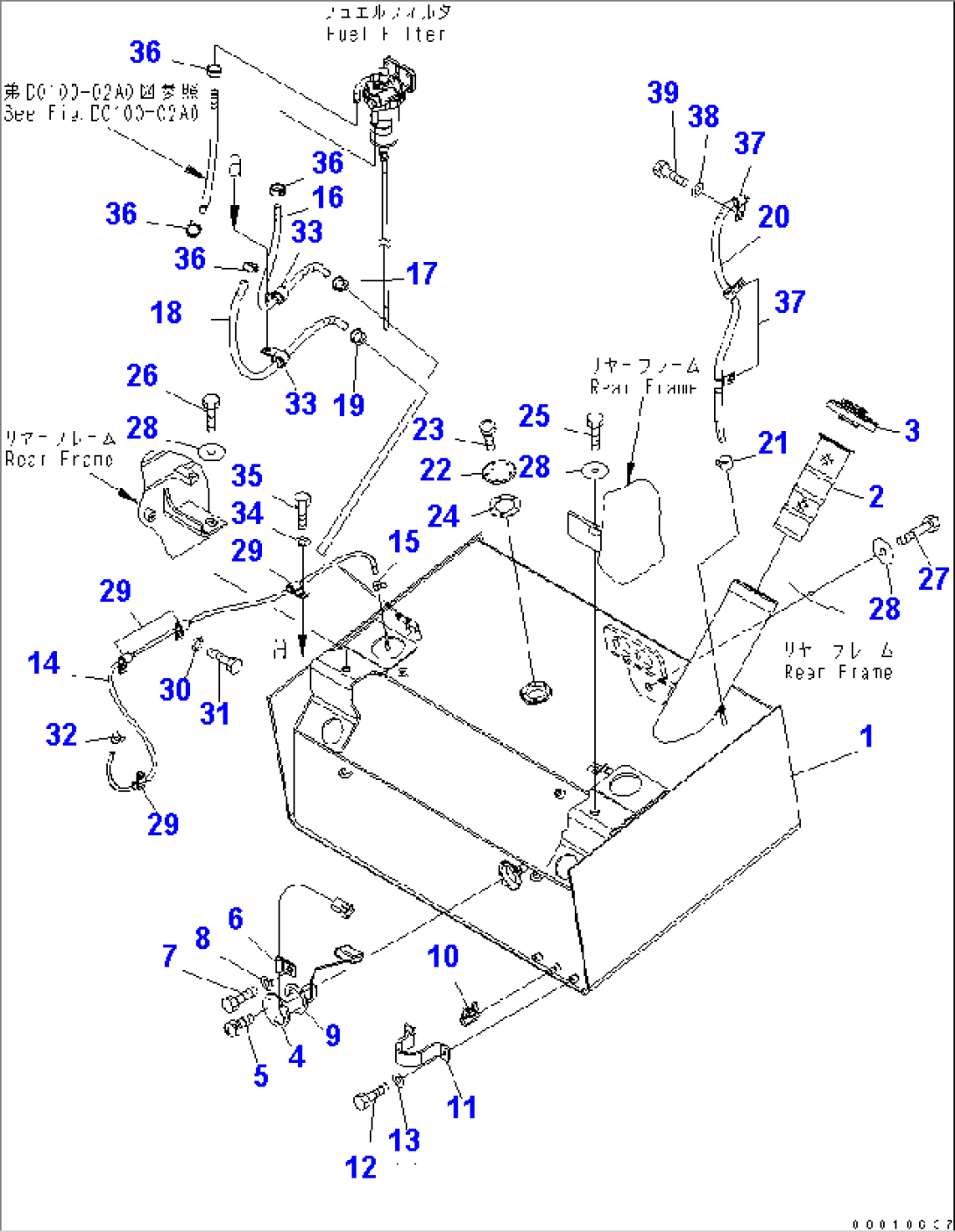

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-04-31115 | FUEL TANK | 65855- | |
| 1 | (\2\417-04-31114) | FUEL TANK | (65855-68645) | |
| 1 | 417-04-31113 | FUEL TANK | 65595-65854 | |
| 1 | 417-04-31112 | FUEL TANK | 65001-65594 | |
| 2 | 17M-04-41190 | STRAINER | 65001- | |
| 3 | 423-04-11362 | CAP | 65001- | |
| 3 | 417-04-21230 | PACKING | 65001- | |
| 4 | 418-04-31133 | SENSOR,FUEL | 65001- | |
| 5 | 01023-10510 | SCREW | 65001- | |
| 6 | 04434-50610 | CLIP | 65001- | |
| 7 | 01010-80812 | BOLT | 65001- | |
| 8 | 01643-30823 | WASHER | 65001- | |
| 9 | 418-04-31220 | PACKING | 65001- | |
| 10 | 363-04-11130 | VALVE | 65001- | |
| 11 | 417-04-10140 | COVER | 65001- | |
| 12 | 01010-80816 | BOLT | 65001- | |
| 13 | 01643-30823 | WASHER | 65001- | |
| 14 | 417-04-31330 | HOSE ASS'Y | 65001- | |
| 15 | 07285-00080 | CLIP | 65001- | |
| 16 | 418-04-31312 | HOSE ASS'Y | 65001- | |
| 17 | 11Y-09-11140 | CLIP | 65001- | |
| 18 | 418-04-31322 | HOSE ASS'Y | 65001- | |
| 19 | 11Y-09-11140 | CLIP | 65001- | |
| 20 | 07270-21090 | TUBE | 65001- | |
| 21 | 07285-00130 | CLIP | 65001- | |
| 22 | 418-04-31210 | COVER | 65001- | |
| 23 | 01023-10510 | SCREW | 65001- | |
| 24 | 418-04-31220 | PACKING | 65001- | |
| 25 | 01010-81635 | BOLT | 65001- | |
| 26 | 01010-81635 | BOLT | 65001- | |
| 27 | 01010-81665 | BOLT | 65001- | |
| 28 | 421-70-11280 | WASHER | 65001- | |
| 29 | 04434-51410 | CLIP | 65001- | |
| 30 | 01643-31032 | WASHER | 65001- | |
| 31 | 01010-81020 | BOLT | 65001- | |
| 32 | 07285-00080 | CLIP | 65001- | |
| 33 | 04434-52310 | CLIP | 65001- | |
| 34 | 01643-31032 | WASHER | 65001- | |
| 35 | 01010-81020 | BOLT | 65001- | |
| 36 | 11Y-09-11140 | CLIP | 65001- | |
| 37 | 04434-51510 | CLIP | 65001- | |
| 38 | 01643-31032 | WASHER | 65001- | |
| 39 | 01010-81020 | BOLT | 65001- |
