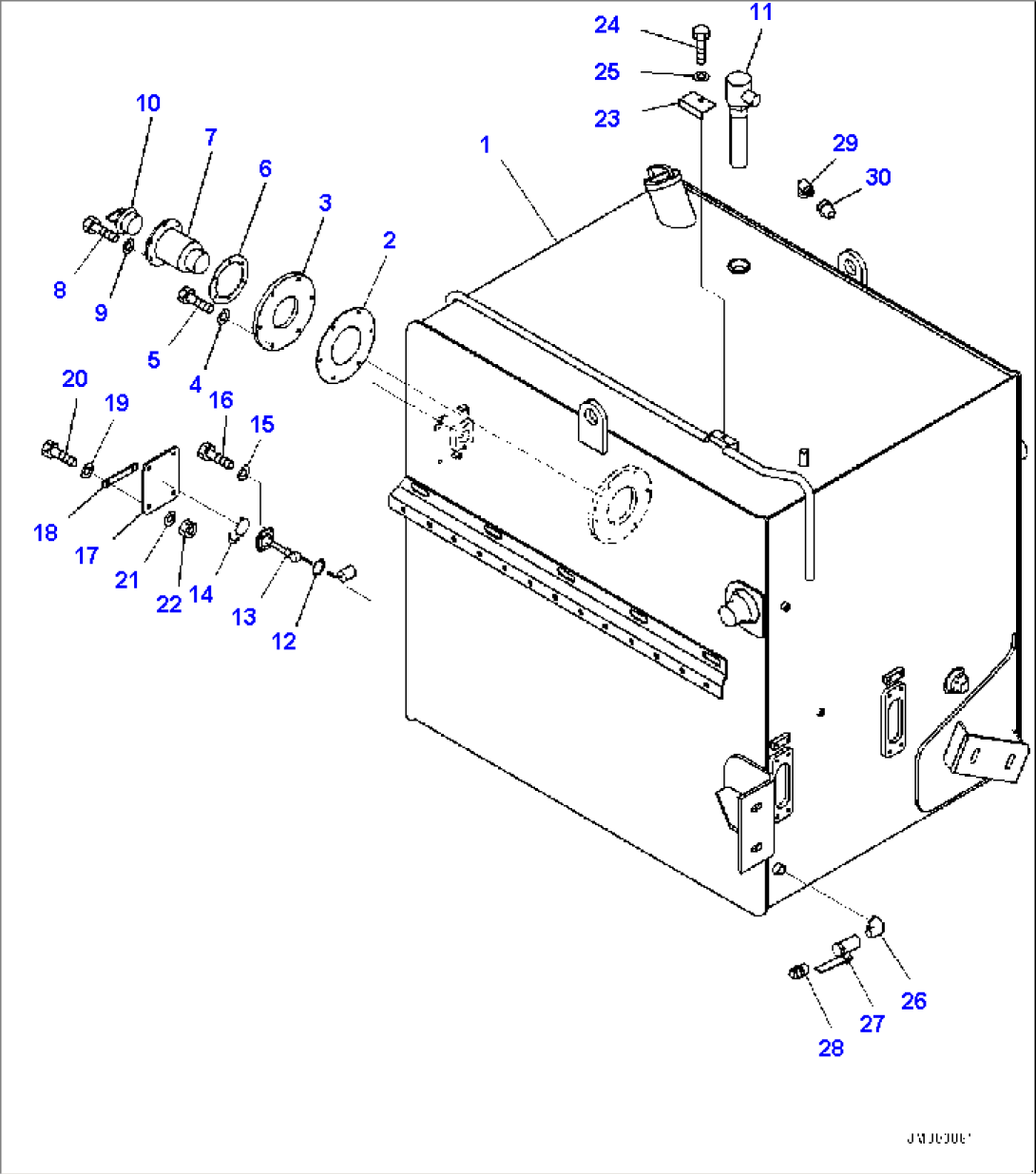

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 562-99-32111 | Tank, Fuel | 80255- | |
| 1 | 562-99-32110 | Tank, Fuel | 80138-80254 | |
| 2 | AHEK7235 | Gasket | 80138- | |
| 3 | 562-04-34180 | Flange | 80138- | |
| 4 | 01640-21016 | Washer | 80138- | |
| 5 | 02010-70638 | Bolt | 80138- | |
| 6 | AHVW4748 | Gasket | 80138- | |
| 7 | AHTA9974 | Flange Assembly | 80138- | |
| 8 | 01010-80616 | Bolt | 80138- | |
| 9 | 01643-30623 | Washer | 80138- | |
| 10 | AHVW6420 | Cap | 80138- | |
| 11 | AHTA1978 | Vent Assembly | 80138- | |
| 12 | 561-04-81410 | Gasket | 80138- | |
| 13 | AHPB9665 | Gauge, Fuel Level | 80138- | |
| 14 | AHPC1069 | Gauge, Oil Temperature | 80138- | |
| 15 | AHSD2583 | Washer | 80138- | |
| 16 | AHS5315 | Bolt | 80138- | |
| 17 | AHEL3328 | Flap | 80138- | |
| 18 | 562-04-34220 | Plate | 80138- | |
| 19 | 01643-31032 | Washer | 80138- | |
| 20 | 02010-70632 | Bolt | 80138- | |
| 21 | 01643-31032 | Washer | 80138- | |
| 22 | 02205-10609 | Nut, Unified | 80138- | |
| 23 | 562-04-34210 | Plate | 80138- | |
| 24 | 01010-81225 | Bolt | 80138- | |
| 25 | 01643-31232 | Washer | 80138- | |
| 26 | AHR1362 | Elbow | 80138- | |
| 27 | AHPB2306 | Valve | 80138- | |
| 28 | AHWB0474 | Fitting | 80138- | |
| 29 | AHWB0318 | Fitting | 80138- | |
| 30 | AHWB0365 | Fitting | 80138- |
