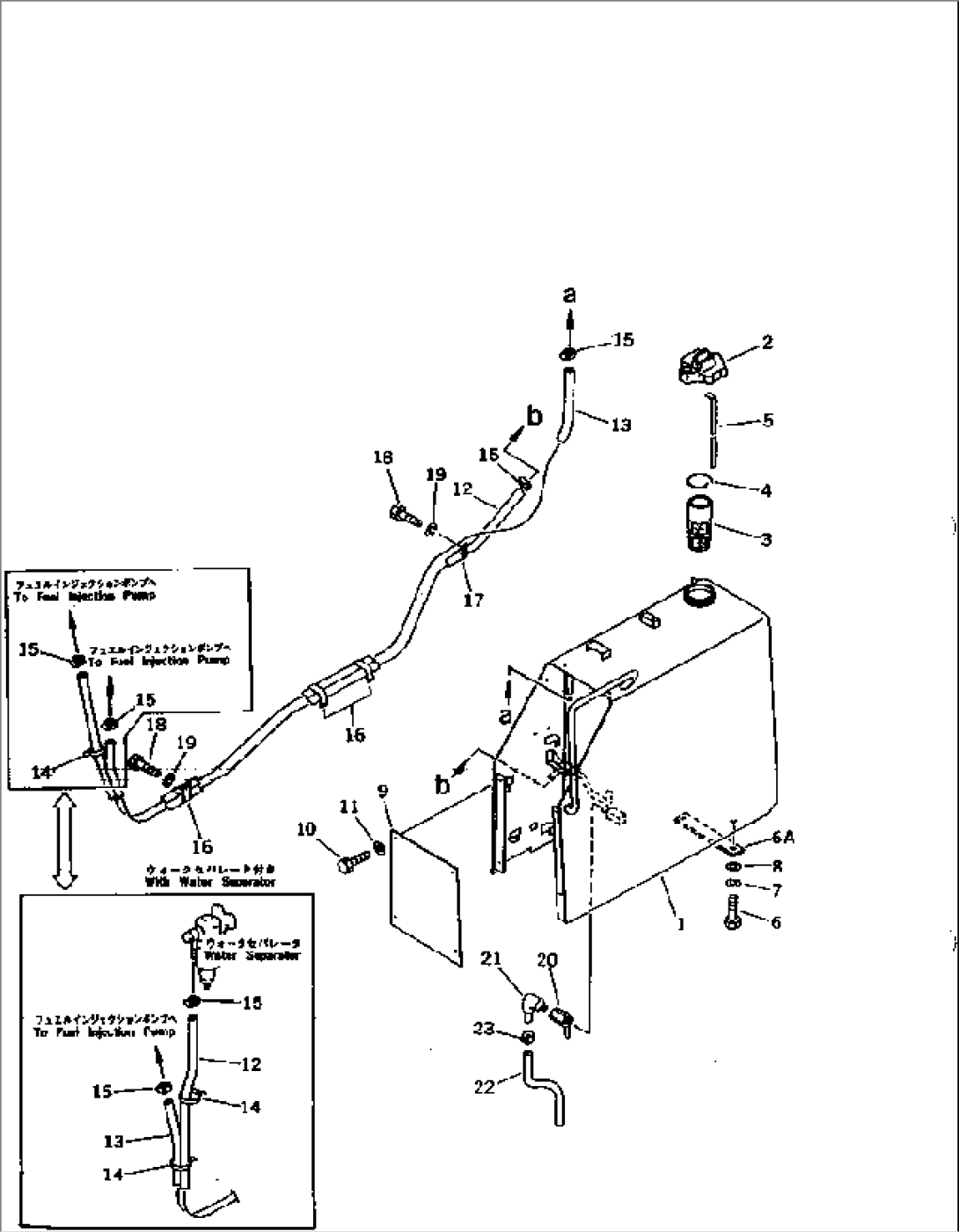

| Item | Part No. | Part Name | Qty | Serial No. |
| 103-04-00120 | FUEL TANK ASS'Y | 60001-61993 | ||
| 1 | 103-04-31211 | TANK | 61994- | |
| 1 | 103-04-31210 | TANK | 60001-61993 | |
| 2 | 07091-10920 | CAP | 60001- | |
| 2 | 07050-20922 | GASKET | 60001- | |
| 3 | 07056-16415 | STRAINER | 60001- | |
| 4 | 07057-03266 | RING,SNAP | 60001- | |
| 5 | 103-04-31120 | GAUGE | 60001- | |
| 6 | 01010-51240 | BOLT | 61994- | |
| 6 | 01010-51230 | BOLT | 60001-61993 | |
| 6A | 103-54-34450 | PLATE | 61994- | |
| 7 | 01602-21236 | WASHER,SPRING | 60001- | |
| 8 | 01643-31232 | WASHER | 60001- | |
| 9 | 103-54-34320 | PLATE | 60001- | |
| 10 | 01010-51020 | BOLT | 60001- | |
| 11 | 01643-31032 | WASHER | 60001- | |
| 12 | 07288-01016 | HOSE,(WITH WATER SEPARATOR) | 60001- | |
| 12 | 07288-01020 | HOSE | 60001- | |
| 13 | 07288-01022 | HOSE | 60001- | |
| 14 | 08034-00414 | BAND | 60001- | |
| 14 | 08034-00414 | BAND,(WITH WATER SEPARATOR) | 60001- | |
| 15 | 07281-00197 | CLAMP | 60001- | |
| 16 | 08036-03014 | CLIP | 60001- | |
| 17 | 08036-02514 | CLIP | 60001- | |
| 18 | 01010-51016 | BOLT | 60001- | |
| 19 | 01602-21030 | WASHER,SPRING | 60001- | |
| 20 | 07700-40240 | VALVE | 60001- | |
| 21 | 124-04-21250 | ELBOW | 60001- | |
| 22 | 07270-01225 | TUBE | 60001- | |
| 23 | 07285-00150 | CLIP | 60001- |
