| Item | Part No. | Part Name | Qty | Serial No. |

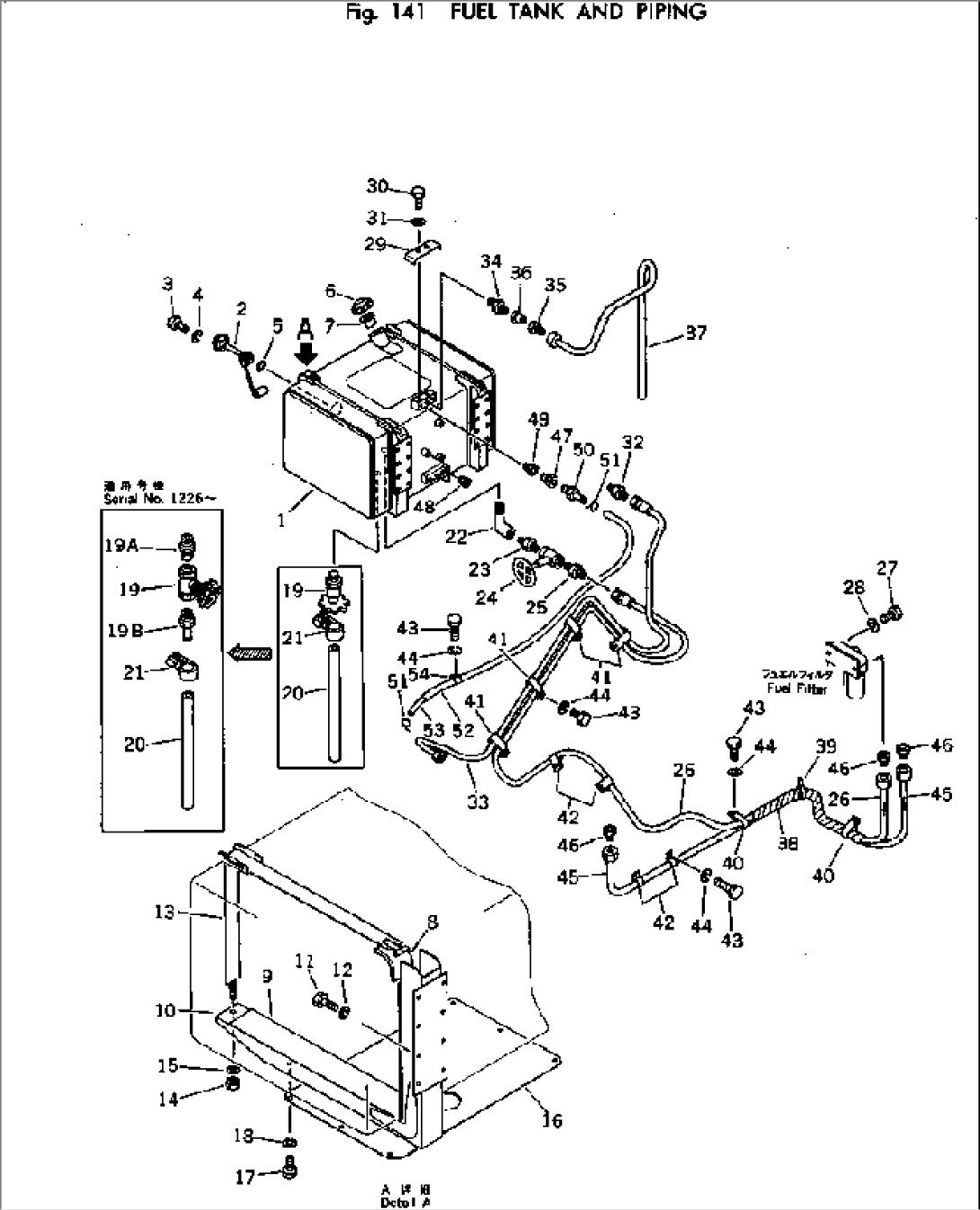

| 569-04-41001 | FUEL ASS'Y | 1102- | ||
| 1 | 569-04-41110 | TANK | 1102- | |
| 2 | 566-04-11154 | GAUGE UNIT | 1102- | |
| 3 | 01252-40620 | BOLT | 1102- | |
| 4 | 01602-20619 | WASHER | 1102- | |
| 5 | 07000-03045 | O-RING | 1102- | |
| 6 | 07050-00000 | CAP | 1102- | |
| 7 | 07056-18416 | STRAINER | 1102- | |
| 8 | 566-04-13150 | PAD | 1102- | |
| 9 | 566-04-13142 | PAD | 1102- | |
| 10 | 569-04-41120 | HANGER | 1102- | |
| 11 | 01010-51430 | BOLT | 1102- | |
| 12 | 01643-31445 | WASHER | 1102- | |
| 13 | 569-04-41130 | BAND | 1102- | |
| 14 | 01580-11210 | NUT | 1102- | |
| 15 | 01643-31232 | WASHER | 1102- | |
| 16 | 566-04-13315 | COVER | 1102- | |
| 17 | 01010-51225 | BOLT | 1102- | |
| 18 | 01602-21236 | WASHER | 1102- | |
| 19 | 07700-20502 | VALVE | 1226- | |
| 19 | 565-44-12700 | VALVE ASS'Y | 1102-1225 | |
| 19A | 07325-10200 | NIPPLE | 1226- | |
| 19B | 0996-61-9810 | NIPPLE | 1226- | |
| 20 | 07270-01015 | TUBE | 1102- | |
| 21 | 07281-10167 | CLAMP | 1102- | |
| 22 | 07327-20400 | NIPPLE | 1102- | |
| 23 | 07325-10400 | NIPPLE | 1102- | |
| 24 | 07700-60504 | VALVE | 1102- | |
| 25 | 07238-00522 | CONNECTOR | 1102- | |
| 26 | 07102-20554 | HOSE | 1102- | |
| 27 | 01010-51245 | BOLT | 1102- | |
| 28 | 01602-21236 | WASHER | 1102- | |
| 29 | 566-04-13270 | COVER | 1102- | |
| 30 | 01010-51020 | BOLT | 1102- | |
| 31 | 01602-21030 | WASHER | 1102- | |
| 32 | 566-04-11280 | NIPPLE | 1102- | |
| 33 | 02750-23320 | HOSE | 1102- | |
| 34 | 07836-00817 | CONNECTOR | 1102- | |
| 35 | 07832-00817 | NUT | 1102- | |
| 36 | 07831-00813 | SLEEVE | 1102- | |
| 37 | 07822-00811 | TUBE | 1102- | |
| 38 | 565-04-11420 | TUBE | 1102- | |
| 39 | 08034-00519 | BAND | 1102- | |
| 40 | 391-62-19250 | CLIP | 1102- | |
| 41 | 565-44-15720 | CLIP | 1102- | |
| 42 | 08036-02514 | CLIP | 1102- | |
| 43 | 01010-51016 | BOLT | 1102- | |
| 44 | 01602-21030 | WASHER | 1102- | |
| 45 | 07102-20538 | HOSE | 1102- | |
| 46 | 562-04-12110 | ADAPTER | 1102- | |
| 47 | 07326-10201 | ADAPTER | 1102- | |
| 48 | 07043-50108 | PLUG | 1102- | |
| 49 | 07326-10302 | ADAPTER | 1102- | |
| 50 | 6715-72-8820 | NIPPLE | 1102- | |
| 51 | 07280-00910 | CLAMP | 1102- | |
| 52 | 07822-00820 | TUBE | 1102- | |
| 53 | 6141-71-5340 | HOSE | 1102- | |
| 54 | 08036-21414 | CLIP | 1102- |
