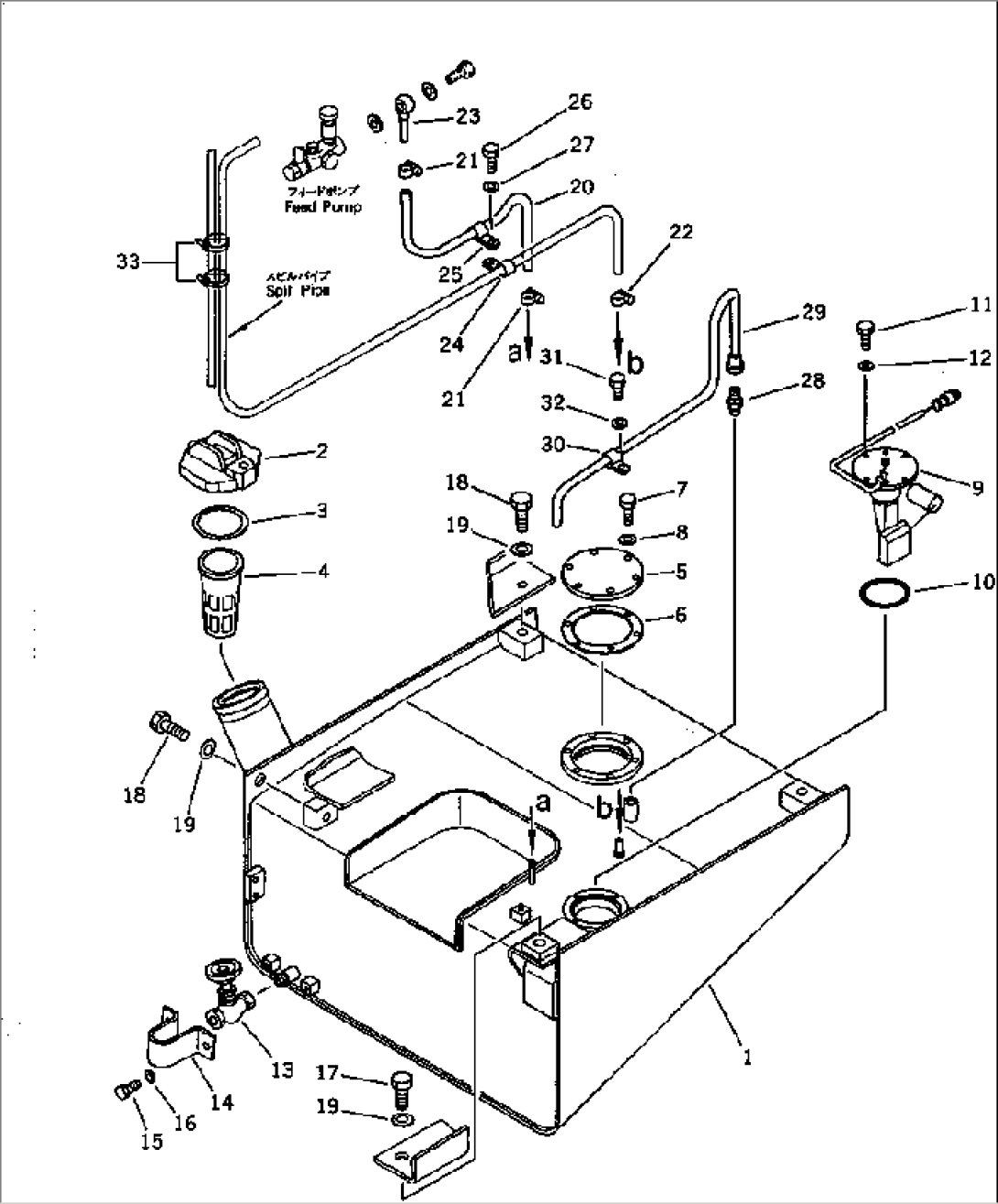

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-04-11112 | TANK,FUEL | 10001-11999 | |
| 2 | 19M-04-11220 | CAP | 10001-11999 | |
| 3 | 07050-21202 | GASKET | 10001-11999 | |
| 4 | 07056-18416 | STRAINER | 10001-@ | |
| 5 | 421-04-11181 | COVER | 10001-11999 | |
| 6 | 421-04-11191 | GASKET | 10001-11999 | |
| 7 | 01010-51025 | BOLT | 10001-@ | |
| 8 | 01643-31032 | WASHER | 10001-@ | |
| 9 | (416-04-10120) | SENSOR,FUEL LEVEL | 10001-@ | |
| 10 | 419-04-10140 | GASKET | 10001-@ | |
| 11 | 01220-40512 | SCREW | 10001-@ | |
| 12 | 01601-20513 | WASHER,SPRING | 10001-@ | |
| 13 | 41A-04-11110 | COVER | 10001-@ | |
| 14 | 07000-02085 | O-RING | 10001-@ | |
| 15 | 01010-51020 | BOLT | 10001-@ | |
| 16 | 01643-31032 | WASHER | 10001-@ | |
| 17 | 416-04-10130 | VALVE | 10001-@ | |
| 18 | 419-04-11120 | COVER | 10001-@ | |
| 19 | 01010-50820 | BOLT | 10001-@ | |
| 20 | 01643-30823 | WASHER | 10001-@ | |
| 21 | 01010-32050 | BOLT | 10001-@ | |
| 22 | 01010-32045 | BOLT | 10001-@ | |
| 22A | 01010-32040 | BOLT | 10308-@ | |
| 22A | 01010-32045 | BOLT | 10001-10307 | |
| 23 | 01643-32060 | WASHER | 10001-@ | |
| 24 | 07270-21050 | TUBE | 10001-@ | |
| 25 | 07281-00197 | CLAMP | 10001-@ | |
| 26 | 07280-00810 | CLAMP | 10001-@ | |
| 27 | 419-04-10130 | JOINT | 10001-@ | |
| 28 | 08036-01414 | CLIP | 10001-@ | |
| 29 | 424-06-12720 | CLIP | 10001-@ | |
| 30 | 01010-51016 | BOLT | 10001-@ | |
| 31 | 01643-31032 | WASHER | 10001-@ | |
| 32 | 07214-51013 | CONNECTOR | 10001-@ | |
| 33 | 418-04-11120 | TUBE | 10001-11999 | |
| 34 | 424-04-11120 | CLIP | 10001-@ | |
| 35 | 01010-31016 | BOLT | 10001-@ | |
| 36 | 01643-31032 | WASHER | 10001-@ | |
| 37 | 08034-00519 | BAND | 10001-@ |
