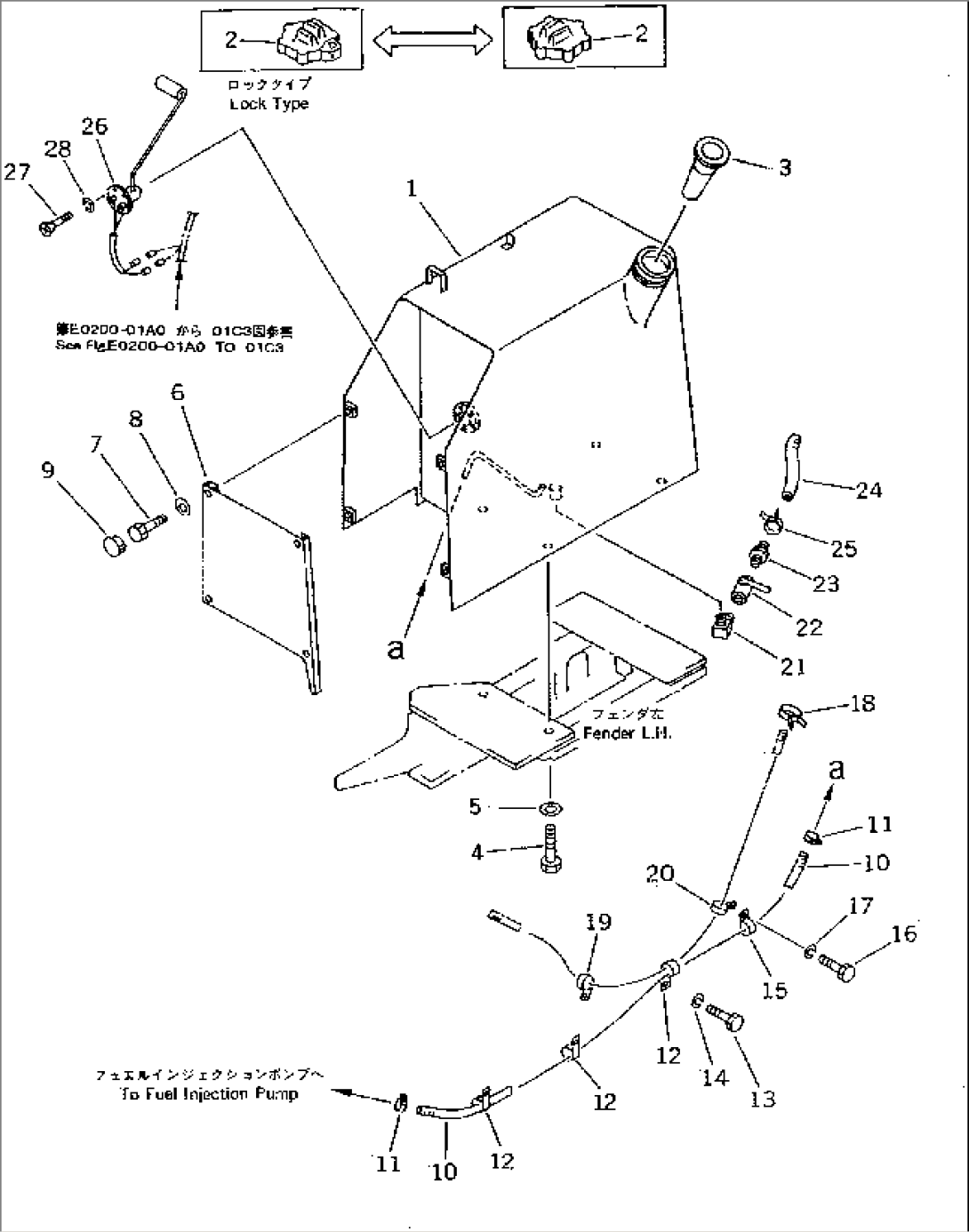

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 114-04-49181 | TANK | 45785-47616 | |
| 1 | \0\114-04-49180 | TANK | 45001-45784 | |
| 2 | 07050-20900 | CAP | 45001-@ | |
| 2 | 07091-10900 | CAP,(LOCK TYPE) | 45001-@ | |
| 2 | 07050-20902 | GASKET | 45001-@ | |
| 3 | 07056-16415 | STRAINER | 45001-@ | |
| 4 | 01010-81440 | BOLT | 45001-@ | |
| 5 | 01643-31445 | WASHER | 45001-@ | |
| 6 | 114-54-43230 | PLATE,R.H. | 45001-@ | |
| 7 | 01252-30825 | BOLT | 45001-@ | |
| 8 | 01643-30823 | WASHER | 45001-@ | |
| 9 | 114-54-43260 | PLUG | 45001-@ | |
| 10 | 07288-01018 | HOSE | 45001-47616 | |
| 11 | 07281-00197 | CLAMP | 45001-47616 | |
| 12 | 08036-02514 | CLIP | 45001-47616 | |
| 13 | 01010-81020 | BOLT | 45001-47616 | |
| 14 | 01602-21030 | WASHER,SPRING | 45001-47616 | |
| 15 | 08036-02514 | CLIP | 45001-47616 | |
| 16 | 01010-81025 | BOLT | 45001-47616 | |
| 17 | 01602-21030 | WASHER,SPRING | 45001-47616 | |
| 18 | 07285-00100 | CLIP | 45001-47616 | |
| 19 | 08036-01014 | CLIP | 45001-47616 | |
| 20 | 04434-51208 | CLIP | 45001-47616 | |
| 21 | 20D-68-11670 | ELBOW | 45001-@ | |
| 22 | 07700-40240 | VALVE | 45001-@ | |
| 23 | 113-04-22150 | NIPPLE | 45001-@ | |
| 24 | 07270-01265 | TUBE | 45001-@ | |
| 25 | 07285-00150 | CLIP | 45001-@ | |
| 26 | 20T-06-71381 | SENSOR,FUEL LEVEL | 45001-47616 | |
| 27 | 01220-40510 | SCREW | 45001-@ | |
| 28 | 01601-20513 | WASHER,SPRING | 45001-@ |
