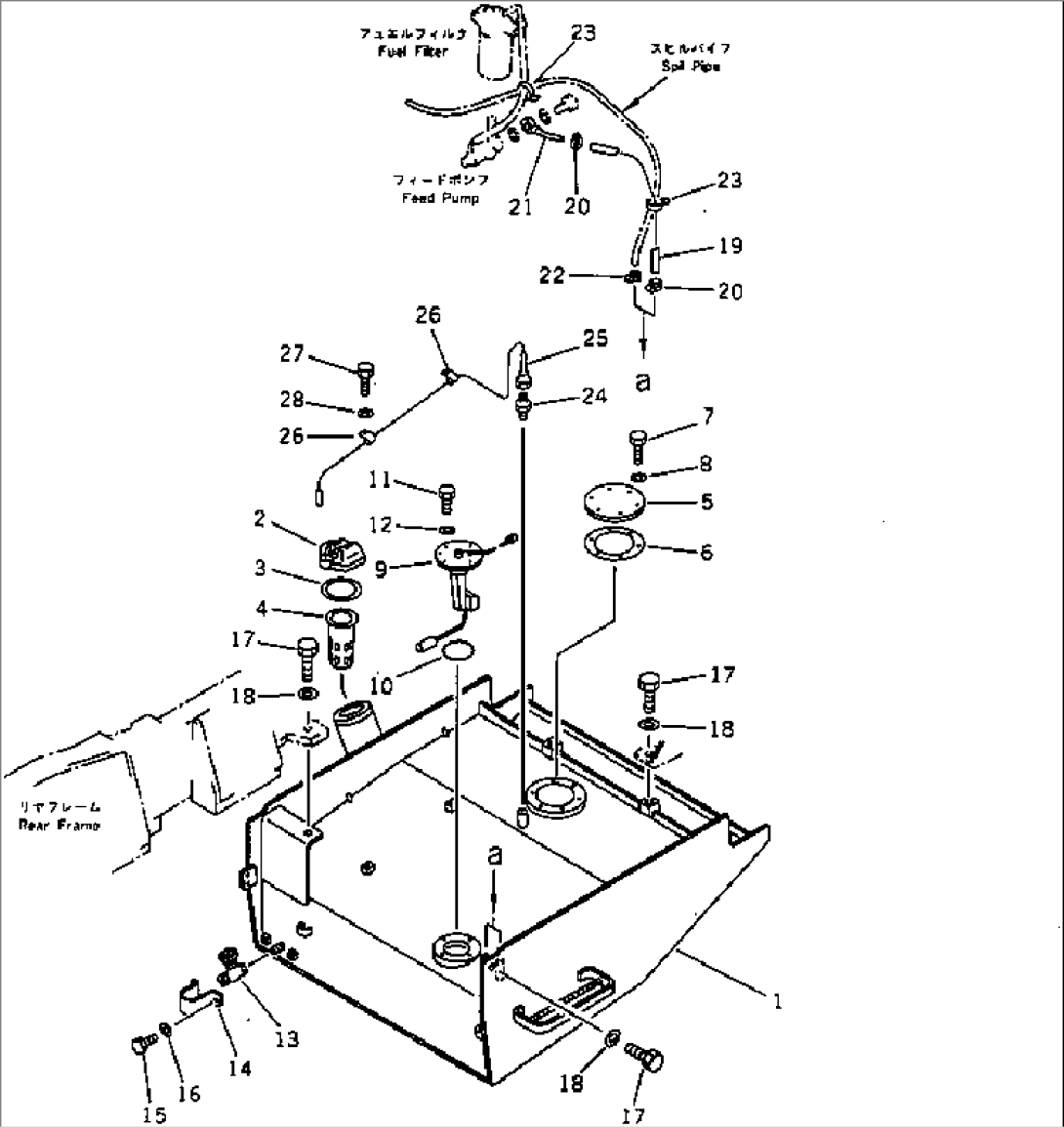

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-04-11311 | TANK | 10001-19999 | |
| 2 | 19M-04-11220 | CAP | 10001-19999 | |
| 3 | 07050-21202 | GASKET | 10001-19999 | |
| 4 | 07056-18416 | STRAINER | 10001-@ | |
| 5 | 421-04-11181 | COVER | 10001-19999 | |
| 6 | 421-04-11191 | GASKET | 10001-19999 | |
| 7 | 01010-51025 | BOLT | 10001-19999 | |
| 8 | 01643-31032 | WASHER | 10001-19999 | |
| 9 | (7861-91-4720) | SENSOR,FUEL LEVEL | 10001-19999 | |
| 10 | 07000-02085 | O-RING | 10001-@ | |
| 11 | 01010-51016 | BOLT | 10001-19999 | |
| 12 | 01643-31032 | WASHER | 10001-19999 | |
| 13 | 416-04-10130 | VALVE | 10139-19999 | |
| 13 | \0\07700-60504 | VALVE | 10001-10138 | |
| 14 | 421-04-11170 | COVER | 10001-19999 | |
| 15 | 01010-50820 | BOLT | 10001-19999 | |
| 16 | 01643-30823 | WASHER | 10001-19999 | |
| 17 | 01010-32450 | BOLT | 10001-19999 | |
| 18 | 01643-32460 | WASHER | 10001-19999 | |
| 19 | 07270-21048 | TUBE | 10001-19999 | |
| 20 | 07281-00197 | CLAMP | 10001-@ | |
| 21 | 424-04-11130 | TUBE | 10001-@ | |
| 22 | 07280-00910 | CLAMP | 10001-@ | |
| 23 | 08034-00414 | BAND | 10001-19999 | |
| 24 | 07214-51013 | CONNECTOR | 10001-19999 | |
| 25 | 424-04-11110 | TUBE | 10001-19999 | |
| 26 | 424-04-11120 | CLIP | 10001-@ | |
| 27 | 01010-51020 | BOLT | 10001-19999 | |
| 28 | 01643-31032 | WASHER | 10001-19999 |
