| Item | Part No. | Part Name | Qty | Serial No. |

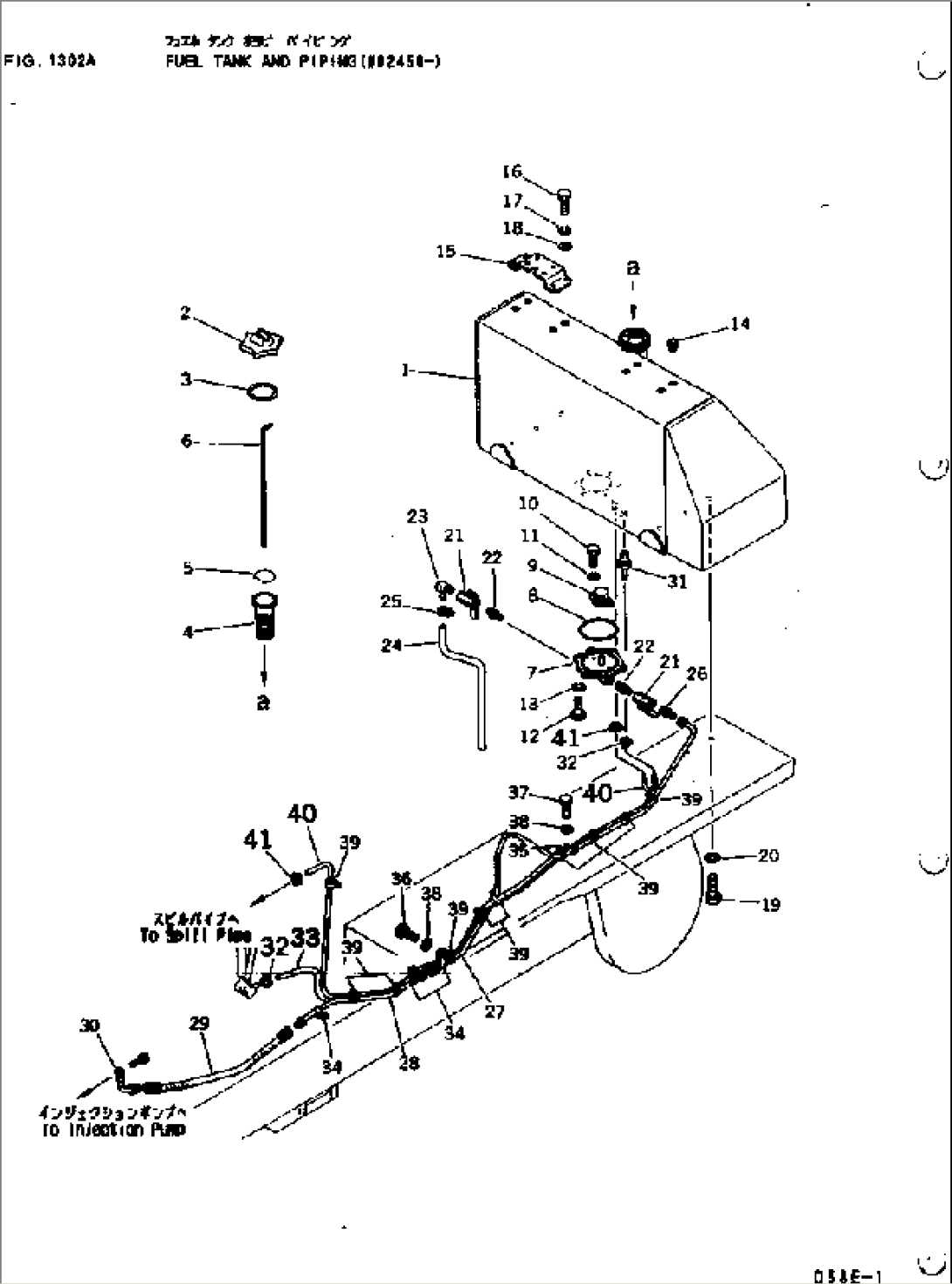

| 130-04-00401 | FUEL TANK ASS'Y | 82458- | ||
| 1 | \6\ | TANK | 82458- | |
| 2 | 07050-41200 | CAP | 81285- | |
| 3 | 07050-21202 | GASKET | 81285- | |
| 4 | 07056-18416 | STRAINER | 81285- | |
| 5 | 07057-04087 | RING,SNAP | 81285- | |
| 6 | 131-04-61121 | GAUGE | 81285- | |
| 7 | 125-04-13110 | FLANGE | 81285- | |
| 8 | 07000-02135 | O-RING | 81285- | |
| 9 | 131-04-43130 | STRAINER | 81285- | |
| 10 | 01010-80812 | BOLT | 81285- | |
| 11 | 01602-20825 | WASHER,SPRING | 81285- | |
| 12 | 01010-81025 | BOLT | 81285- | |
| 13 | 01602-21030 | WASHER,SPRING | 81285- | |
| 14 | 07049-01012 | PLUG | 81285- | |
| 15 | 120-04-31141 | BRACKET | 81285- | |
| 16 | 01010-81025 | BOLT | 81285- | |
| 17 | 01602-21030 | WASHER,SPRING | 81285- | |
| 18 | 01643-31032 | WASHER | 81285- | |
| 19 | 01010-81435 | BOLT | 81285- | |
| 20 | 01602-21442 | WASHER,SPRING | 81285- | |
| 21 | 07700-40460 | VALVE | 81285- | |
| 22 | 131-04-54120 | NIPPLE | 81285- | |
| 23 | 131-04-54130 | ELBOW | 81285- | |
| 24 | 07270-01260 | TUBE | 81285- | |
| 25 | 07280-01620 | CLAMP | 81285- | |
| 26 | 131-04-54140 | NIPPLE | 81285- | |
| 27 | 134-04-32110 | TUBE | 81285- | |
| 28 | 130-04-71221 | TUBE | 81285- | |
| 29 | 07102-20204 | HOSE | 81285- | |
| 30 | 130-04-71240 | TUBE | 81285- | |
| 31 | 130-04-71230 | NIPPLE | 81285- | |
| 32 | 07281-00197 | CLAMP | 82458- | |
| 33 | 07288-01023 | HOSE | 81285- | |
| 34 | 04434-51210 | CLIP | 82467- | |
| 34 | 130-04-11260 | CLIP | 81285-82466 | |
| 35 | 135-04-32140 | CLIP | 81285- | |
| 36 | 01010-81016 | BOLT | 81285- | |
| 37 | 01010-81030 | BOLT | 81285- | |
| 38 | 01602-21030 | WASHER,SPRING | 81285- | |
| 39 | 08034-00519 | BAND | 81285- | |
| 40 | 07288-00529 | HOSE | 82458- | |
| 41 | 07280-01010 | CLAMP | 82458- |
