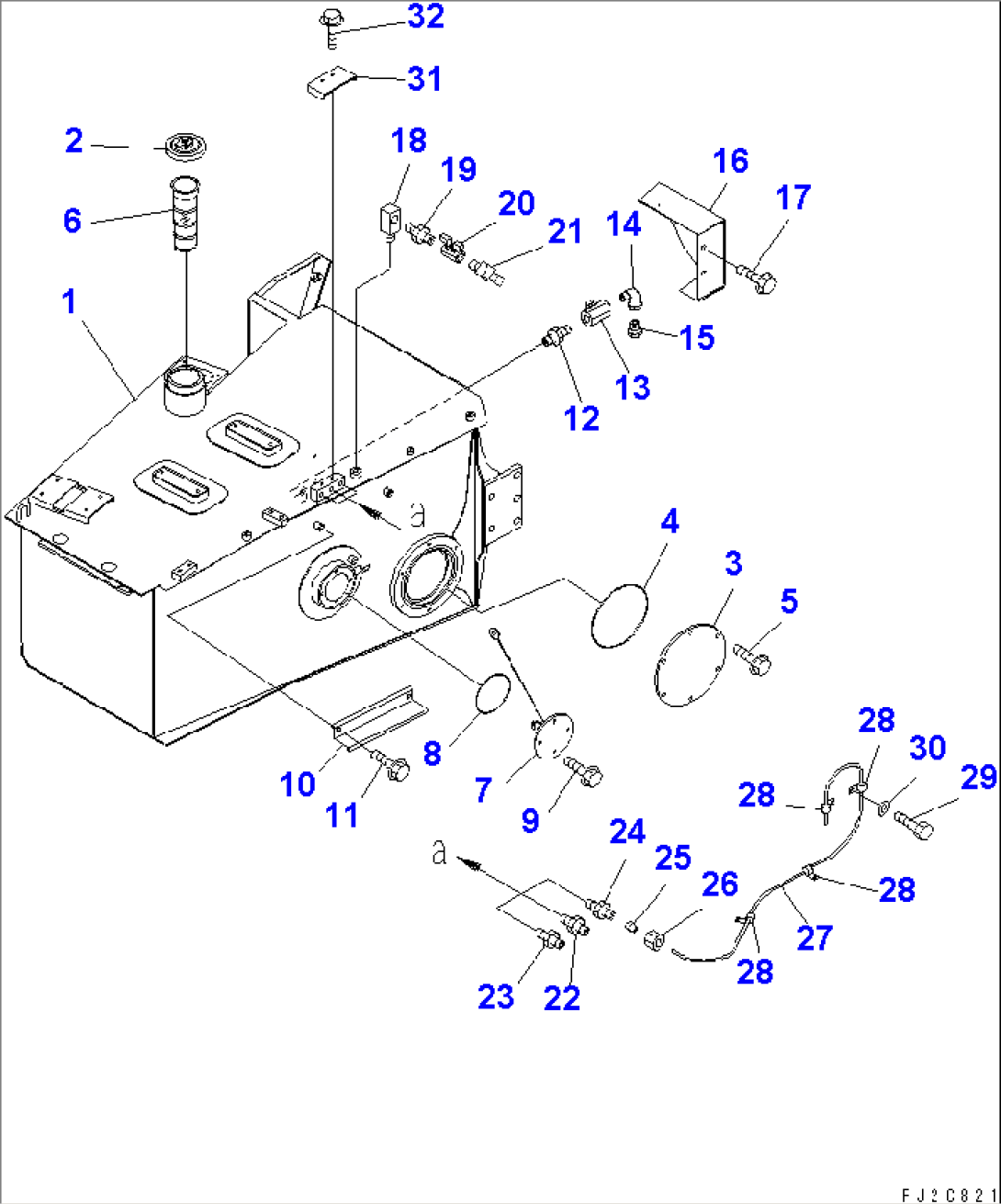

| Item | Part No. | Part Name | Qty | Serial No. |
| 56B-84-11940 | TANK ASS'Y | 1001- | ||
| 1 | 56B-84-11930 | TANK | 1001- | |
| 2 | 20Y-04-11160 | CAP | 1001- | |
| 3 | 428-04-11120 | COVER | 1001- | |
| 4 | 07000-15200 | O-RING | 1002- | |
| 07000-05200 | O-RING | 1001-1001 | ||
| 5 | 01435-01025 | BOLT | 1001- | |
| 6 | 22U-04-21241 | STRAINER ASS'Y | 1043- | |
| 22U-04-21240 | STRAINER ASS'Y | 1001-1042 | ||
| 7 | 7861-93-4930 | SENSOR,FUEL LEVEL | 1001- | |
| 8 | 07000-12085 | O-RING | 1001- | |
| 9 | 01435-01016 | BOLT | 1001- | |
| 10 | 56B-04-11160 | BRACKET | 1001- | |
| 11 | 01435-01016 | BOLT | 1001- | |
| 12 | 07325-00200 | NIPPLE | 1001- | |
| 13 | 363-04-11130 | VALVE | 1001- | |
| 14 | 281-43-18250 | ELBOW | 1001- | |
| 15 | 56B-04-11190 | ADAPTER | 1001- | |
| 16 | 56C-04-11510 | COVER | 1001- | |
| 17 | 01435-01020 | BOLT | 1001- | |
| 18 | 234-885-3320 | ELBOW | 1001- | |
| 19 | 07325-10600 | NIPPLE | 1001- | |
| 20 | 561-04-61580 | VALVE | 1001- | |
| 21 | 22R-62-13260 | ELBOW | 1001- | |
| 22 | 07238-10315 | CONNECTOR | 1001- | |
| 23 | 07238-10313 | CONNECTOR | 1001- | |
| 24 | 07836-00617 | CONNECTOR | 1001- | |
| 25 | 07831-00612 | SLEEVE | 1001- | |
| 26 | 07832-00614 | NUT | 1001- | |
| 27 | 07822-00612 | TUBE | 1001- | |
| 28 | 04434-51010 | CLIP | 1001- | |
| 29 | 01010-81020 | BOLT | 1001- | |
| 30 | 01643-31032 | WASHER | 1001- | |
| 31 | 566-04-13270 | COVER | 1001- | |
| 32 | 01435-01020 | BOLT | 1001- |
