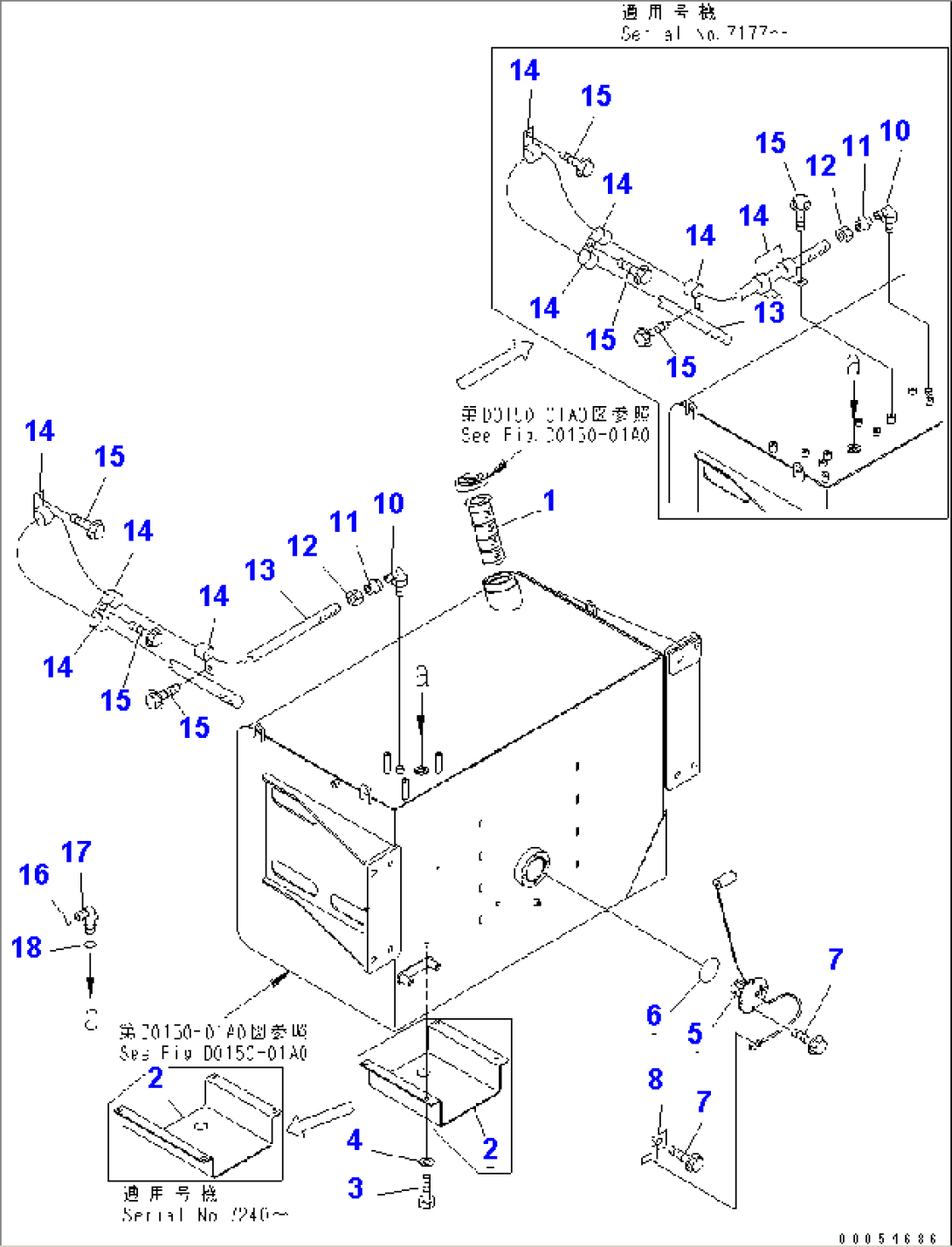

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07056-18416 | STRAINER | 7111- | |
| 2 | 569-04-81630 | COVER | 7240- | |
| 2 | 569-04-83312 | COVER | 7111-7239 | |
| 3 | 01010-81225 | BOLT | 7111- | |
| 4 | 01643-31232 | WASHER | 7111- | |
| 5 | 569-06-83410 | SENSOR,FUEL LEVEL | 7111- | |
| 6 | 07000-12085 | O-RING | 7111- | |
| 7 | 01435-01016 | BOLT | 7111- | |
| 8 | 08193-21012 | CLIP | 7111- | |
| 10 | 07834-00817 | ELBOW | 7111- | |
| 11 | 07831-00813 | SLEEVE | 7111- | |
| 12 | 07832-00817 | NUT | 7111- | |
| 13 | 07822-00820 | TUBE | 7177- | |
| 13 | \0\07822-00816 | TUBE | 7111-7176 | |
| 14 | 08036-01214 | CLIP | 7177- | |
| 14 | 08036-01214 | CLIP | 7111-7176 | |
| 15 | 01435-01020 | BOLT | 7111- | |
| 16 | 02896-11018 | O-RING | 7111- | |
| 17 | 02782-10628 | ELBOW | 7111- | |
| 18 | 07002-22434 | O-RING | 7111- |
