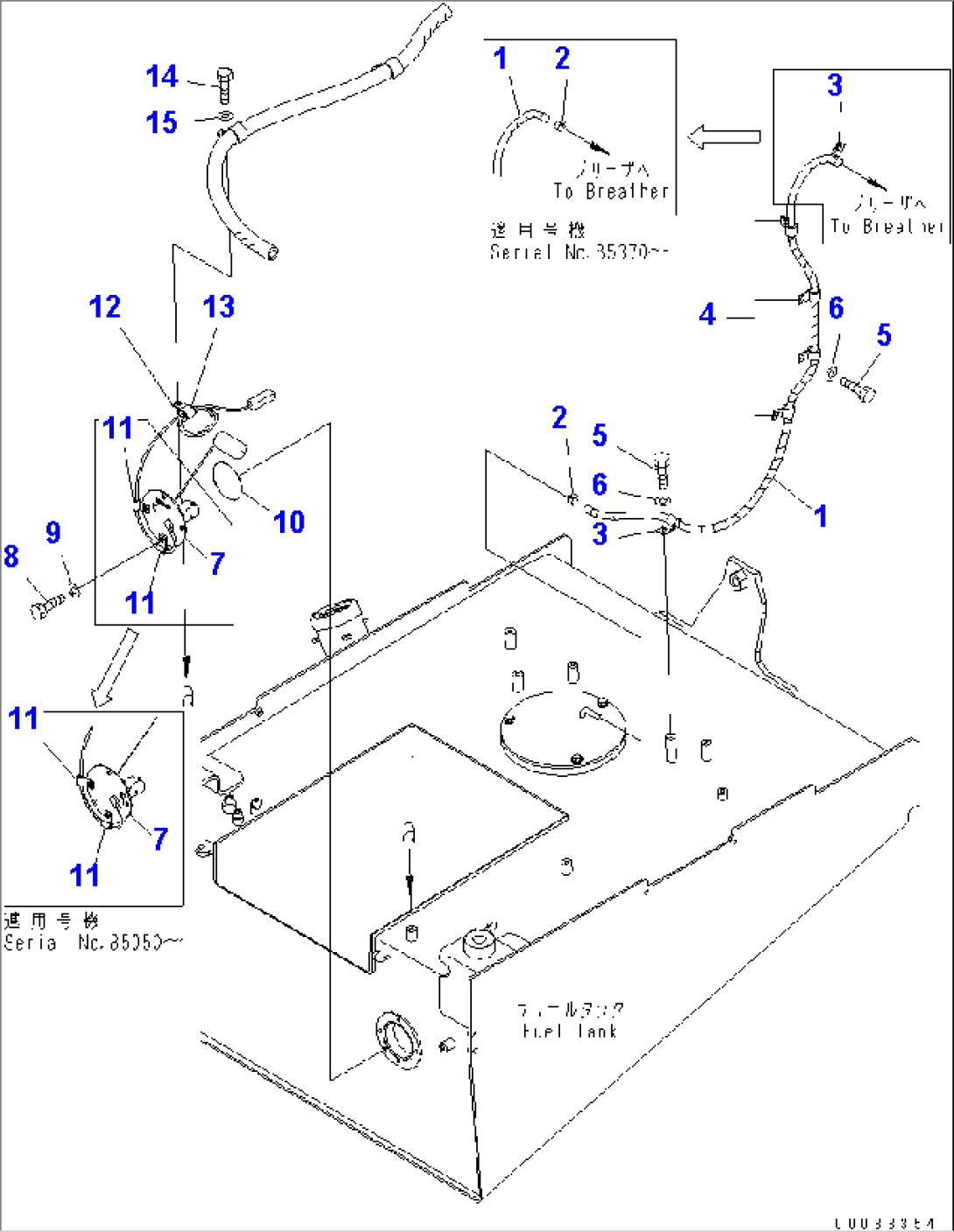

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-04-41280 | HOSE, 1600MM | 85370- | |
| 1 | 421-04-41190 | HOSE, 1500MM | 85001-85369 | |
| 2 | 07285-00130 | CLIP | 85370- | |
| 2 | 07285-00130 | CLIP | 85001-85369 | |
| 3 | 04434-51510 | CLIP | 85370- | |
| 3 | 04434-51510 | CLIP | 85001-85369 | |
| 4 | 04434-51610 | CLIP | 85001- | |
| 5 | 01010-81020 | BOLT | 85370- | |
| 5 | 01010-81020 | BOLT | 85001-85369 | |
| 6 | 01643-31032 | WASHER | 85370- | |
| 6 | 01643-31032 | WASHER | 85001-85369 | |
| 7 | 7861-93-4832 | SENSOR | 85050- | |
| 7 | (\2\7861-93-4831) | SENSOR | (85050-90142) | |
| 7 | \0\7861-93-4830 | SENSOR | 85001-85049 | |
| 8 | 01010-81020 | BOLT | 85001- | |
| 9 | 01643-31032 | WASHER | 85001- | |
| 10 | 07000-12085 | O-RING | 85001- | |
| 11 | 04434-50610 | CLIP | 85001- | |
| 12 | 04434-51710 | CLIP | 85001- | |
| 13 | 07095-20211 | CUSHION | 85001- | |
| 14 | 01010-81020 | BOLT | 85001-85379 | |
| 15 | 01643-31032 | WASHER | 85001-85379 |
