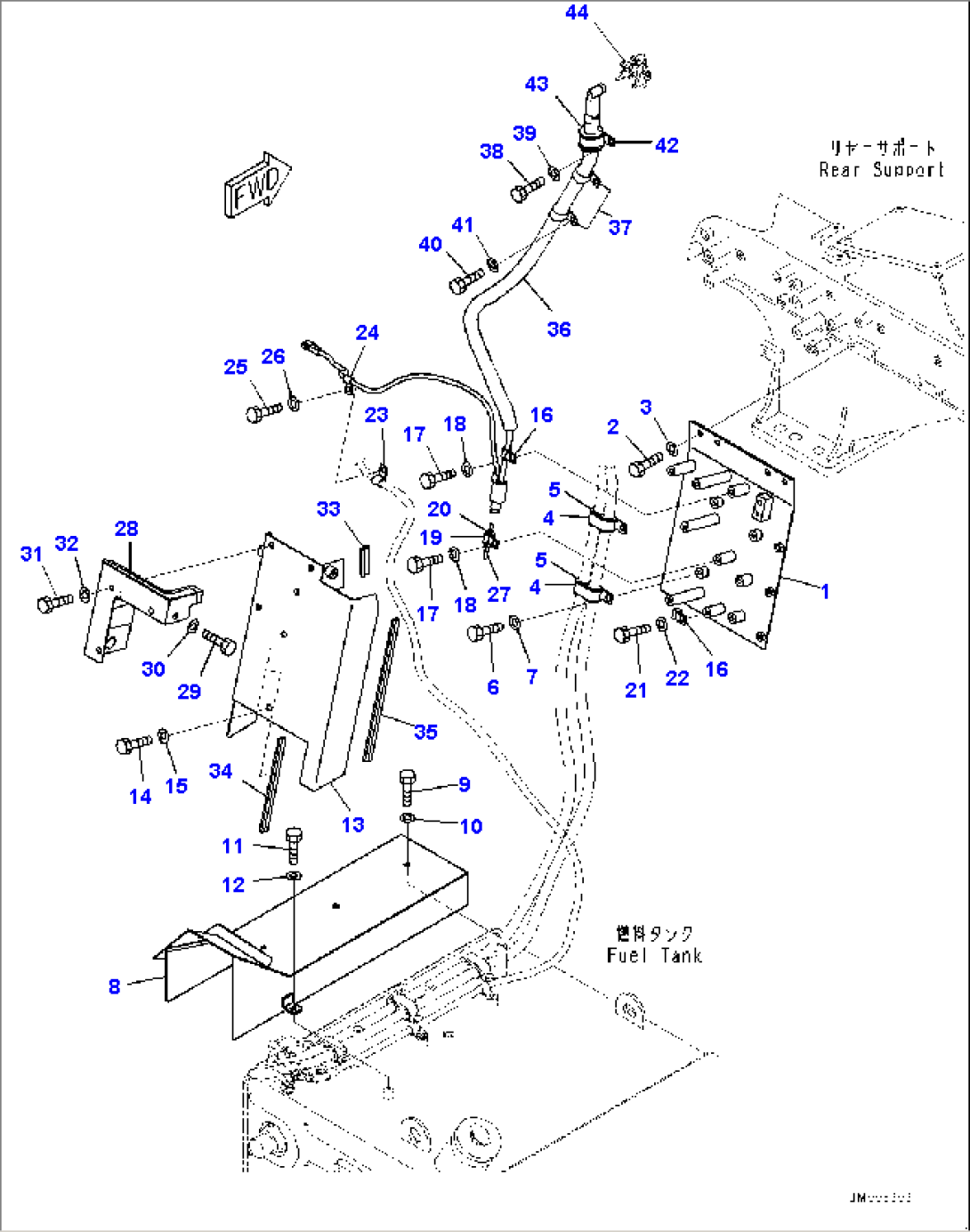

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-02-8M951 | Bracket | 50001- | |
| 2 | 01010-81225 | Bolt | 50001- | |
| 3 | 01643-31232 | Washer | 50001- | |
| 4 | 569-06-61980 | Clip | 50001- | |
| 5 | 07095-20523 | Cushion | 50001- | |
| 6 | 01010-81220 | Bolt | 50001- | |
| 7 | 01643-31232 | Washer | 50001- | |
| 8 | 566-02-8M931 | Cover | 50001- | |
| 9 | 01010-81225 | Bolt | 50001- | |
| 10 | 01643-31232 | Washer | 50001- | |
| 11 | 01010-81220 | Bolt | 50001- | |
| 12 | 01643-31232 | Washer | 50001- | |
| 13 | 566-02-8M941 | Cover | 50001- | |
| 14 | 01010-81225 | Bolt | 50001- | |
| 15 | 01643-31232 | Washer | 50001- | |
| 16 | 04434-51312 | Clip | 50001- | |
| 17 | 01010-81225 | Bolt | 50001- | |
| 18 | 01643-31232 | Washer | 50001- | |
| 19 | 04434-51712 | Clip | 50001- | |
| 20 | 07095-20211 | Cushion | 50001- | |
| 21 | 01010-81225 | Bolt | 50001- | |
| 22 | 01643-31232 | Washer | 50001- | |
| 23 | 04434-51612 | Clip | 50001- | |
| 24 | 04434-51012 | Clip | 50001- | |
| 25 | 01010-81225 | Bolt | 50001- | |
| 26 | 01643-31232 | Washer | 50001- | |
| 27 | 2A6-01-12551 | Joint | 50001- | |
| 28 | 566-02-8M431 | Sheet Assembly | 50001- | |
| 29 | 01010-81220 | Bolt | 50001- | |
| 30 | 01643-31232 | Washer | 50001- | |
| 31 | 01010-81225 | Bolt | 50001- | |
| 32 | 01643-31232 | Washer | 50001- | |
| 33 | 566-02-8M390 | Seal | 50001- | |
| 34 | 566-02-8M410 | Seal | 50001- | |
| 35 | 566-02-8M420 | Seal | 50001- | |
| 36 | 566-02-8L101 | Hose Assembly | 50001- | |
| 37 | 04434-53212 | Clip | 50001- | |
| 38 | 01010-81220 | Bolt | 50001- | |
| 39 | 01643-31232 | Washer | 50001- | |
| 40 | 01010-81225 | Bolt | 50001- | |
| 41 | 01643-31232 | Washer | 50001- | |
| 42 | 20Y-62-17930 | Clip | 50001- | |
| 43 | 6261-51-5751 | Cushion | 50001- | |
| 44 | (6540-71-1110) | Injector | - |
