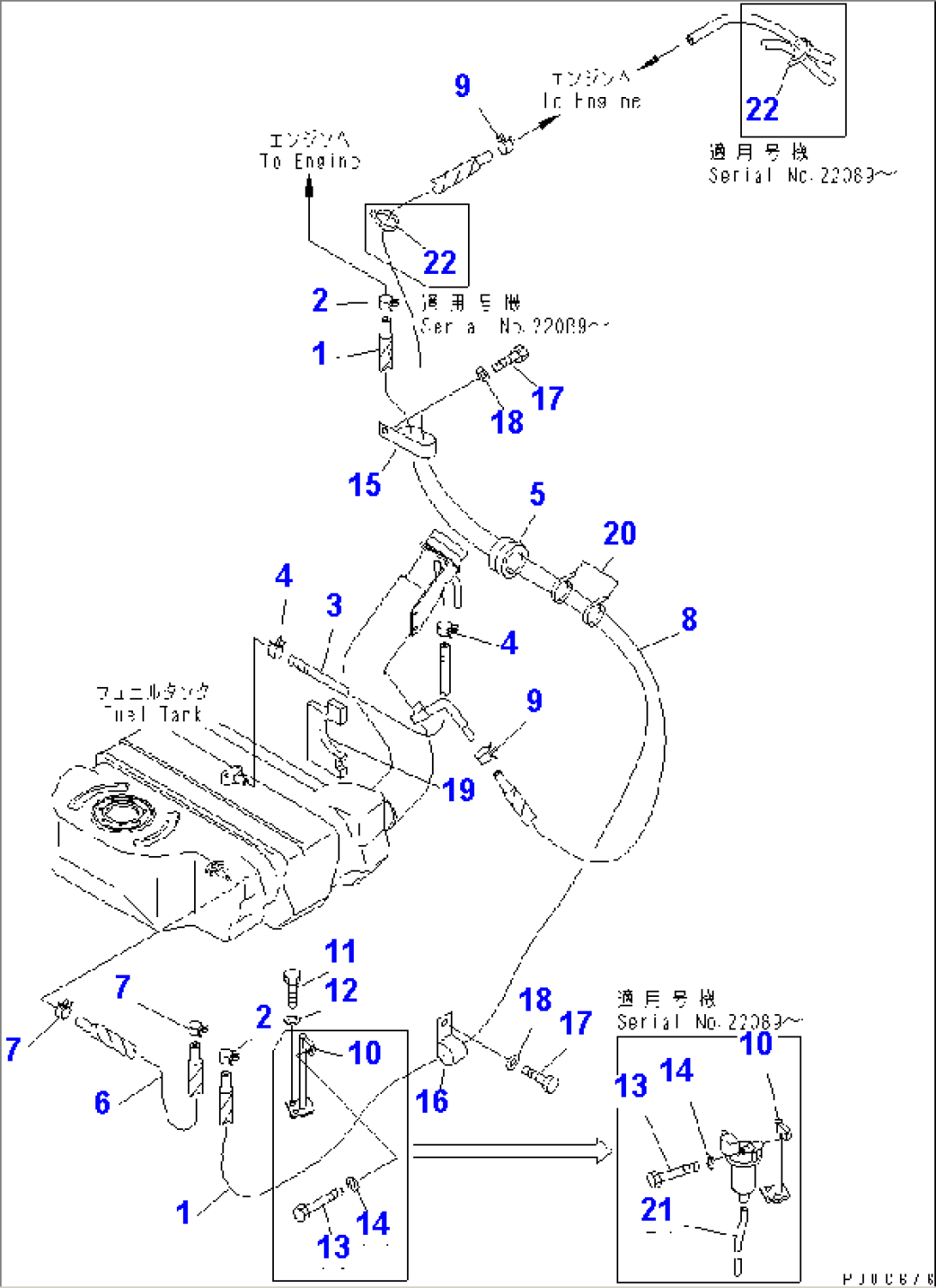

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20U-04-41331 | HOSE | 20001- | |
| 07288-20721 | HOSE | 20001- | ||
| 08017-21520 | CONDUIT | 20001- | ||
| 2 | 11Y-09-11120 | CLIP | 20001- | |
| 3 | 20U-04-41351 | HOSE | 20001- | |
| 4 | 11Y-09-11160 | CLIP | 20001- | |
| 5 | 201-06-61370 | GROMMET | 20001- | |
| 6 | 20U-04-41321 | HOSE | 20001- | |
| 08017-21905 | CONDUIT | 20001- | ||
| 07288-21006 | HOSE | 20001- | ||
| 7 | 11Y-09-11140 | CLIP | 20001- | |
| 8 | 20U-04-41341 | HOSE | 20001- | |
| 07288-20713 | HOSE | 20001- | ||
| 08017-21512 | CONDUIT | 20001- | ||
| 9 | 11Y-09-11120 | CLIP | 20001- | |
| 10 | 20U-04-41412 | BRACKET | 22089- | |
| 20U-04-41411 | BRACKET | 20001-22088 | ||
| 11 | 01010-81225 | BOLT | 20001- | |
| 12 | 01643-31232 | WASHER | 20001- | |
| 13 | 01010-80880 | BOLT | 22089- | |
| 01010-80870 | BOLT | 20001-22088 | ||
| 14 | 01643-30823 | WASHER | 20001- | |
| 15 | 04435-51810 | CLIP | 20001- | |
| 16 | 04434-51810 | CLIP | 20001- | |
| 17 | 01010-81020 | BOLT | 20001- | |
| 18 | 01643-31032 | WASHER | 20001- | |
| 19 | 20U-04-41441 | SHEET | 20001- | |
| 20 | 08034-20536 | BAND | 20001- | |
| 21 | 07270-00607 | TUBE | 22089- | |
| 22 | 08034-40521 | BAND | 22089- |
