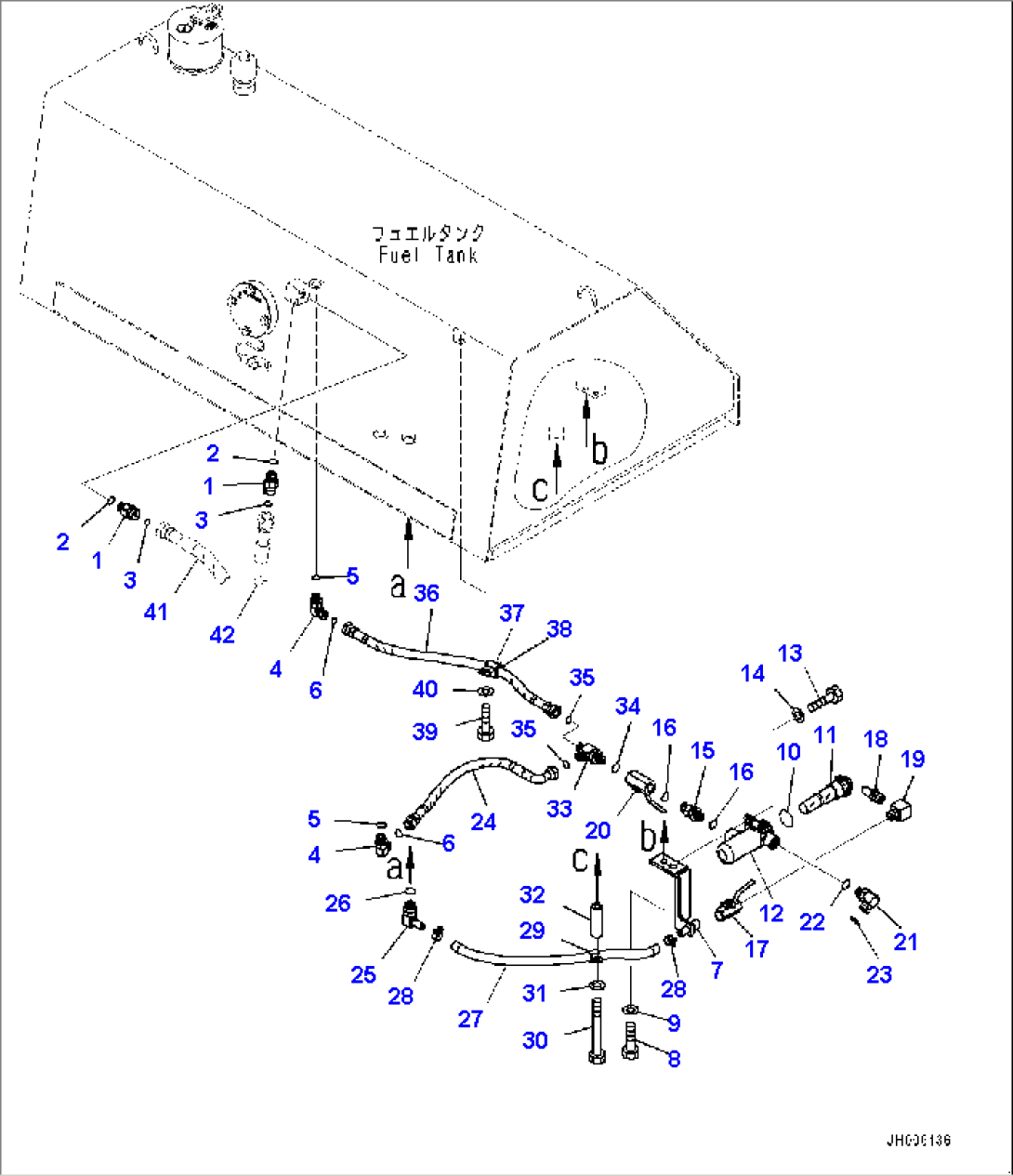

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-00311 | Union | 1006- | |
| 2 | 07002-11423 | O-ring | 1006- | |
| 3 | 02896-11009 | O-ring | 1006- | |
| 4 | 02782-10420 | Elbow | 1006- | |
| 5 | 07002-11823 | O-ring | 1006- | |
| 6 | 02896-11012 | O-ring | 1006- | |
| 7 | 154-04-75152 | Joint | 1006- | |
| 8 | 01010-81230 | Bolt | 1006- | |
| 9 | 01643-31232 | Washer | 1006- | |
| 9 | 17A-04-41190 | Filter Assembly | 1006- | |
| 10 | 07002-14234 | O-ring | 1006- | |
| 11 | 07058-00010 | Element Assembly | 1006- | |
| 12 | 14X-04-21660 | Case | 1006- | |
| 13 | 01010-80830 | Bolt | 1006- | |
| 14 | 01643-30823 | Washer | 1006- | |
| 15 | 17A-04-41331 | Connector | 1006- | |
| 16 | 07002-12034 | O-ring | 1006- | |
| 17 | 07700-40460 | Valve, Fuel Drain | 1006- | |
| 18 | 154-04-75720 | Nipple | 1006- | |
| 19 | 565-44-15380 | Elbow | 1006- | |
| 20 | 14X-04-21620 | Valve | 1006- | |
| 21 | 02782-10422 | Elbow | 1006- | |
| 22 | 07002-12034 | O-ring | 1006- | |
| 23 | 02896-11015 | O-ring | 1006- | |
| 24 | 02762-00404 | Hose, Face Seal Type | 1006- | |
| 25 | 154-04-75290 | Elbow | 1006- | |
| 26 | 07002-12034 | O-ring | 1006- | |
| 27 | 154-969-7350 | Hose | 1006- | |
| 28 | 07281-00197 | Clamp | 1006- | |
| 29 | 04434-52112 | Clip | 1006- | |
| 30 | 01011-81210 | Bolt | 1006- | |
| 31 | 01643-31232 | Washer | 1006- | |
| 32 | 581-60-17860 | Spacer | 1006- | |
| 33 | 21N-64-36690 | Tee | 1006- | |
| 34 | 07002-12034 | O-ring | 1006- | |
| 35 | 02896-11012 | O-ring | 1006- | |
| 36 | 02762-00406 | Hose | 1006- | |
| 37 | 04434-52712 | Clip | 1006- | |
| 38 | 07095-20420 | Cushion | 1006- | |
| 39 | 01010-81230 | Bolt | 1006- | |
| 40 | 01643-31232 | Washer | 1006- | |
| 41 | (154-04-71370) | Hose | - | |
| 42 | (02762-00331) | Hose, Face Seal Type | - |
