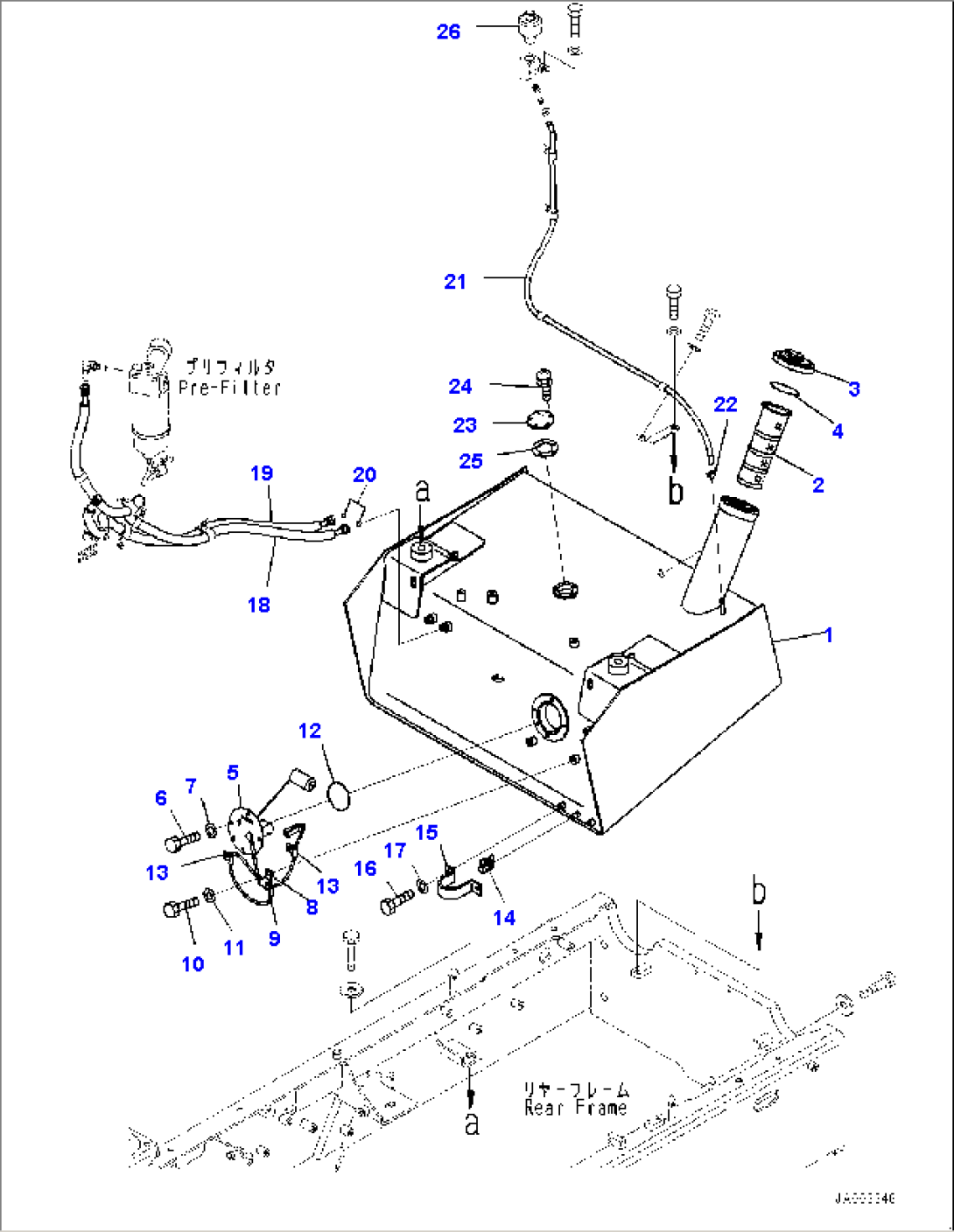

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-04-41110 | Fuel, Tank | C10001- | |
| 2 | 17M-04-41190 | Strainer | C10001- | |
| 3 | 423-04-11362 | Cap | C10001- | |
| 4 | 417-04-21230 | Packing | C10001- | |
| 5 | 7861-93-4831 | Sensor | C10001- | |
| 6 | 01010-81020 | Bolt | C10001- | |
| 7 | 01643-31032 | Washer | C10001- | |
| 8 | 04434-51710 | Clip | C10001- | |
| 9 | 07095-20211 | Cushion | C10001- | |
| 10 | 01010-81020 | Bolt | C10001- | |
| 11 | 01643-31032 | Washer | C10001- | |
| 12 | 07000-12085 | O-ring | C10001- | |
| 13 | 04434-50610 | Clip | C10001- | |
| 14 | 363-04-11130 | Valve | C10001- | |
| 15 | 417-04-10140 | Cover | C10001- | |
| 16 | 01010-80816 | Bolt | C10001- | |
| 17 | 01643-30823 | Washer | C10001- | |
| 18 | 417-04-41310 | Hose | C10001- | |
| 19 | 417-04-41331 | Hose | C10001- | |
| 20 | 02896-11009 | O-ring | C10001- | |
| 21 | 417-04-41440 | Tube | C10001- | |
| 22 | 07285-00130 | Clip | C10001- | |
| 23 | 418-04-31210 | Cover | C10001- | |
| 24 | 01023-10510 | Screw | C10001- | |
| 25 | 418-04-31220 | Packing | C10001- | |
| 26 | (208-04-71780) | Breather | - |
