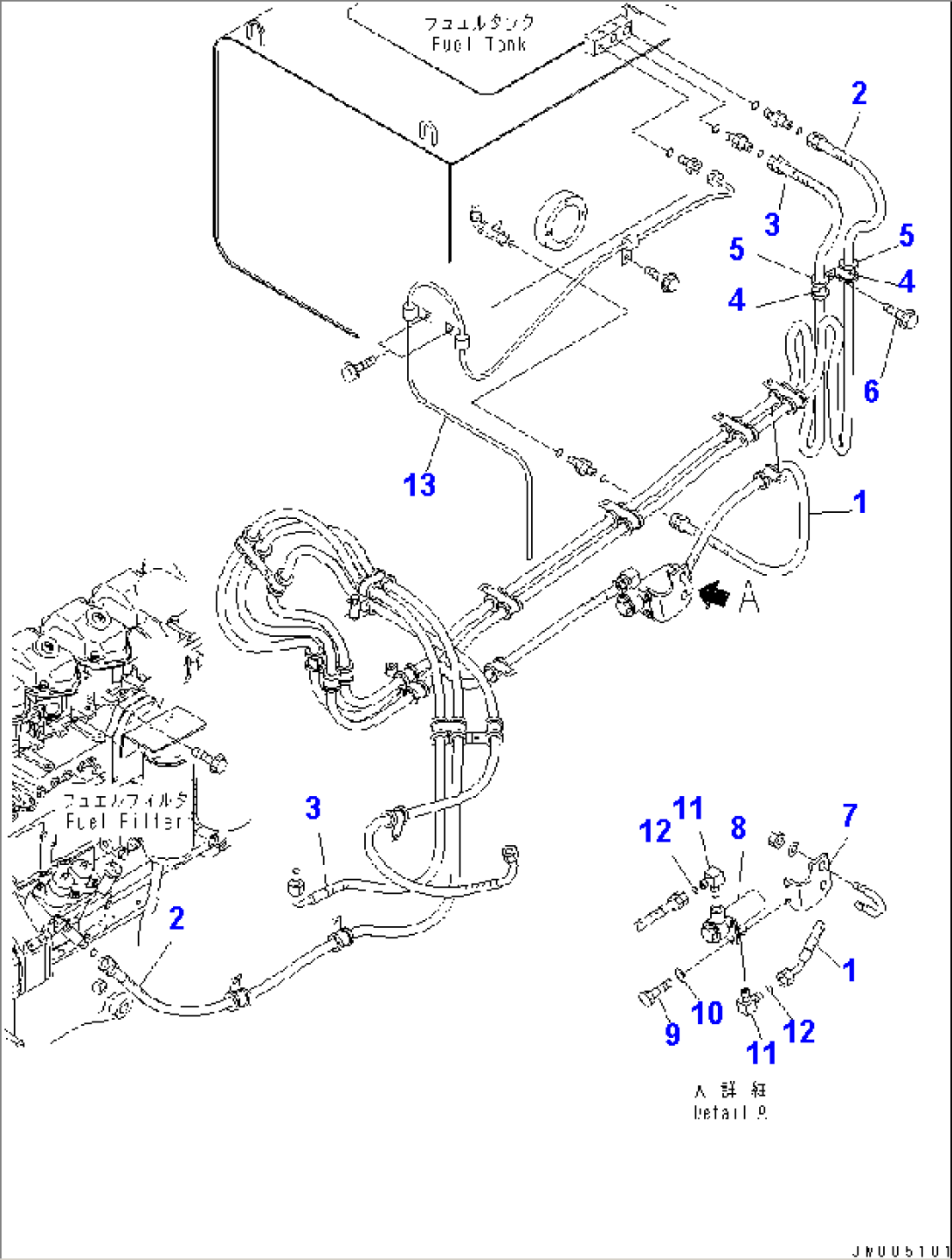

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02764-00511 | HOSE | 1601- | |
| 2 | 02762-00346 | HOSE | 1601- | |
| 3 | 02763-00335 | HOSE | 1601- | |
| 4 | 04434-52110 | CLIP | 1601- | |
| 5 | 07095-20314 | CUSHION | 1601- | |
| 6 | 01435-01016 | BOLT | 1601- | |
| 7 | 567-04-72150 | COVER | 1601- | |
| 8 | 07058-20000 | FILTER ASS'Y | 1601- | |
| 9 | 01010-80820 | BOLT | 1601- | |
| 10 | 01643-30823 | WASHER | 1601- | |
| 11 | 198-04-61230 | ELBOW | 1601- | |
| 12 | 02896-21015 | O-RING | 1601- | |
| 13 | 07822-00628 | TUBE | 1601- |
