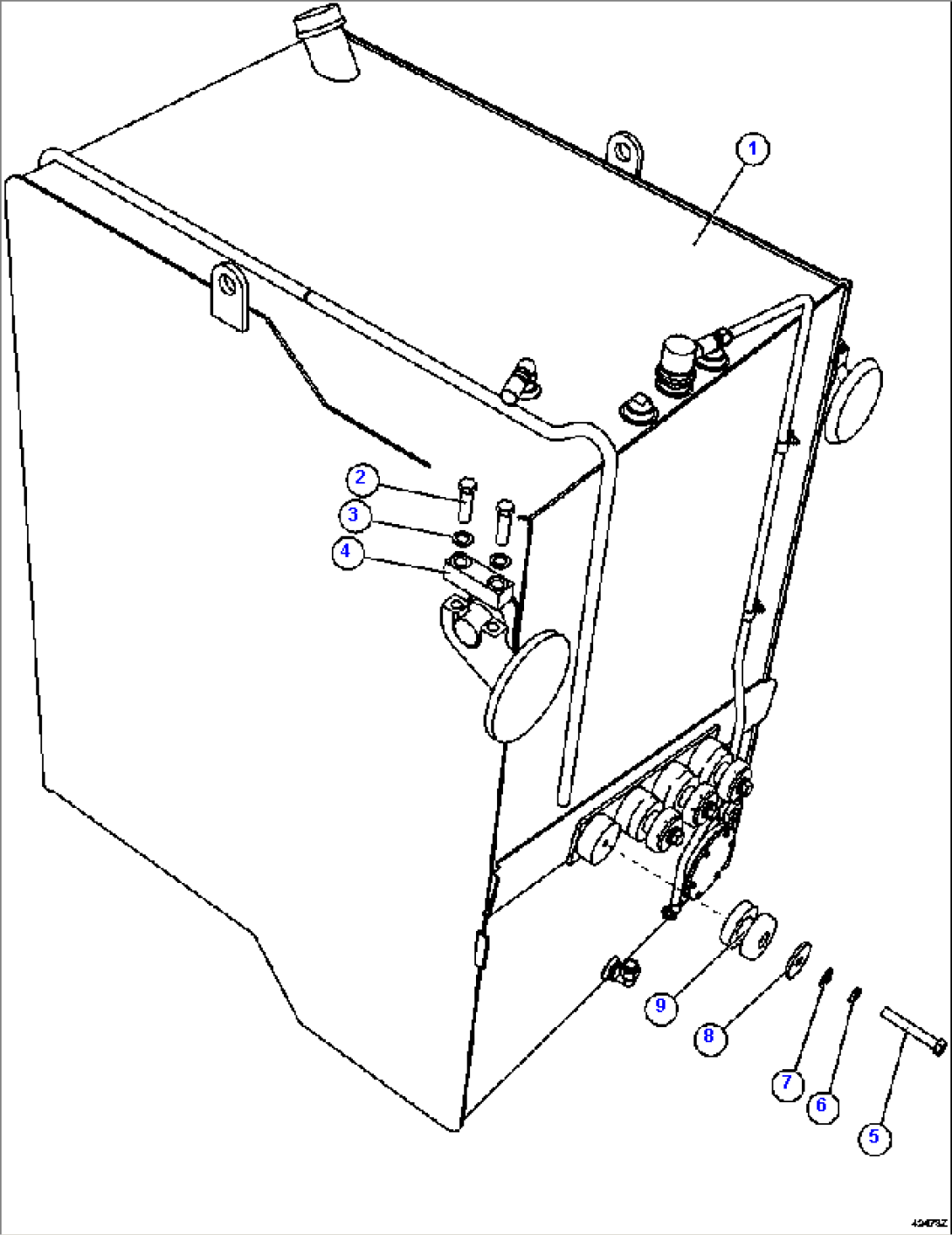

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB0863 | FUEL TANK (SEE FIG. 43116) | ||
| 2 | C1669 | CAPSCREW - 1" - 8NC X 3 1/2" | ||
| 3 | WA4733 | FLAT WASHER - 1" | ||
| 4 | TY4907 | CAP | ||
| 5 | MM0163 | CAPSCREW - M24 X 3.00 X 160 | ||
| 6 | MM0476 | LOCKWASHER - M24 | ||
| 7 | MM0708 | FLAT WASHER - M24 | ||
| 8 | PC2672 | FLAT WASHER | ||
| 9 | VL7792 | MOUNT, RUBBER - TWO PIECE |
