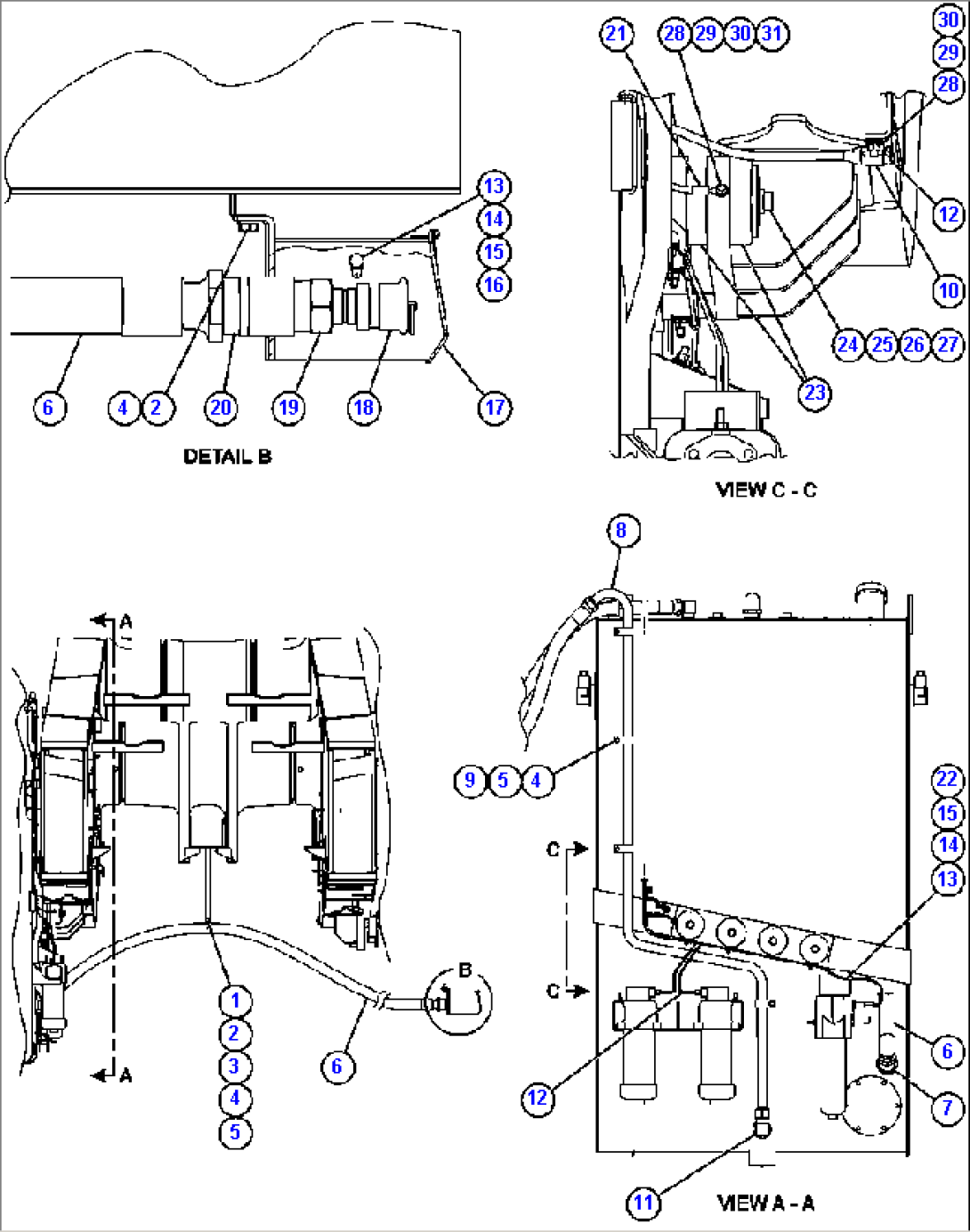

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VC7674 | CLAMP, VINYL - 2 7/16" I.D. | | |
| 2 | TR1376 | CAPSCREW - 1/2" - 13NC X 1 1/4" | | |
| 3 | TR6008 | FLAT WASHER - 1/2" | | |
| 4 | C1540 | LOCKWASHER - 1/2" | | |
| 5 | C1523 | NUT - 1/2" - 13NC | | |
| 6 | HA5597 | HOSE | | |
| 7 | WB0303 | FITTING, ELBOW - 45 DEG | | |
| 8 | EK7106 | TUBE | | |
| 9 | VN9994 | CLAMP, TUBE | | |
| 10 | VN9913 | CLAMP, VINYL - 1 1/16" I.D. | | |
| 11 | WB0277 | FITTING, ELBOW - 90 DEG | | |
| 12 | EK6446 | HARNESS, FUEL TANK | | |
| 13 | TR4436 | FLAT WASHER - 3/8" | | |
| 14 | TC1231 | LOCKWASHER - 3/8" | | |
| 15 | TC1233 | NUT - 3/8" - 16NC | | |
| 16 | TG5720 | CAPSCREW - 3/8" - 16NC X 1" | | |
| 17 | TZ8035 | BOX, FUELING | | |
| 18 | PB2020 | CAP ASSEMBLY | | |
| 19 | PB2154 | RECEIVER ASSEMBLY | | |
| 20 | WB0479 | FITTING, STRAIGHT | | |
| 21 | VL4462 | WIRE, GROUND | | |
| 22 | TG2562 | CLAMP, VINYL - 1/2" I.D. | | |
| 23 | VL7792 | DAMPENER, RUBBER | | |
| 24 | VN9179 | CAPSCREW - 3/4" - 10NC X 6" | | |
| 25 | VW6877 | FLAT WASHER - 1" | | |
| 26 | WA4730 | FLAT WASHER - 3/4" (HARDENED) | | |
| 27 | TR4735 | LOCKWASHER - 3/4" | | |
| 28 | MM0173 | CAPSCREW - M20 X 2.50 X 200 | | |
| 29 | MM0178 | NUT - M10 X 1.50 | | |
| 30 | MM0471 | LOCKWASHER - M10 | | |
| 31 | TG0545 | FLAT WASHER - 3/8" (COPPER) | | |
