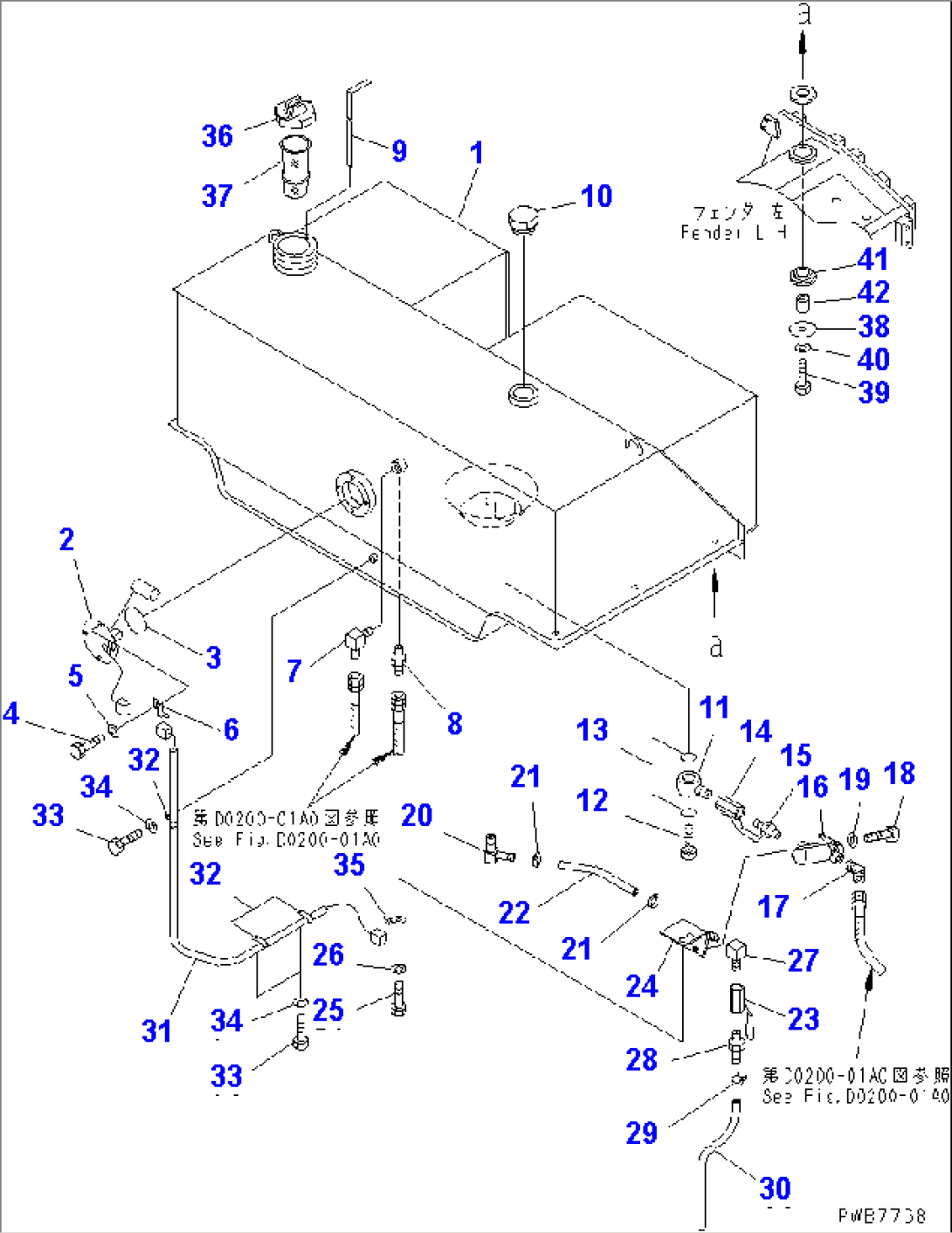

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-04-11921 | TANK,FUEL | 60001- | |
| 2 | 7861-92-4940 | SENSOR,FUEL LEVEL | 60001- | |
| 3 | 07000-12085 | O-RING | 60001- | |
| 4 | 01010-81016 | BOLT | 60001- | |
| 5 | 01643-31032 | WASHER | 60001- | |
| 6 | 08053-01512 | CLIP | 60001- | |
| 7 | 205-43-74190 | ELBOW | 60001- | |
| 8 | 07238-10315 | CONNECTOR | 60001- | |
| 9 | 17A-04-11270 | GAUGE | 60001- | |
| 10 | 195-04-14130 | PLUG | 60001- | |
| 11 | 195-04-11230 | JOINT | 60001- | |
| 12 | 195-04-11280 | BOLT | 60001- | |
| 13 | 07000-13035 | O-RING | 60001- | |
| 14 | 07700-40460 | VALVE | 60001- | |
| 15 | 145-04-41150 | NIPPLE | 60001- | |
| 16 | 07058-20000 | FILTER ASS'Y | 60001- | |
| 17 | 516-61-11580 | ELBOW | 60001- | |
| 18 | 01010-80825 | BOLT | 60001- | |
| 19 | 01643-30823 | WASHER | 60001- | |
| 20 | 205-04-62130 | ELBOW | 60001- | |
| 21 | 07281-00167 | CLAMP | 60001- | |
| 22 | 07270-21030 | TUBE | 60001- | |
| 23 | 07700-40240 | VALVE | 60001- | |
| 24 | 17A-04-11131 | JOINT | 60001- | |
| 25 | 01010-81020 | BOLT | 60001- | |
| 26 | 01643-31032 | WASHER | 60001- | |
| 27 | 6137-51-7690 | ELBOW | 60001- | |
| 28 | 103-04-22150 | NIPPLE | 60001- | |
| 29 | 07285-00130 | CLIP | 60001- | |
| 30 | 07270-01260 | TUBE | 60001- | |
| 31 | 17A-06-11371 | WIRING HARNESS | 60001- | |
| 32 | 08036-01014 | CLIP | 60001- | |
| 33 | 01010-81020 | BOLT | 60001- | |
| 34 | 01643-31032 | WASHER | 60001- | |
| 35 | 08053-01512 | CLIP | 60001- | |
| 36 | 07050-41200 | CAP | 60001- | |
| 37 | 07056-18416 | STRAINER | 60001- | |
| 38 | 17A-04-11191 | PLATE | 60001- | |
| 39 | 01010-81675 | BOLT | 60001- | |
| 40 | 01643-31645 | WASHER | 60001- | |
| 41 | 195-54-42550 | CUSHION | 60001- | |
| 42 | 195-54-42560 | BOSS | 60001- |
