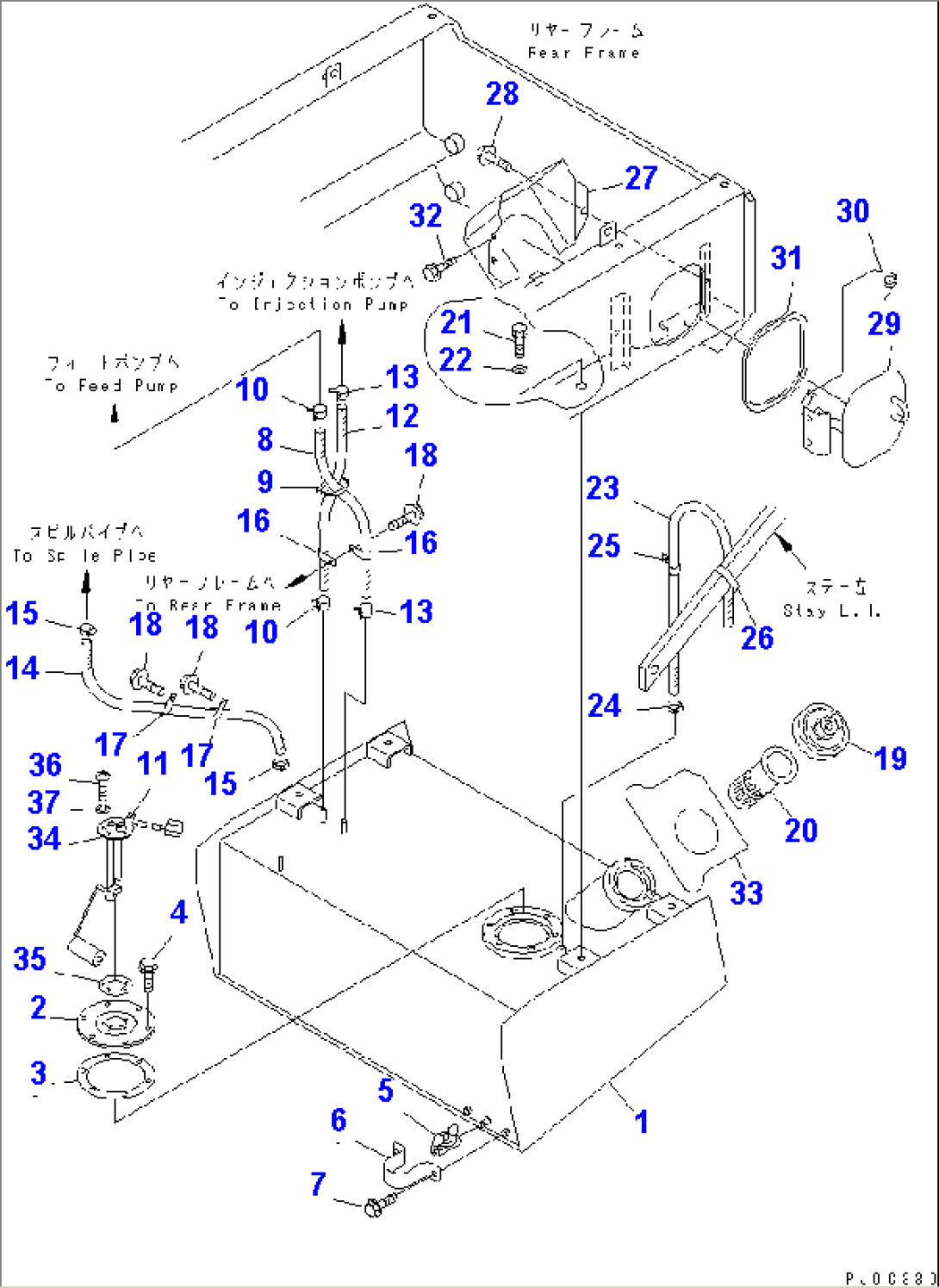

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-04-21120 | FUEL TANK | 53001- | |
| 2 | 416-04-10150 | COVER | 53001- | |
| 3 | 421-04-11191 | GASKET | 53001- | |
| 4 | 01435-01020 | BOLT | 53001- | |
| 5 | 363-04-11130 | VALVE,DRAIN | 53001- | |
| 6 | 417-04-10140 | COVER | 53001- | |
| 7 | 01435-00816 | BOLT | 53001- | |
| 8 | 07270-21070 | TUBE | 53001- | |
| 9 | 08034-20536 | BAND | 53001- | |
| 10 | 11Y-09-11170 | CLIP | 53001- | |
| 11 | 08036-10810 | CLIP | 53001- | |
| 12 | 07270-21080 | TUBE | 53001- | |
| 13 | 11Y-09-11170 | CLIP | 53001- | |
| 14 | 07270-20495 | TUBE | 53001- | |
| 15 | 07285-00085 | CLIP | 53001- | |
| 16 | 04434-51510 | CLIP | 53001- | |
| 17 | 04434-51010 | CLIP | 53001- | |
| 18 | 01435-01016 | BOLT | 53001- | |
| 19 | 423-04-11362 | CAP | 53001- | |
| 417-04-21230 | PACKING | 53001- | ||
| 20 | 07056-18416 | STRAINER | 53001- | |
| 21 | 01010-61635 | BOLT | 53001- | |
| 22 | 421-70-11280 | WASHER | 53001- | |
| 23 | 07270-21080 | TUBE | 53001- | |
| 24 | 07285-00130 | CLIP | 53001- | |
| 25 | 04434-51510 | CLIP | 53001- | |
| 26 | 08034-20536 | BAND | 53001- | |
| 27 | 417-04-21130 | COVER | 53001- | |
| 28 | 01435-01020 | BOLT | 53001- | |
| 29 | 417-04-21171 | COVER | 53001- | |
| 30 | 09467-00006 | SPRING | 53001- | |
| 31 | 417-04-21210 | FINISHER | 53001- | |
| 32 | 01435-01020 | BOLT | 53001- | |
| 33 | 417-04-21220 | RUBBER | 53001- | |
| 34 | 416-04-10120 | SENSOR,FUEL LEVEL | 53001- | |
| 35 | 419-04-10140 | GASKET | 53001- | |
| 36 | 01220-40512 | SCREW | 53001- | |
| 37 | 01601-20513 | WASHER | 53001- |
