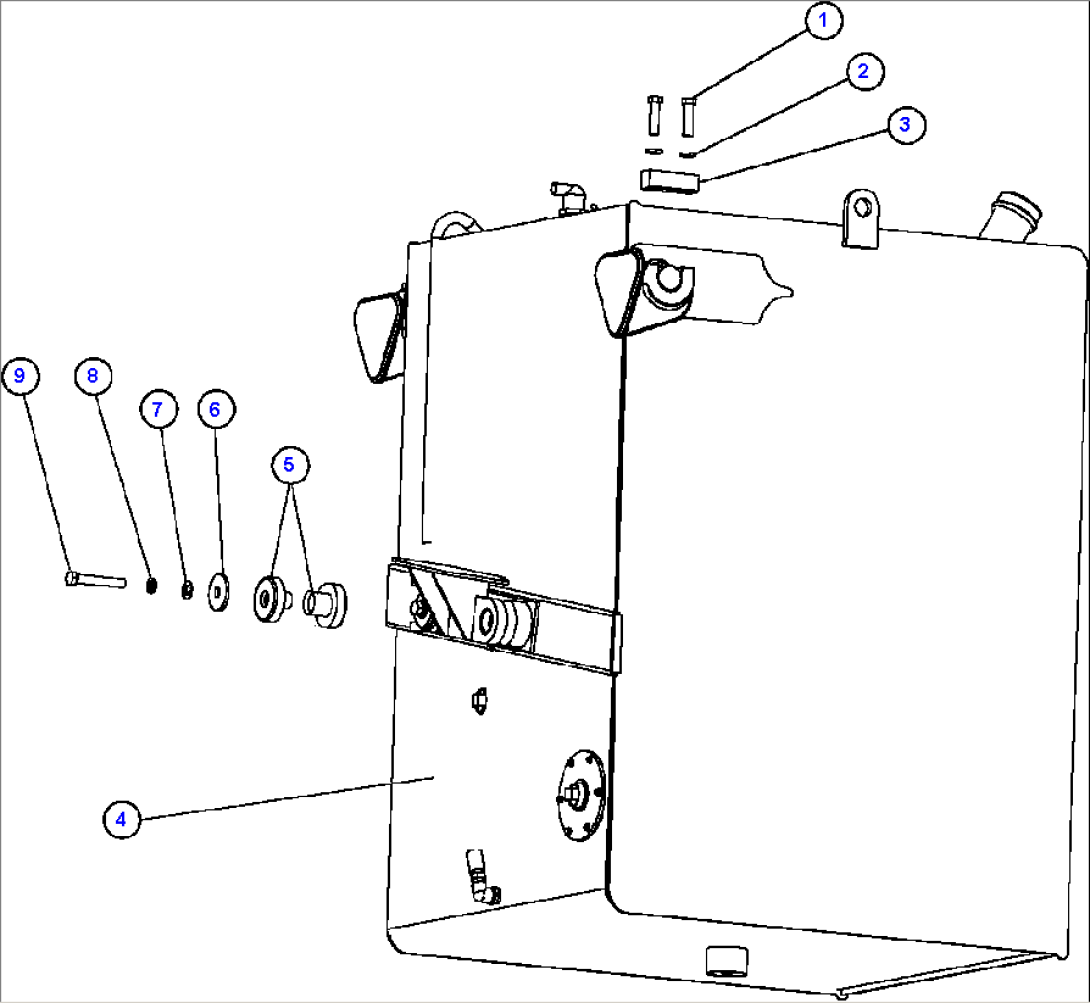

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | C1669 | CAPSCREW - 1" - 8NC X 3 1/2" | ||
| 2 | C1543 | LOCKWASHER - 1" | ||
| 3 | TY4907 | CAP | ||
| 4 | EL7161 | FUEL TANK (SEE INDEX) | ||
| 5 | PC0780 | MOUNT, RUBBER | ||
| 6 | VW6877 | FLAT WASHER | ||
| 7 | MM0708 | FLAT WASHER - M24 | ||
| 8 | MM0476 | LOCKWASHER - M24 | ||
| 9 | MM0163 | CAPSCREW - M24 X 3.00 X 160 |
