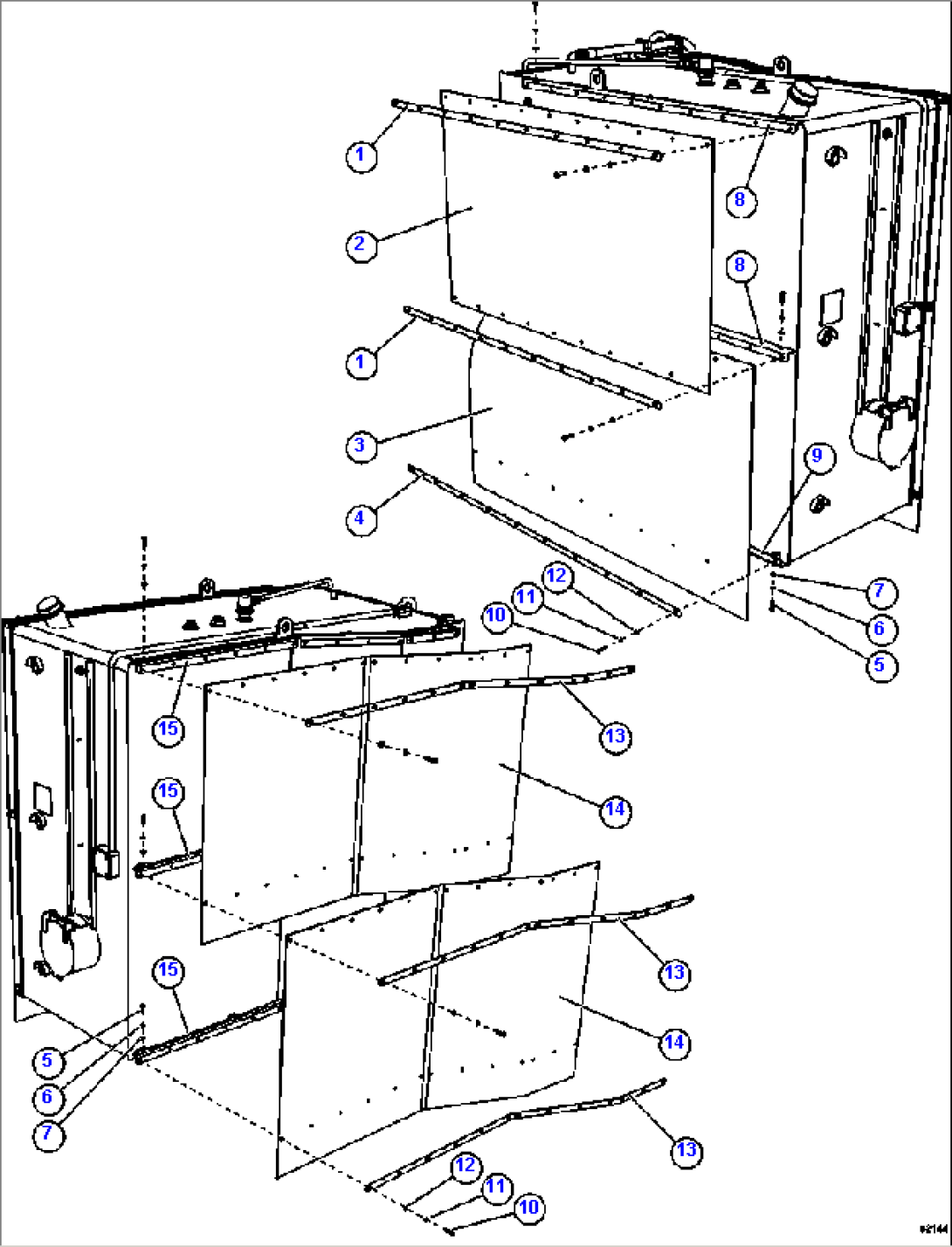

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | XB3075 | RETAINER | ||
| 2 | XB3076 | MUD FLAP | ||
| 3 | XB3077 | MUD FLAP | ||
| 4 | XB3078 | RETAINER | ||
| 5 | MM0620 | CAPSCREW - M12 X 1.75 X 40 | ||
| 6 | MM0472 | LOCKWASHER - M12 | ||
| 7 | MM0714 | FLAT WASHER - M12 (HARDENED) | ||
| 8 | XB3056 | BRACKET | ||
| 9 | XB3079 | BRACKET | ||
| 10 | MM0607 | CAPSCREW - M10 X 1.50 X 35 | ||
| 11 | MM0471 | LOCKWASHER - M10 | ||
| 12 | MM0713 | FLAT WASHER - M10 (HARDENED) | ||
| 13 | XB3065 | RETAINER | ||
| 14 | XB3067 | MUD FLAP | ||
| 15 | XB3024 | BRACKET |
