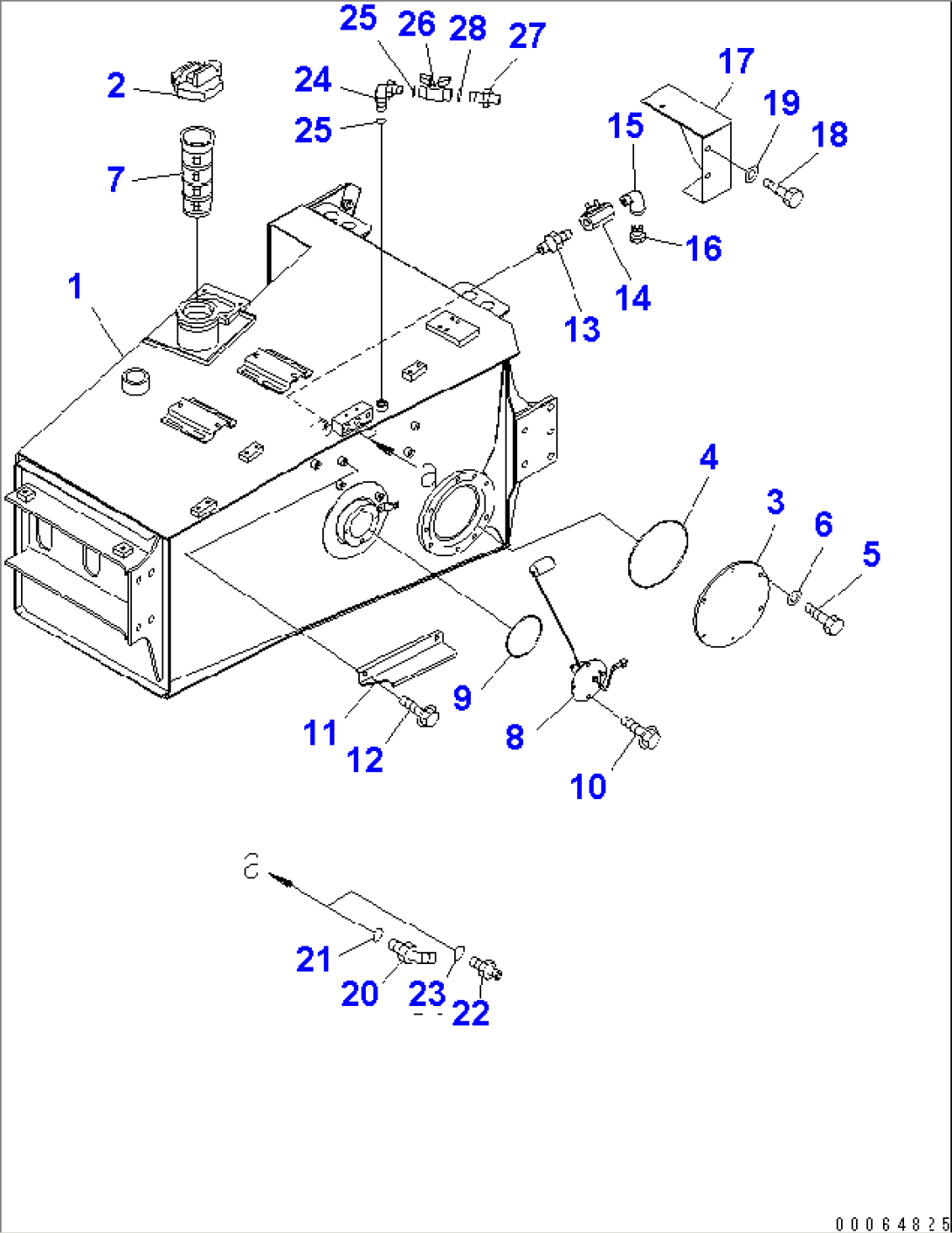

| Item | Part No. | Part Name | Qty | Serial No. |
| 56B-04-21600 | TANK ASS'Y | 2001-2594 | ||
| 1 | 56B-04-21611 | TANK,FUEL | 2001-2594 | |
| 2 | 19M-04-11220 | CAP | 2001-@ | |
| 3 | 428-04-11120 | COVER | 2001-@ | |
| 4 | 07000-15200 | O-RING | 2001-@ | |
| 5 | 01010-81025 | BOLT | 2001-@ | |
| 6 | 01643-31032 | WASHER | 2001-@ | |
| 7 | 17M-04-41190 | STRAINER | 2001-@ | |
| 8 | 7861-93-4930 | SENSOR,FUEL LEVEL | 2001-@ | |
| 9 | 07000-12085 | O-RING | 2001-@ | |
| 10 | 01435-01016 | BOLT | 2001-@ | |
| 11 | 56B-04-11160 | BRACKET | 2001-@ | |
| 12 | 01435-01016 | BOLT | 2001-@ | |
| 13 | 07325-00200 | NIPPLE | 2001-@ | |
| 14 | 363-04-11130 | VALVE | 2001-@ | |
| 15 | 281-43-18250 | ELBOW | 2001-@ | |
| 16 | 56B-04-11190 | ADAPTER | 2001-@ | |
| 17 | 56B-04-21620 | COVER | 2001-@ | |
| 18 | 01010-81020 | BOLT | 2001-@ | |
| 19 | 01643-31032 | WASHER | 2001-@ | |
| 20 | 21W-62-43390 | ELBOW | 2001-@ | |
| 21 | 07002-11823 | O-RING | 2001-@ | |
| 22 | 02781-00313 | UNION | 2001-@ | |
| 23 | 07002-11823 | O-RING | 2001-@ | |
| 24 | 14X-04-21630 | ELBOW | 2001-@ | |
| 25 | 07002-12034 | O-RING | 2001-@ | |
| 26 | 561-04-82121 | VALVE | 2001-@ | |
| 27 | 02781-00516 | UNION | 2001-@ | |
| 28 | 07002-12034 | O-RING | 2001-@ |
