| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-04-82130 | Elbow | 8173- | |
| 2 | 561-04-82121 | Valve | 8173- | |
| 3 | 56B-43-17370 | Nipple | 8173- | |
| 4 | 07002-12034 | O-ring | 8173- | |
| 5 | 561-04-81271 | Cover | 8173- | |
| 6 | 01010-81220 | Bolt | 8173- | |
| 7 | 01643-31232 | Washer | 8173- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 8832 30000 (for kal)
- Fuel system
- Fuel tank, suction valve (#8173 )
Поиск по каталогу

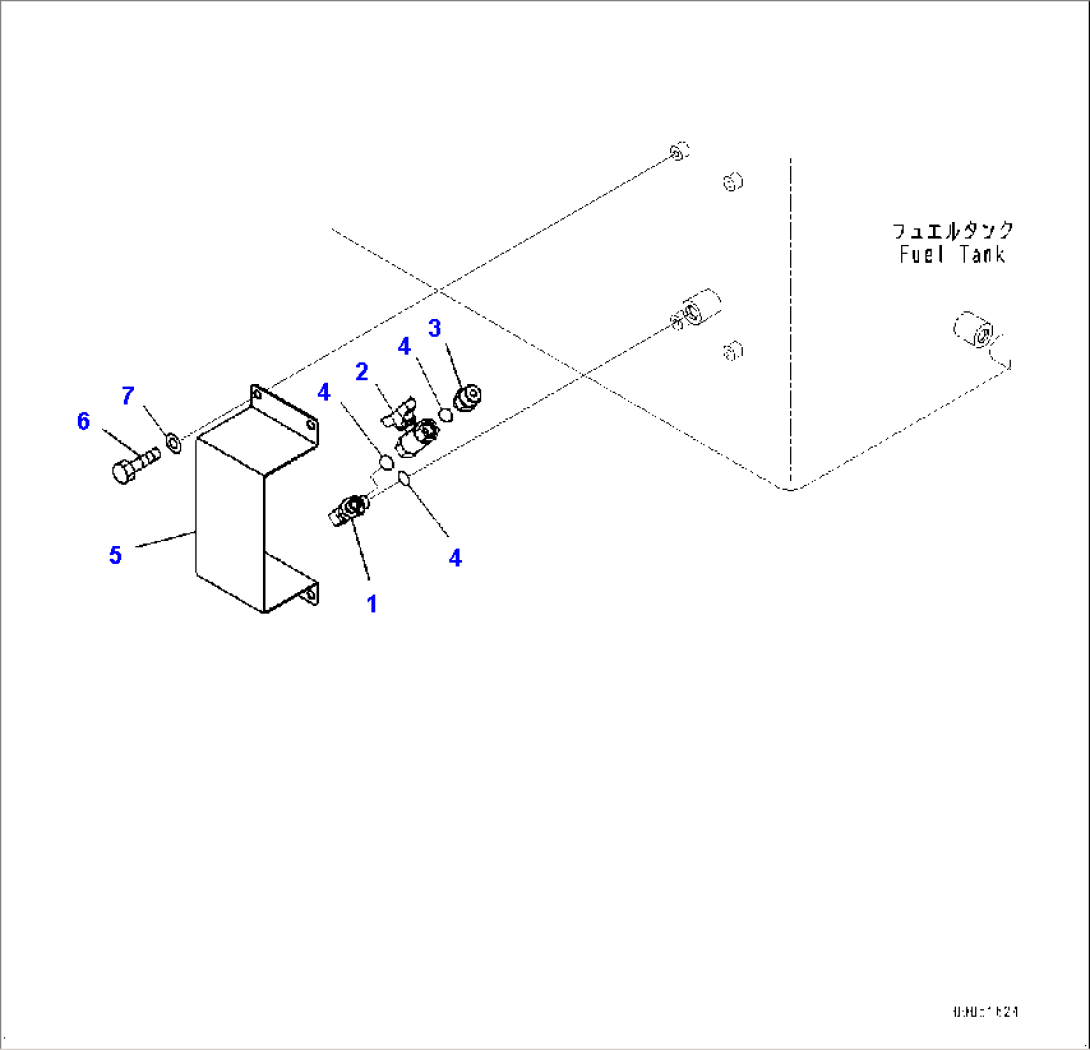

Fuel Tank, Suction Valve (#8173-)
