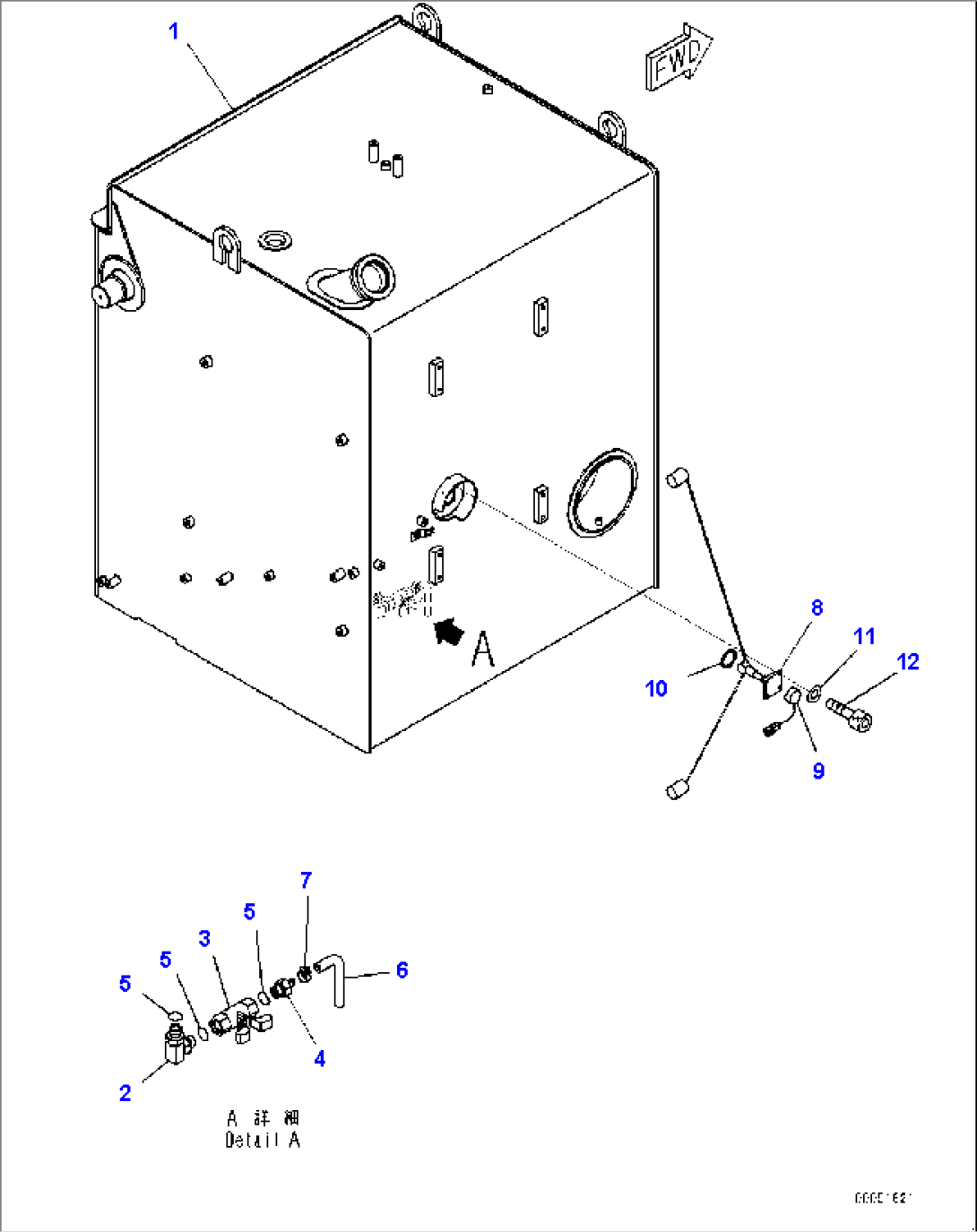

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-04-81118 | Tank, Fuel | 10000-@ | |
| 1 | 561-04-81117 | Tank, Fuel | 8173-9999 | |
| 2 | 561-04-82130 | Elbow | 8173-@ | |
| 3 | 561-04-82121 | Valve | 8173-@ | |
| 4 | 14X-04-21650 | Nipple | 8173-@ | |
| 5 | 07002-12034 | O-ring | 8173-@ | |
| 6 | 22T-01-21160 | Hose | 8173-@ | |
| 7 | 07281-00197 | Clamp | 8173-@ | |
| 8 | 561-06-8A960 | Sensor, Fuel Level | 8173-@ | |
| 9 | 561-06-8A950 | Gauge, Fuel Level | 8173-@ | |
| 10 | 561-04-81410 | Gasket | 8173-@ | |
| 11 | 01602-20619 | Washer | 8173-@ | |
| 12 | 01252-70620 | Bolt, Hexagon Socket Head | 8173-@ |
