| Item | Part No. | Part Name | Qty | Serial No. |

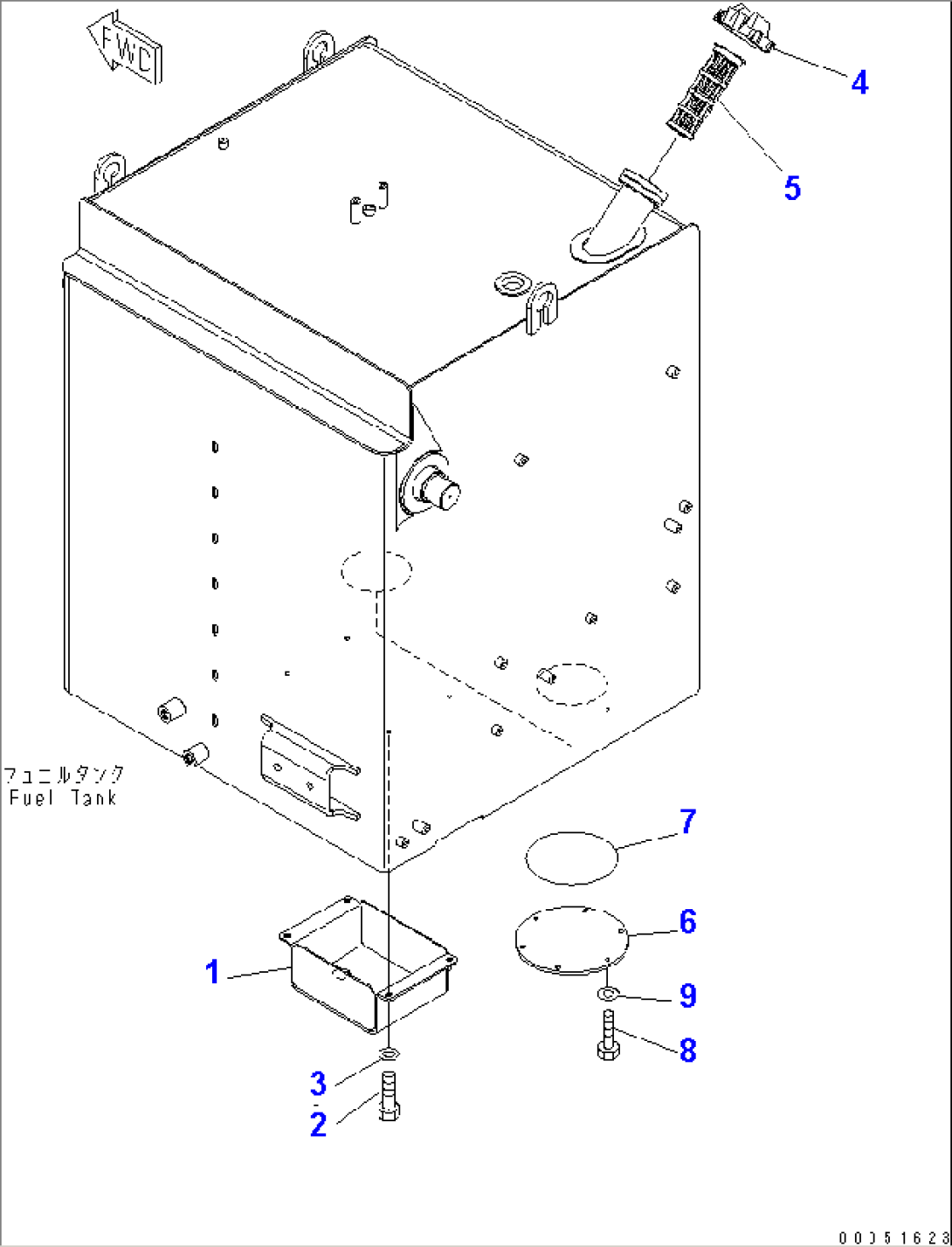

| 561-89-81402 | FUEL TANK ASS'Y | 7391- | ||
| 561-89-81401 | FUEL TANK ASS'Y | 7169-7390 | ||
| 1 | 561-89-81410 | COVER | 7169- | |
| 2 | 01010-81225 | BOLT | 7169- | |
| 3 | 01643-31232 | WASHER | 7169- | |
| 4 | 07091-21200 | CAP | 7169- | |
| 5 | 07056-18422 | STRAINER | 7169- | |
| 6 | 428-04-11120 | COVER | 7169- | |
| 7 | 07000-15200 | O-RING | 7169- | |
| 8 | 01010-81025 | BOLT | 7169- | |
| 9 | 01643-31032 | WASHER | 7169- |
