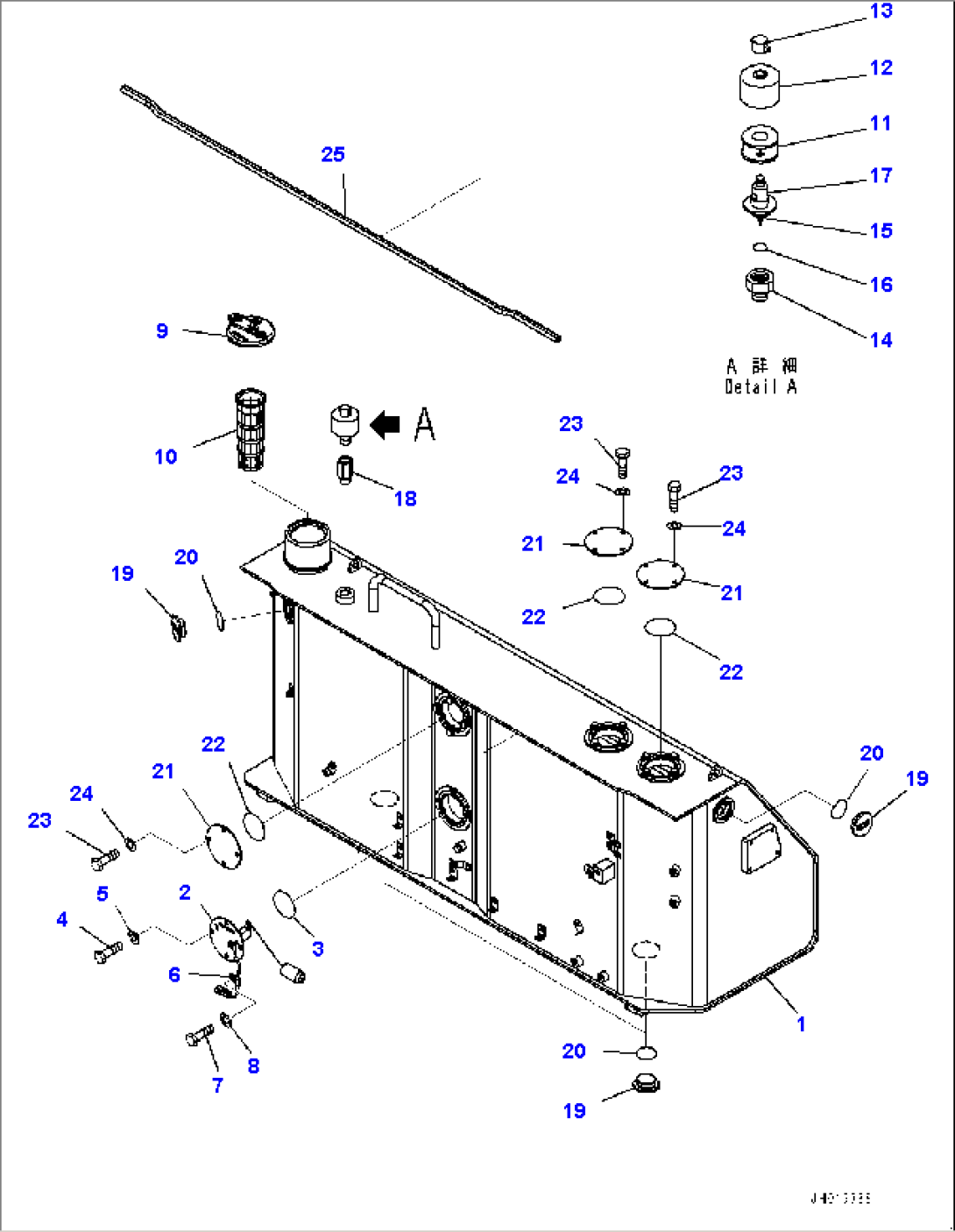

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-04-82113 | Tank, Fuel | 22083- | |
| 2 | 7861-93-4940 | Sensor, Fuel Level, Fuel | 22083- | |
| 3 | 07000-12085 | O-ring | 22083- | |
| 4 | 01010-81020 | Bolt | 22083- | |
| 5 | 01643-31032 | Washer | 22083- | |
| 6 | 04434-50510 | Clip | 22083- | |
| 7 | 01010-81020 | Bolt | 22083- | |
| 8 | 01643-31032 | Washer | 22083- | |
| 9 | 17A-04-41411 | Cap | 22083- | |
| 10 | 07056-18422 | Strainer | 22083- | |
| 10 | 22U-60-21520 | Breather | 22083- | |
| 11 | 421-60-35170 | Element | 22083- | |
| 12 | 421-60-35180 | Cover | 22083- | |
| 13 | 421-60-35190 | Nut | 22083- | |
| 14 | Body | 22001- | ||
| 15 | Valve Assembly | 22001- | ||
| 16 | O-ring | 22001- | ||
| 17 | Case | 22001- | ||
| 18 | 14X-04-51490 | Adapter | 22083- | |
| 19 | 363-60-21310 | Plug | 22083- | |
| 20 | 07002-15234 | O-ring | 22083- | |
| 21 | 11Y-04-31180 | Plate | 22083- | |
| 22 | 07000-12085 | O-ring | 22083- | |
| 23 | 01010-81020 | Bolt | 22083- | |
| 24 | 01643-31032 | Washer | 22083- | |
| 25 | 154-04-87411 | Seal | 22083- |
