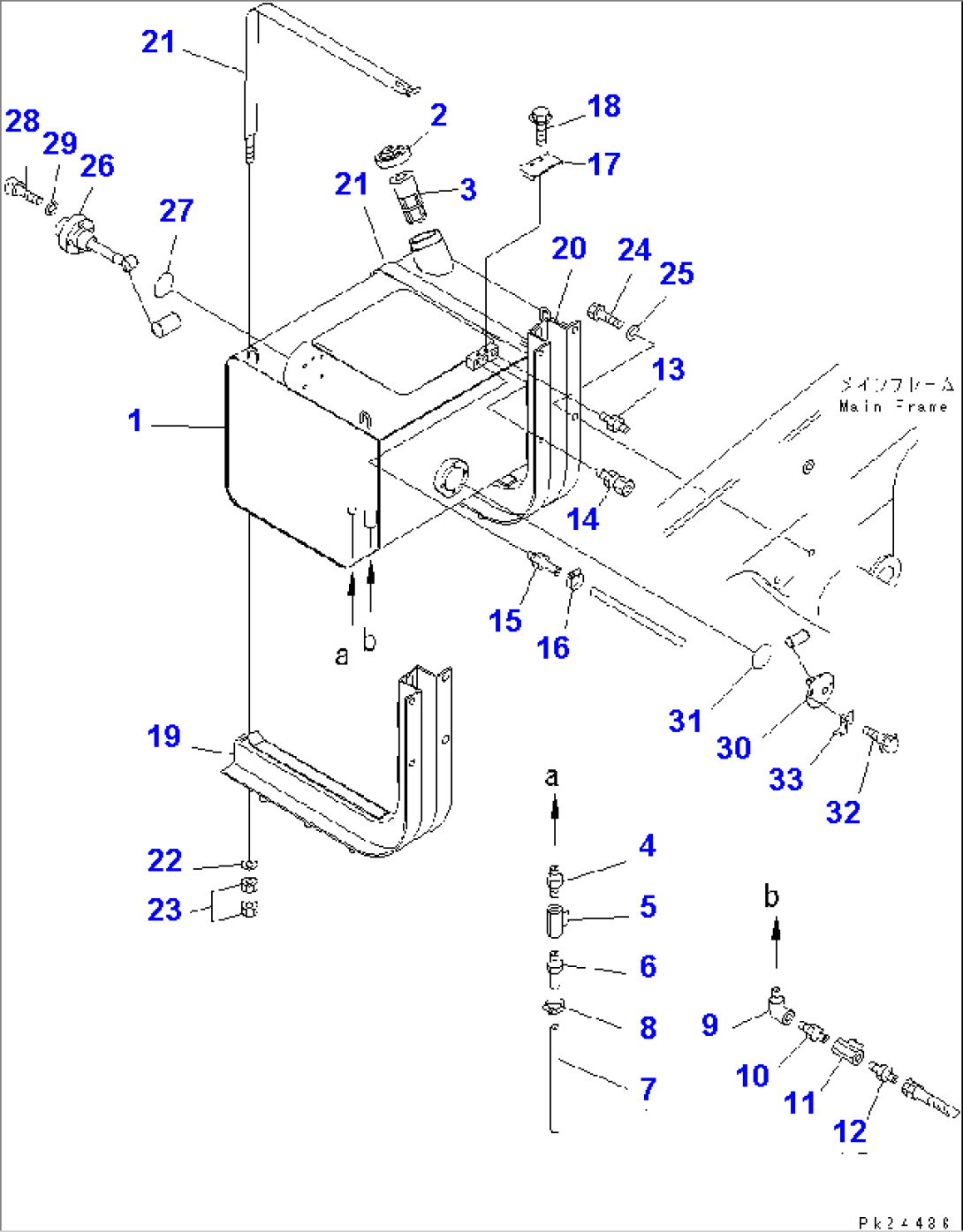

| Item | Part No. | Part Name | Qty | Serial No. |
| 567-04-42101 | TANK ASS'Y | 1001-1600 | ||
| 1 | 567-04-42111 | TANK,FUEL | 1001-1600 | |
| 2 | 20Y-04-11160 | CAP | 1001-@ | |
| 3 | 07056-18416 | STRAINER | 1001-@ | |
| 4 | 430-07-27120 | NIPPLE | 1001-@ | |
| 5 | 07700-50345 | VALVE | 1001-@ | |
| 6 | 6138-55-7610 | NIPPLE | 1001-@ | |
| 7 | 07270-01015 | TUBE | 1001-@ | |
| 8 | 07285-00125 | CLIP | 1001-@ | |
| 9 | 07323-30400 | ELBOW | 1001-1600 | |
| 10 | 07325-10400 | NIPPLE | 1001-1600 | |
| 11 | 07700-50455 | VALVE | 1001-1600 | |
| 12 | 566-35-14390 | NIPPLE | 1001-1600 | |
| 13 | 07238-10422 | CONNECTOR | 1001-1600 | |
| 14 | 281-35-19290 | CONNECTOR | 1001-1600 | |
| 15 | 07209-01040 | NIPPLE | 1001-1600 | |
| 16 | 07280-00910 | CLAMP | 1001-1600 | |
| 17 | 566-04-13270 | COVER | 1001-1600 | |
| 18 | 01435-01016 | BOLT | 1001-1600 | |
| 19 | 567-04-71410 | HANGER | 1001-@ | |
| 20 | 567-04-71420 | HANGER | 1001-@ | |
| 21 | 567-04-71430 | BAND | 1001-@ | |
| 22 | 01643-31232 | WASHER | 1001-@ | |
| 23 | 01580-11210 | NUT | 1001-@ | |
| 24 | 01010-82040 | BOLT | 1001-@ | |
| 25 | 01643-32060 | WASHER | 1001-@ | |
| 26 | 566-04-11154 | GAUGE UNIT | 1001-@ | |
| 27 | 07000-13045 | O-RING | 1001-@ | |
| 28 | 01252-40620 | BOLT | 1001-@ | |
| 29 | 01640-20610 | WASHER | 1001-@ | |
| 30 | 7861-92-4800 | SENSOR,LEVEL | 1001-@ | |
| 31 | 07000-12085 | O-RING | 1001-@ | |
| 32 | 01435-01016 | BOLT | 1001-@ | |
| 33 | 08053-01512 | CLIP | 1001-@ |
