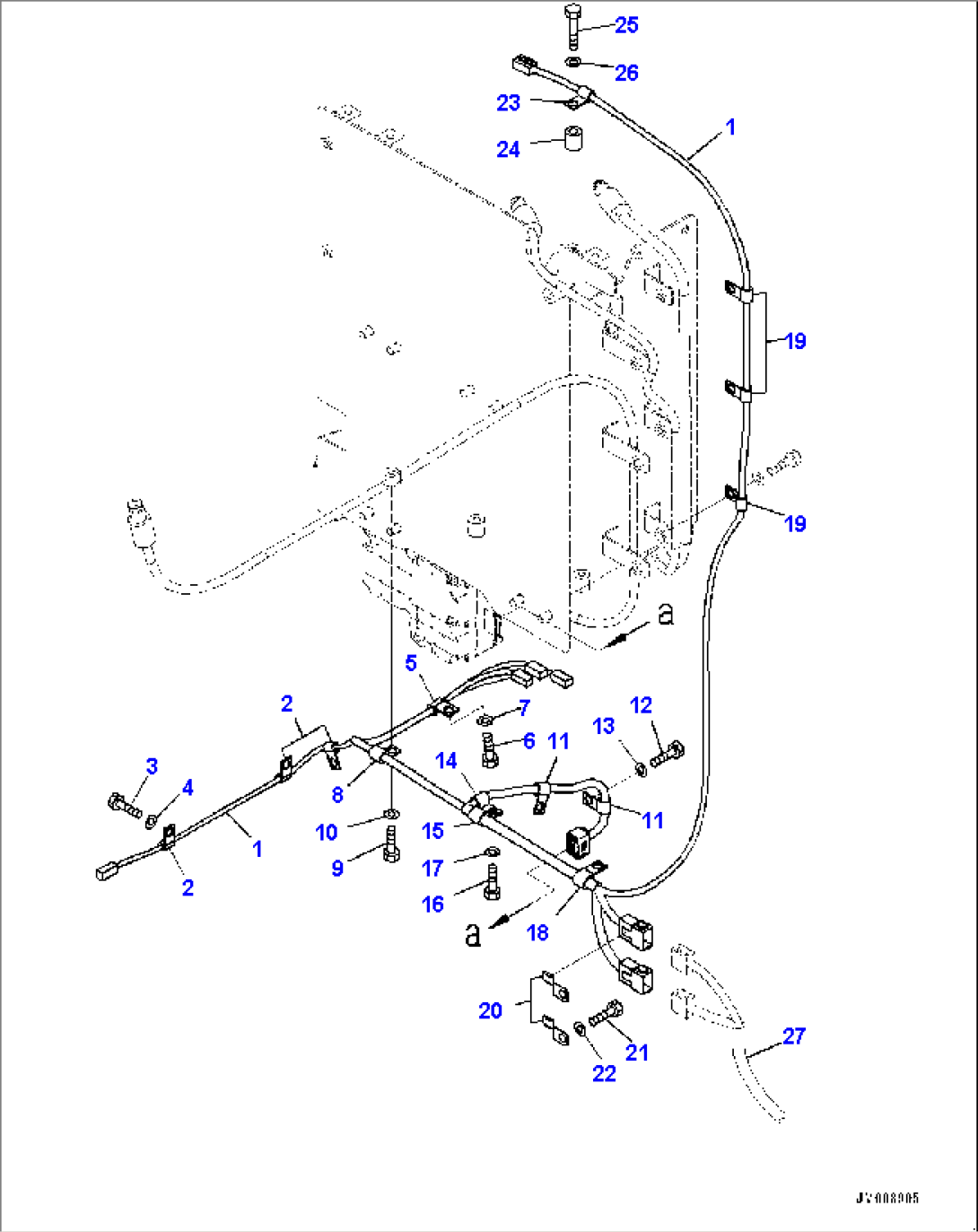

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-06-8L571 | Wiring Harness | 50001- | |
| 2 | 04434-50812 | Clip | 50001- | |
| 3 | 01010-81220 | Bolt | 50001- | |
| 4 | 01643-31232 | Washer | 50001- | |
| 5 | 04434-51212 | Clip | 50001- | |
| 6 | 01010-81220 | Bolt | 50001- | |
| 7 | 01643-31232 | Washer | 50001- | |
| 8 | 04434-51412 | Clip | 50001- | |
| 9 | 01010-81220 | Bolt | 50001- | |
| 10 | 01643-31232 | Washer | 50001- | |
| 11 | 04434-51212 | Clip | 50001- | |
| 12 | 01010-81220 | Bolt | 50001- | |
| 13 | 01643-31232 | Washer | 50001- | |
| 14 | 04434-51412 | Clip | 50001- | |
| 15 | 04434-51612 | Clip | 50001- | |
| 16 | 01010-81225 | Bolt | 50001- | |
| 17 | 01643-31232 | Washer | 50001- | |
| 18 | 04434-51812 | Clip | 50001- | |
| 19 | 04434-51012 | Clip | 50001- | |
| 20 | 08193-20012 | Clip | 50001- | |
| 21 | 01010-81220 | Bolt | 50001- | |
| 22 | 01643-31232 | Washer | 50001- | |
| 23 | 04434-51012 | Clip | 50001- | |
| 24 | 11T-27-11180 | Spacer | 50001- | |
| 25 | 01010-81250 | Bolt | 50001- | |
| 26 | 01643-31232 | Washer | 50001- | |
| 27 | (566-06-8L221) | Wiring Harness | - |
