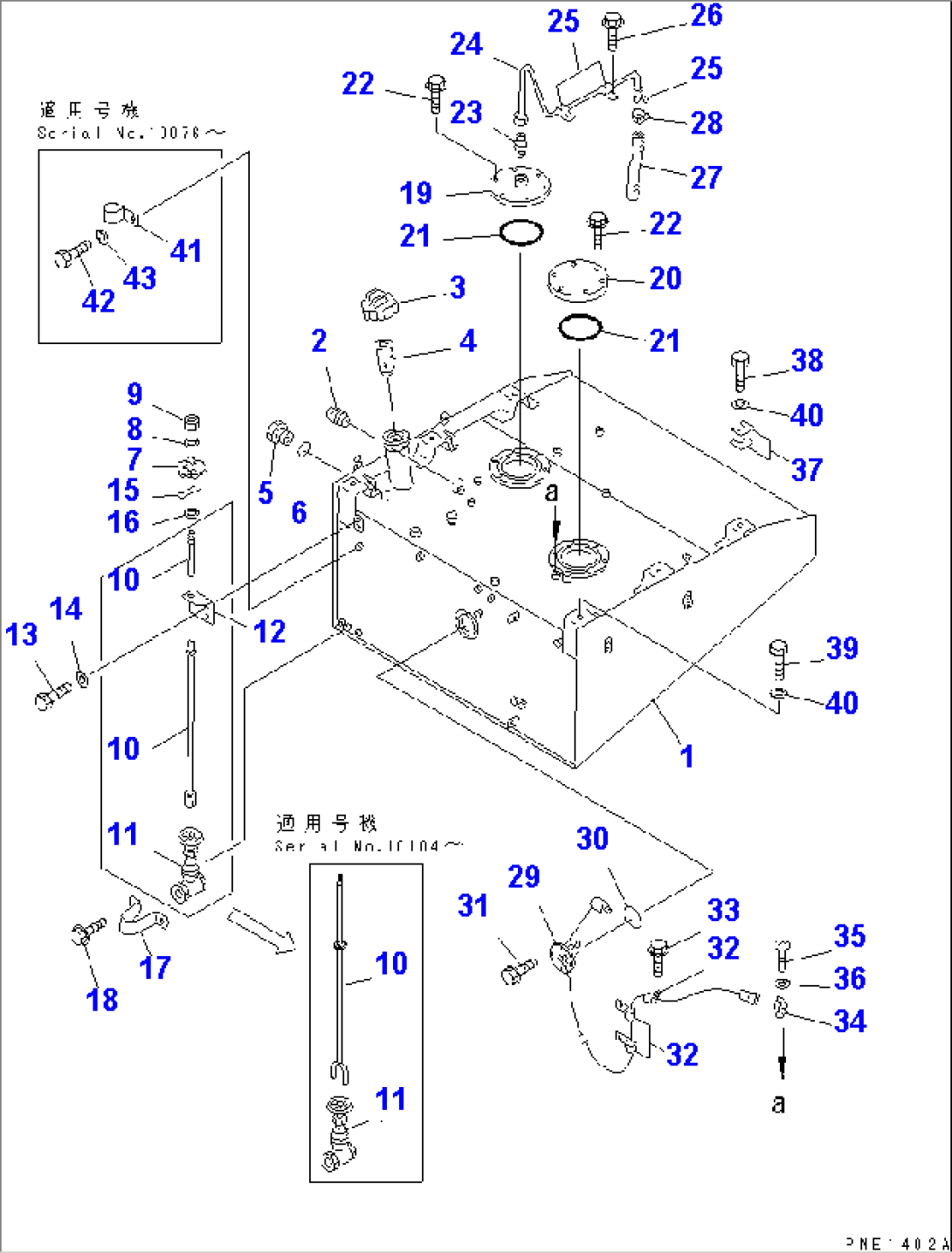

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-04-11114 | TANK,FUEL | 10045- | |
| 2 | 426-04-11150 | PLUG | 10001- | |
| 3 | 421-04-11260 | CAP | 10001- | |
| 3 | 07050-21202 | GASKET | 10001- | |
| 4 | 07056-18416 | STRAINER | 10001- | |
| 5 | 421-60-11622 | GAUGE,SIGHT | 10001- | |
| 6 | 07002-15234 | O-RING | 10001- | |
| 7 | 426-04-11210 | HANDLE | 10001- | |
| 8 | 01643-30623 | WASHER | 10001- | |
| 9 | 01580-10605 | NUT | 10001- | |
| 10 | 428-04-11151 | ROD | 10104- | |
| 10 | \3\428-04-11150 | ROD | 10001-10103 | |
| (428-04-11151,416-04-10131) | ||||
| 11 | 416-04-10131 | VALVE | 10104- | |
| 11 | \3\416-04-10130 | VALVE | 10001-10103 | |
| (416-04-10131,428-04-11151) | ||||
| 12 | 428-04-11160 | PLATE | 10001- | |
| 13 | 01010-81225 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- | |
| 15 | 04050-12018 | PIN,COTTER | 10001- | |
| 16 | 01643-51032 | WASHER | 10001- | |
| 17 | 419-04-11120 | COVER | 10001- | |
| 18 | 01435-00816 | BOLT | 10001- | |
| 19 | 428-04-11180 | COVER | 10001- | |
| 20 | 428-04-11120 | COVER | 10001- | |
| 21 | 07000-15200 | O-RING | 10001- | |
| 22 | 01435-01025 | BOLT | 10001- | |
| 23 | 07214-71013 | CONNECTOR | 10001- | |
| 24 | 428-04-11171 | TUBE | 10001- | |
| 25 | 424-04-11120 | CLIP | 10001- | |
| 26 | 01435-01016 | BOLT | 10001- | |
| 27 | 07270-21020 | TUBE | 10001- | |
| 28 | 07280-01620 | CLAMP | 10001- | |
| 29 | 7861-91-4891 | SENSOR,FUEL LEVEL | 10001- | |
| 30 | 07000-12085 | O-RING | 10001- | |
| 31 | 01435-01014 | BOLT | 10001- | |
| 32 | 362-43-18780 | CLIP | 10001- | |
| 33 | 01435-01016 | BOLT | 10001- | |
| 34 | 08052-01711 | CLIP | 10001- | |
| 35 | 01220-40608 | SCREW | 10001- | |
| 36 | 01641-20608 | WASHER | 10001- | |
| 37 | 416-855-1190 | SHIM, 0.5MM | 10001- | |
| 38 | 01010-63080 | BOLT | 10001- | |
| 39 | 01011-63025 | BOLT | 10001- | |
| 40 | 01643-33080 | WASHER | 10001- | |
| 41 | 424-06-12760 | CLIP | 10076- | |
| 42 | 01010-81016 | BOLT | 10076- | |
| 43 | 01643-31032 | WASHER | 10076- |
