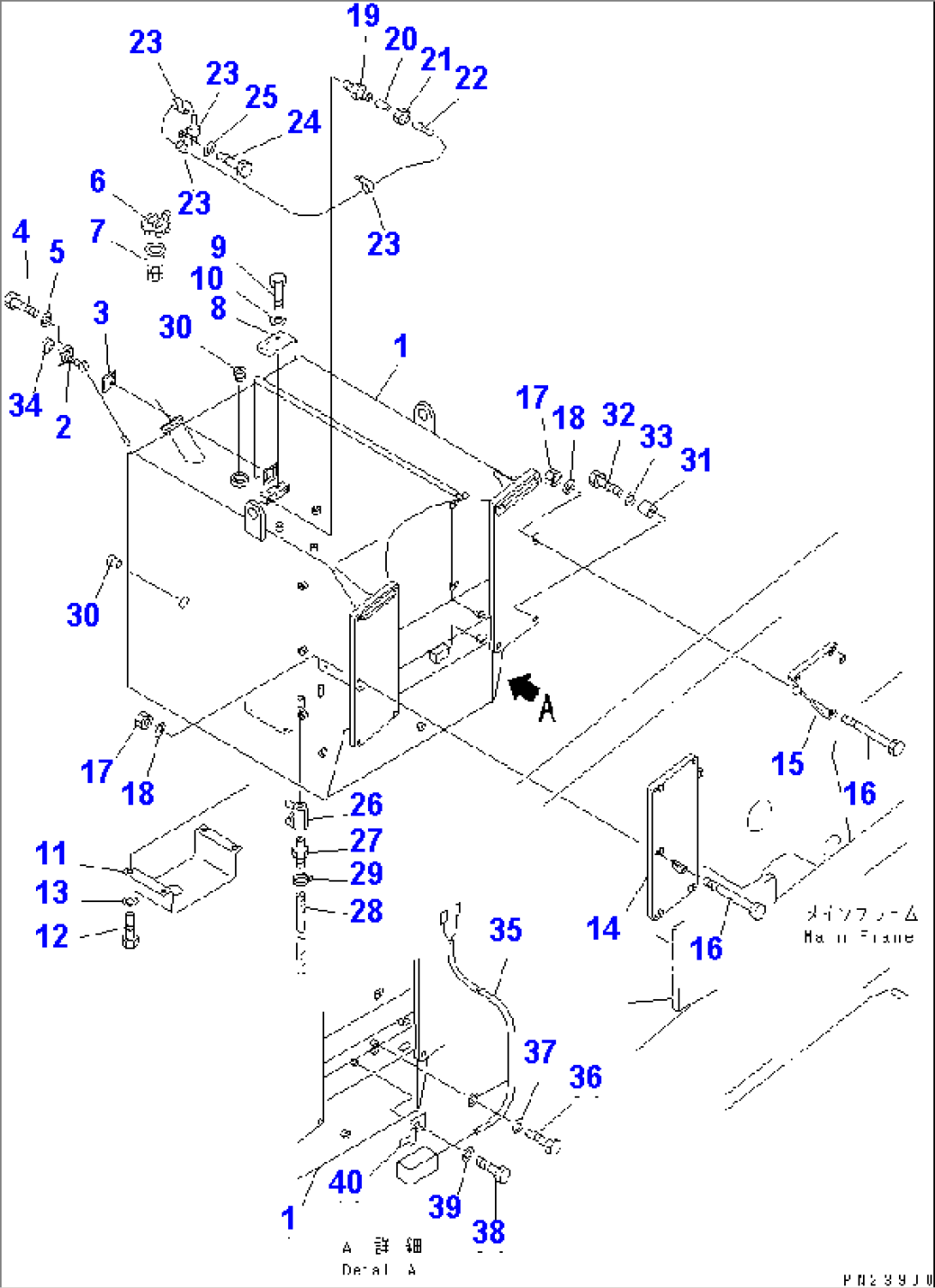

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-04-6A111 | TANK,FUEL | 2496- | |
| 561-04-6A111 | TANK | 2486-2490 | ||
| 2 | 561-06-6A960 | SENSOR | 2496- | |
| 561-06-6A960 | SENSOR,LEVEL | 2486-2490 | ||
| 3 | 561-04-6AD60 | GASKET | 2496- | |
| 561-04-6AD60 | GASKET | 2486-2490 | ||
| 4 | 01010-80620 | BOLT | 2496- | |
| 01010-80620 | BOLT | 2486-2490 | ||
| 5 | 01641-00608 | WASHER | 2496- | |
| 01641-00608 | WASHER | 2486-2490 | ||
| 6 | 19M-04-11220 | CAP | 2496- | |
| 19M-04-11220 | CAP | 2486-2490 | ||
| 7 | 07056-18416 | STRAINER | 2496- | |
| 07056-18416 | STRAINER | 2486-2490 | ||
| 8 | 561-04-61160 | COVER | 2496- | |
| 561-04-61160 | COVER | 2486-2490 | ||
| 9 | 01010-51220 | BOLT | 2496- | |
| 01010-51220 | BOLT | 2486-2490 | ||
| 10 | 01643-31232 | WASHER | 2496- | |
| 01643-31232 | WASHER | 2486-2490 | ||
| 11 | 569-04-61342 | COVER | 2496- | |
| 569-04-61342 | COVER | 2486-2490 | ||
| 12 | 01010-51230 | BOLT | 2496- | |
| 01010-51230 | BOLT | 2486-2490 | ||
| 13 | 01643-31232 | WASHER | 2496- | |
| 01643-31232 | WASHER | 2486-2490 | ||
| 14 | 561-04-6A140 | BRACKET | 2496- | |
| 561-04-6A140 | BRACKET | 2486-2490 | ||
| 15 | 561-04-6A150 | BRACKET | 2496- | |
| 561-04-6A150 | BRACKET | 2486-2490 | ||
| 16 | 561-46-62570 | BOLT | 2496- | |
| 561-46-62570 | BOLT | 2486-2490 | ||
| 17 | 01580-12016 | NUT | 2496- | |
| 01580-12016 | NUT | 2486-2490 | ||
| 18 | 01643-32060 | WASHER | 2496- | |
| 01643-32060 | WASHER | 2486-2490 | ||
| 19 | 07836-00817 | CONNECTOR | 2496- | |
| 07836-00817 | CONNECTOR | 2486-2490 | ||
| 20 | 07831-00813 | SLEEVE | 2496- | |
| 07831-00813 | SLEEVE | 2486-2490 | ||
| 21 | 07832-00817 | NUT | 2496- | |
| 07832-00817 | NUT | 2486-2490 | ||
| 22 | 07822-00819 | TUBE | 2496- | |
| 07822-00819 | TUBE | 2486-2490 | ||
| 23 | 08036-01214 | CLIP | 2496- | |
| 08036-01214 | CLIP | 2486-2490 | ||
| 24 | 01010-51220 | BOLT | 2496- | |
| 01010-51220 | BOLT | 2486-2490 | ||
| 25 | 01643-31232 | WASHER | 2496- | |
| 01643-31232 | WASHER | 2486-2490 | ||
| 26 | 07700-50455 | VALVE | 2496- | |
| 07700-50455 | VALVE | 2486-2490 | ||
| 27 | 154-04-12480 | NIPPLE | 2496- | |
| 154-04-12480 | NIPPLE | 2486-2490 | ||
| 28 | 07270-01215 | TUBE | 2496- | |
| 07270-01215 | TUBE | 2486-2490 | ||
| 29 | 07281-10167 | CLAMP | 2496- | |
| 07281-10167 | CLAMP | 2486-2490 | ||
| 30 | 566-98-15120 | PLUG | 2496- | |
| 566-98-15120 | PLUG | 2486-2490 | ||
| 31 | 561-04-61230 | COLLAR | 2496- | |
| 561-04-61230 | COLLAR | 2486-2490 | ||
| 32 | 01011-52005 | BOLT | 2496- | |
| 01011-52005 | BOLT | 2486-2490 | ||
| 33 | 01643-32060 | WASHER | 2496- | |
| 01643-32060 | WASHER | 2486-2490 | ||
| 34 | 561-06-6A950 | TRANSMITTER | 2496- | |
| 561-06-6A950 | TRANSMITTER | 2486-2490 | ||
| 35 | 561-06-6A980 | WIRING HARNESS | 2496- | |
| 561-06-6A980 | WIRING HARNESS | 2486-2490 | ||
| 36 | 01010-80816 | BOLT | 2496- | |
| 01010-80816 | BOLT | 2486-2490 | ||
| 37 | 01643-30823 | WASHER | 2496- | |
| 01643-30823 | WASHER | 2486-2490 | ||
| 38 | 01010-81016 | BOLT | 2496- | |
| 01010-81016 | BOLT | 2486-2490 | ||
| 39 | 01643-31032 | WASHER | 2496- | |
| 01643-31032 | WASHER | 2486-2490 | ||
| 40 | 08053-01510 | CLIP | 2496- | |
| 08053-01510 | CLIP | 2486-2490 |
