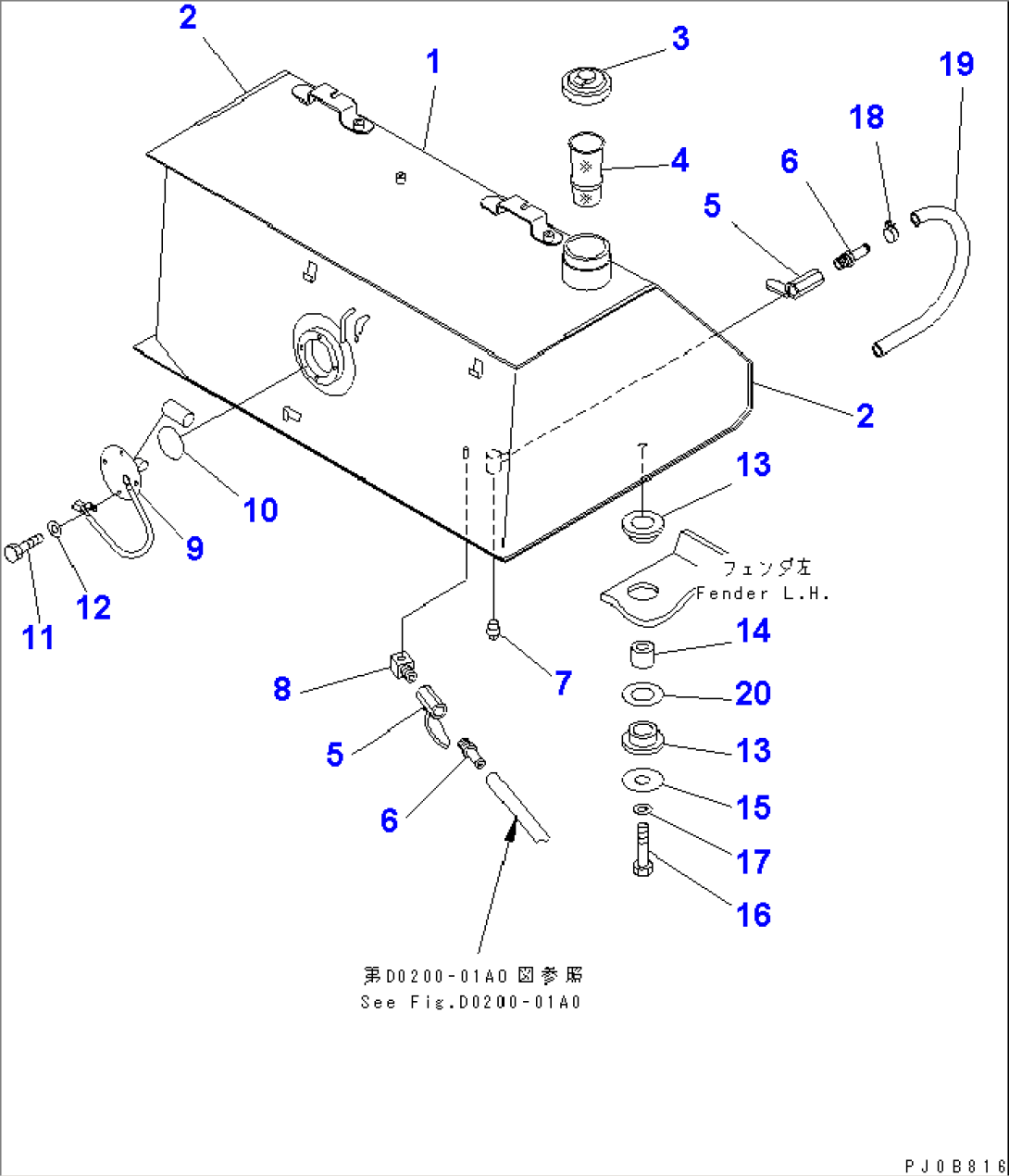

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-04-11113 | TANK | 3034-4000 | |
| 2 | 14X-04-11141 | SEAL | 3034-4000 | |
| 3 | 20Y-04-11160 | CAP | 3034-4000 | |
| 4 | 07056-18416 | STRAINER | 3034-4000 | |
| 5 | 07700-40240 | VALVE | 3034-@ | |
| 6 | 120-04-41130 | NIPPLE | 3034-@ | |
| 7 | 07042-00617 | PLUG | 3034-4000 | |
| 8 | 20T-04-71130 | ELBOW | 3034-@ | |
| 9 | 7861-92-4940 | SENSOR,FUEL | 3034-4000 | |
| 10 | 07000-02085 | O-RING | 3034-@ | |
| 11 | 01010-81020 | BOLT | 3034-@ | |
| 12 | 01643-31032 | WASHER | 3034-@ | |
| 13 | 195-54-42550 | CUSHION | 3034-@ | |
| 14 | 195-54-42560 | BOSS | 3034-@ | |
| 15 | 14X-04-11180 | PLATE | 3034-@ | |
| 16 | 01010-81680 | BOLT | 3034-@ | |
| 17 | 01643-31645 | WASHER | 3034-@ | |
| 18 | 07285-00115 | CLIP | 3034-@ | |
| 19 | 07270-01035 | TUBE | 3034-@ | |
| 20 | 14X-54-13350 | WASHER | 3034-@ |
