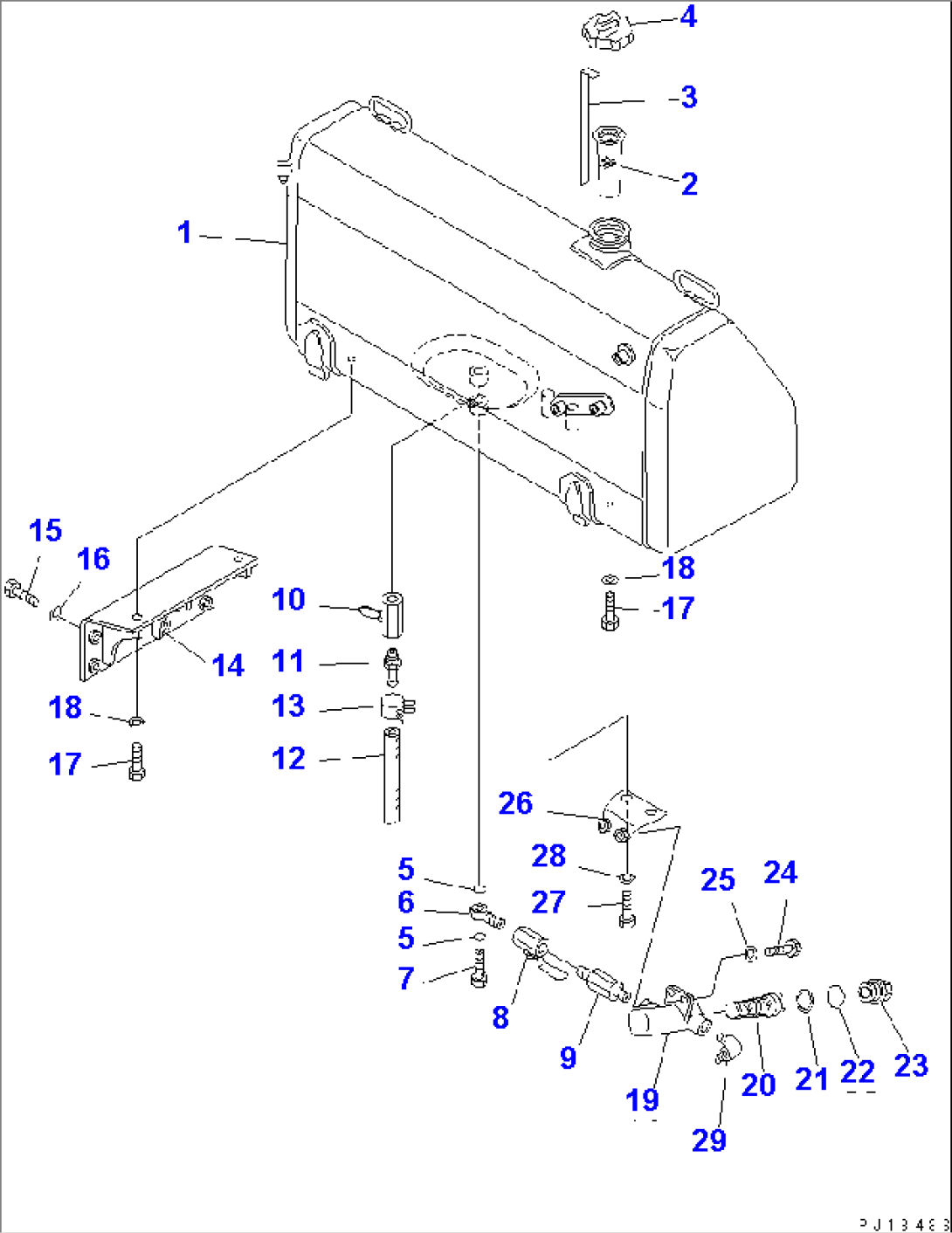

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-04-00140 | FUEL TANK ASS'Y | 35001- | ||
| 1 | \6\ | TANK,FUEL | 35001- | |
| 2 | 07056-18416 | STRAINER | 35001- | |
| 3 | 154-04-11135 | GAUGE,LEVEL | 35001- | |
| 07050-41200 | CAP,FUEL TANK | 35001- | ||
| 4 | 07050-21202 | GASKET | 35001- | |
| 5 | 07000-03035 | O-RING | 35001- | |
| 6 | 195-04-11230 | JOINT,EYE | 35001- | |
| 7 | 195-04-11280 | BOLT,JOINT | 35001- | |
| 8 | 07700-40460 | VALVE | 35001- | |
| 9 | 21T-04-11650 | NIPPLE | 35001- | |
| 10 | 07700-40240 | VALVE | 35001- | |
| 11 | 154-04-11540 | NIPPLE | 35001- | |
| 12 | 07270-01065 | TUBE | 35001- | |
| 13 | 07285-00115 | CLIP | 35253- | |
| 13 | 07285-00130 | CLIP | 35001-35252 | |
| 14 | 154-04-11411 | BRACKET | 35001- | |
| 15 | 01010-52045 | BOLT | 35001- | |
| 16 | 01643-32060 | WASHER | 35001- | |
| 17 | 01010-52045 | BOLT | 35001- | |
| 18 | 01643-32060 | WASHER | 35001- | |
| 07058-20000 | FILTER ASS'Y | 35001- | ||
| 19 | 07058-00001 | CASE | 35001- | |
| 20 | 07058-00005 | ELEMENT | 35001- | |
| 21 | 07058-00006 | RING | 35001- | |
| 22 | 07002-04234 | O-RING | 35001- | |
| 23 | 07058-00007 | PLUG | 35001- | |
| 24 | 01010-50825 | BOLT | 35001- | |
| 25 | 01643-30823 | WASHER | 35001- | |
| 26 | 155-04-11211 | BRACKET | 35001- | |
| 27 | 01010-51225 | BOLT | 35001- | |
| 28 | 01602-21236 | WASHER | 35001- | |
| 29 | 195-04-12280 | ELBOW | 35217- | |
| 29 | 07217-51521 | ELBOW | 35001-35216 | |
| WOODY TERRAIN SPEC. | ||||
| 4 | 07050-01200 | CAP,FUEL TANK | 35001- | |
| 4 | 07050-00002 | GASKET | 35001- |
