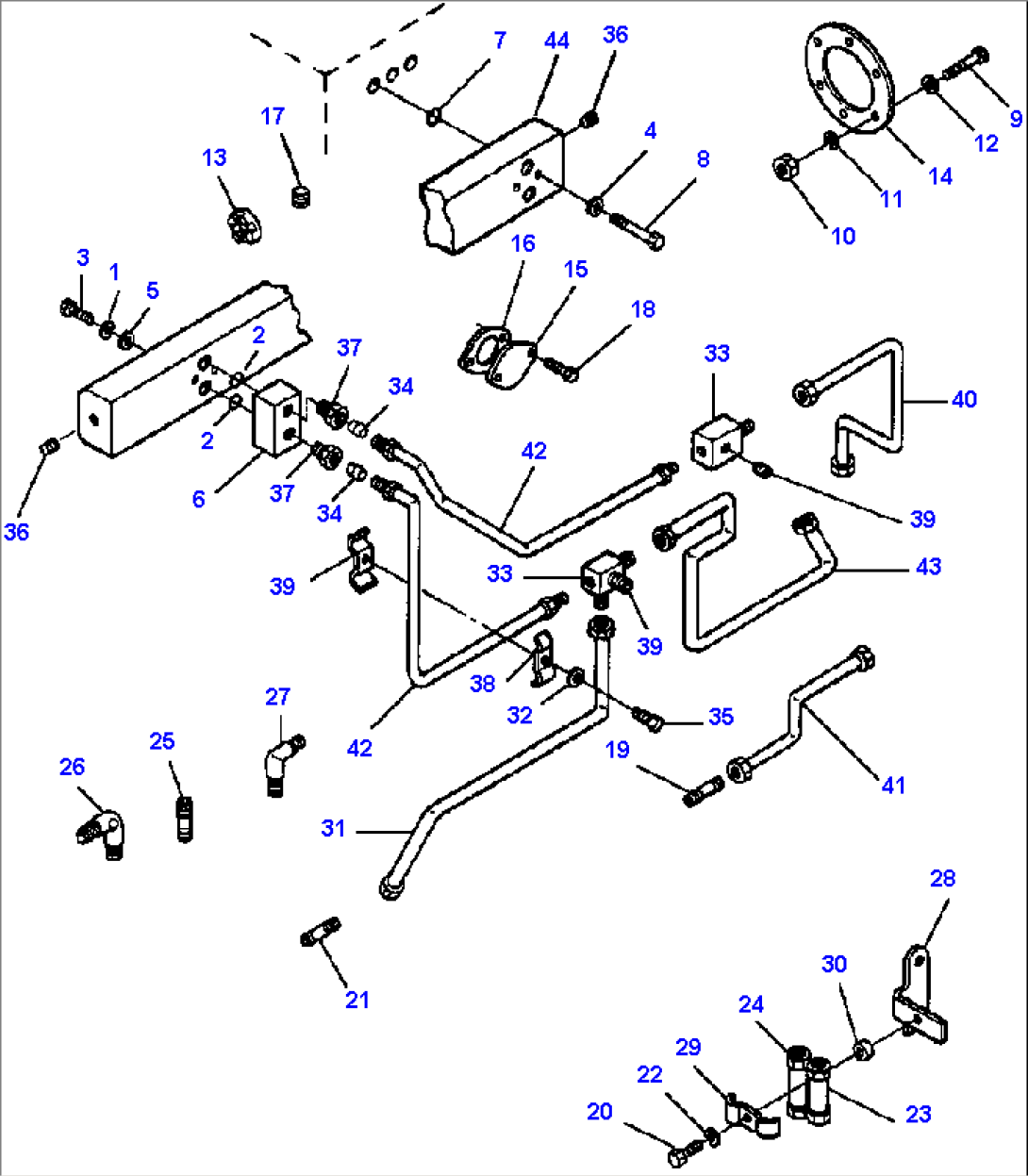

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1238 104 H1 | WASHER, LOCK | ||
| 2 | 1238 141 H1 | O-RING | ||
| 3 | 1238 208 H1 | BOLT | ||
| 4 | 1238 234 H1 | WASHER, LOCK | ||
| 5 | 1294 589 H1 | WASHER, PLAIN | ||
| 6 | 1238 811 H1 | CONNECTION, FUEL BLOCK | ||
| 7 | 1239 010 H1 | O-RING | ||
| 8 | 1239 019 H1 | BOLT | ||
| 9 | 1238 034 H1 | BOLT | ||
| 10 | 1238 079 H1 | NUT | ||
| 11 | 1238 108 H1 | WASHER, LOCK | ||
| 12 | 1240 031 H1 | WASHER, PLAIN | ||
| 13 | 1239 819 H1 | SPIDER, JAW COUPLING | ||
| 14 | 1294 586 H1 | GASKET, FUEL PUMP | ||
| 15 | 1238 781 H1 | FLANGE, WELD | ||
| 16 | 1238 784 H1 | GASKET, AIR COMPRESSOR | ||
| 17 | 1239 300 H1 | PLUG, PIPE | ||
| 18 | 1239 321 H1 | BOLT, W/WASHER | ||
| 19 | 1239 409 H1 | CONNECTOR, FEMALE | ||
| 20 | 1238 045 H1 | BOLT | ||
| 21 | 1240 009 H1 | CONNECTOR, MALE | ||
| 22 | 1240 059 H1 | WASHER, PLAIN | ||
| 23 | 1239 571 H91 | VALVE, CHECK | ||
| 24 | 1239 572 H91 | VALVE, CHECK | ||
| 25 | 1239 641 H1 | UNION, MALE | ||
| 26 | 1239 644 H1 | ELBOW, MALE UNION | ||
| 27 | 1239 645 H1 | ELBOW, MALE UNION | ||
| 28 | 1239 856 H1 | BRACKET, CHECK VALVE | ||
| 29 | 1239 857 H1 | BRACKET, CHECK VALVE | ||
| 30 | 1239 922 H1 | SPACER, MOUNTING | ||
| 31 | 1241 363 H1 | TUBE, FUEL SUPPLY | ||
| 32 | 1238 237 H1 | WASHER, PLAIN | ||
| 33 | 1238 441 H1 | TEE, FEMALE ADAPTER | ||
| 34 | 1239 027 H1 | SEAL, FERRULE | ||
| 35 | 1296 101 H1 | BOLT, W/WASHER | ||
| 37 | 1239 618 H1 | CONNECTOR, TUBE | ||
| 38 | 1239 869 H1 | CLAMP, TUBE | ||
| 39 | 1239 870 H1 | CLAMP, TUBE | ||
| 40 | 1239 871 H1 | TUBE, FUEL SUPPLY | ||
| 41 | 1239 874 H1 | TUBE, FUEL DRAIN | ||
| 42 | 1239 897 H91 | TUBE, FUEL SUPPLY | ||
| 43 | 1239 928 H1 | TUBE, FUEL DRAIN | ||
| 44 | 1238 810 H91 | MANIFOLD, FUEL | ||
| 36 | 1238 933 H1 | PLUG, PIPE |
