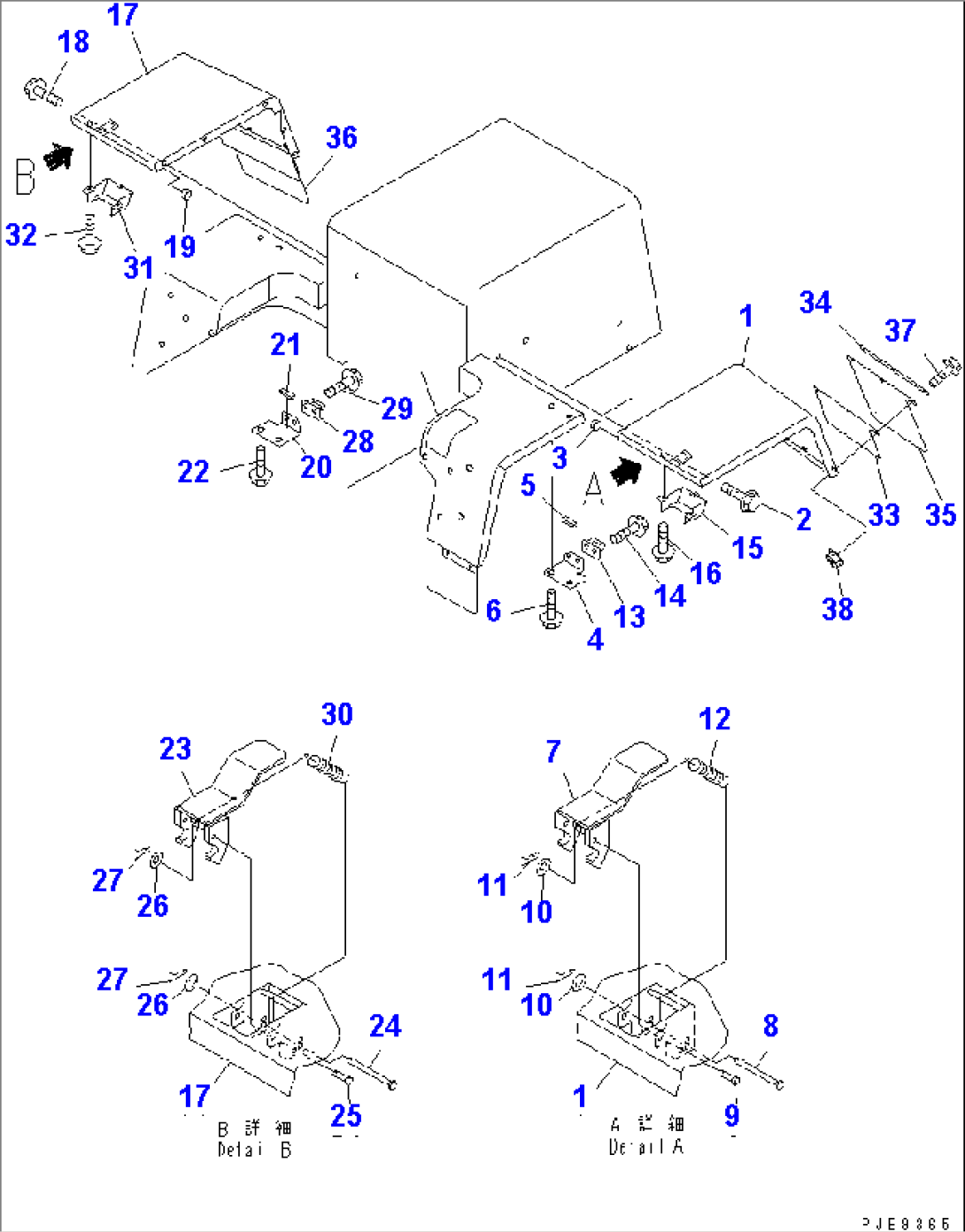

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-54-24670 | FENDER,L.H. | 50001- | |
| 2 | 01435-01225 | BOLT | 50001- | |
| 3 | 09415-01008 | CAP | 50001- | |
| 4 | 417-54-24392 | BRACKET,L.H. | 50001- | |
| 5 | 417-54-24270 | SHEET | 50001- | |
| 6 | 01435-01225 | BOLT | 50001- | |
| 7 | 417-54-24730 | LATCH | 50001- | |
| 8 | 415-54-11630 | PIN | 50001- | |
| 9 | 04205-10622 | PIN | 50001- | |
| 10 | 01641-20608 | WASHER | 50001- | |
| 11 | 04052-10633 | PIN,SNAP | 50001- | |
| 12 | 417-54-24610 | SPRING | 50001- | |
| 13 | 417-54-24620 | STRIKER | 50001- | |
| 14 | 01435-01016 | BOLT | 50001- | |
| 15 | 417-54-24640 | COVER | 50001- | |
| 16 | 01435-01016 | BOLT | 50001- | |
| 17 | 417-54-24660 | FENDER,R.H. | 50001- | |
| 18 | 01435-01225 | BOLT | 50001- | |
| 19 | 09415-01008 | CAP | 50001- | |
| 20 | 417-54-24482 | BRACKET,R.H. | 50001- | |
| 21 | 417-54-24270 | SHEET | 50001- | |
| 22 | 01435-01225 | BOLT | 50001- | |
| 23 | 417-54-24730 | LATCH | 50001- | |
| 24 | 415-54-11630 | PIN | 50001- | |
| 25 | 04205-10622 | PIN | 50001- | |
| 26 | 01641-20608 | WASHER | 50001- | |
| 27 | 04052-10633 | PIN,SNAP | 50001- | |
| 28 | 417-54-24620 | STRIKER | 50001- | |
| 29 | 01435-01016 | BOLT | 50001- | |
| 30 | 417-54-24610 | SPRING | 50001- | |
| 31 | 417-54-24640 | COVER | 50001- | |
| 32 | 01435-01016 | BOLT | 50001- | |
| 33 | 417-54-24930 | PLATE | 50001- | |
| 34 | 417-54-24690 | PLATE | 50001- | |
| 35 | 417-T80-2220 | SHEET,L.H. | 50001- | |
| 36 | 417-T80-2230 | SHEET,R.H. | 50001- | |
| 37 | 01435-01225 | BOLT | 50001- | |
| 38 | 01584-01210 | NUT | 50001- |
