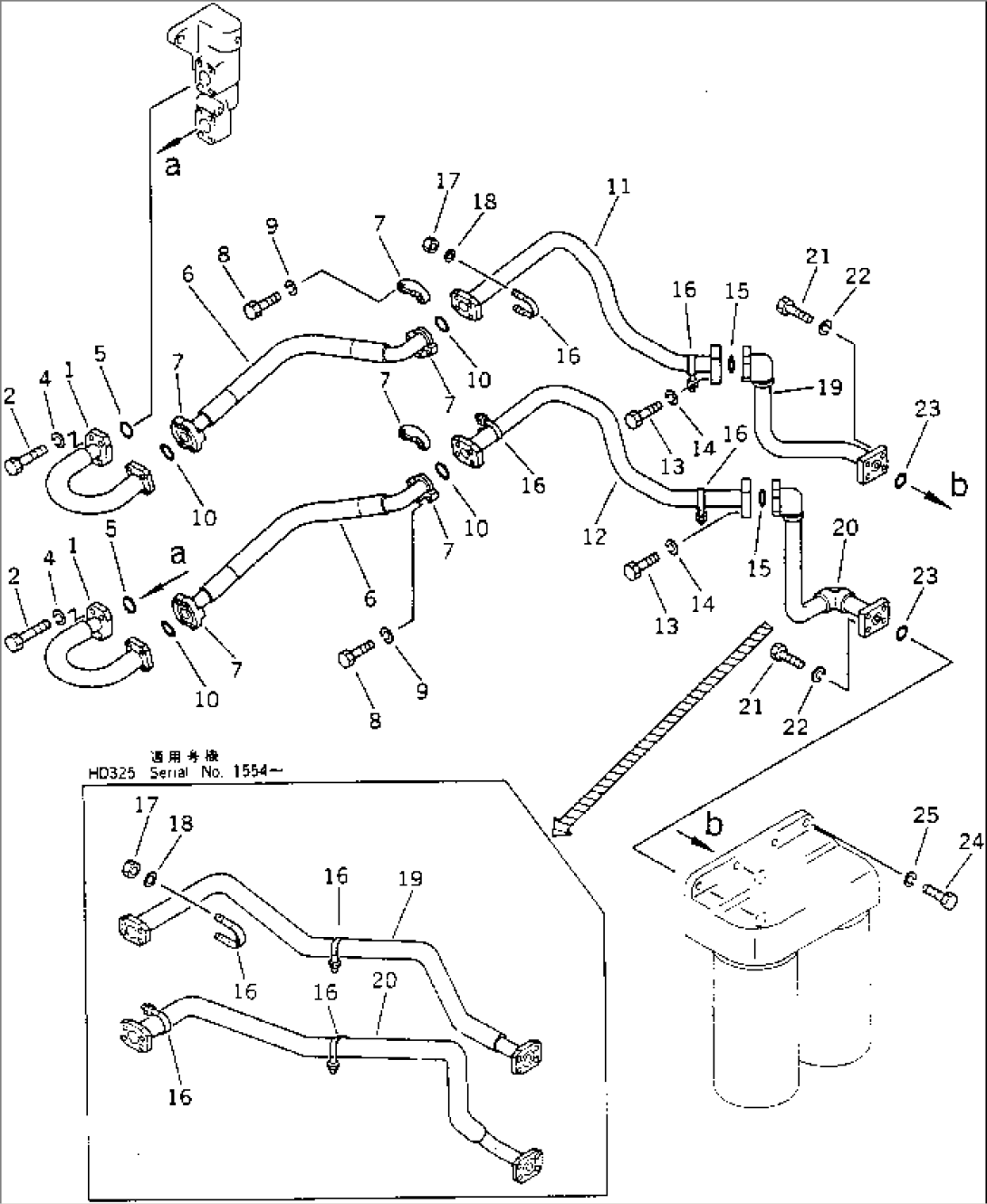

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-01-45111 | TUBE | 1501- | |
| 2 | 01010-51040 | BOLT | 1501- | |
| 4 | 01602-21030 | WASHER,SPRING | 1501- | |
| 5 | 07000-23038 | O-RING | 1501- | |
| 6 | 566-01-45210 | HOSE | 1554- | |
| 6 | \0\07114-01207 | HOSE | 1501-1553 | |
| 7 | 07371-31465 | FLANGE | 1501- | |
| 8 | 07372-21240 | BOLT | 1501- | |
| 9 | 01602-21236 | WASHER,SPRING | 1501- | |
| 10 | 07000-23048 | O-RING | 1501- | |
| 11 | 566-01-45121 | TUBE | 1501-1553 | |
| 12 | 566-01-45131 | TUBE | 1501-1553 | |
| 13 | 01010-51035 | BOLT | 1501-1553 | |
| 14 | 01602-21030 | WASHER,SPRING | 1501-1553 | |
| 15 | 07000-13032 | O-RING | 1501-1553 | |
| 16 | 07283-24346 | CLIP | 1501-1553 | |
| 17 | 01599-01011 | NUT | 1501- | |
| 18 | 01643-31032 | WASHER | 1501- | |
| 19 | 566-01-45143 | TUBE | 1554- | |
| 19 | 566-01-45142 | TUBE | 1501-1553 | |
| 20 | 566-01-45152 | TUBE | 1554- | |
| 20 | 566-01-45151 | TUBE | 1501-1553 | |
| 21 | 01010-51040 | BOLT | 1501- | |
| 22 | 01602-21030 | WASHER,SPRING | 1501- | |
| 23 | 07000-23048 | O-RING | 1501- | |
| 24 | 01010-51035 | BOLT | 1501- | |
| 25 | 01602-21030 | WASHER,SPRING | 1501- |
