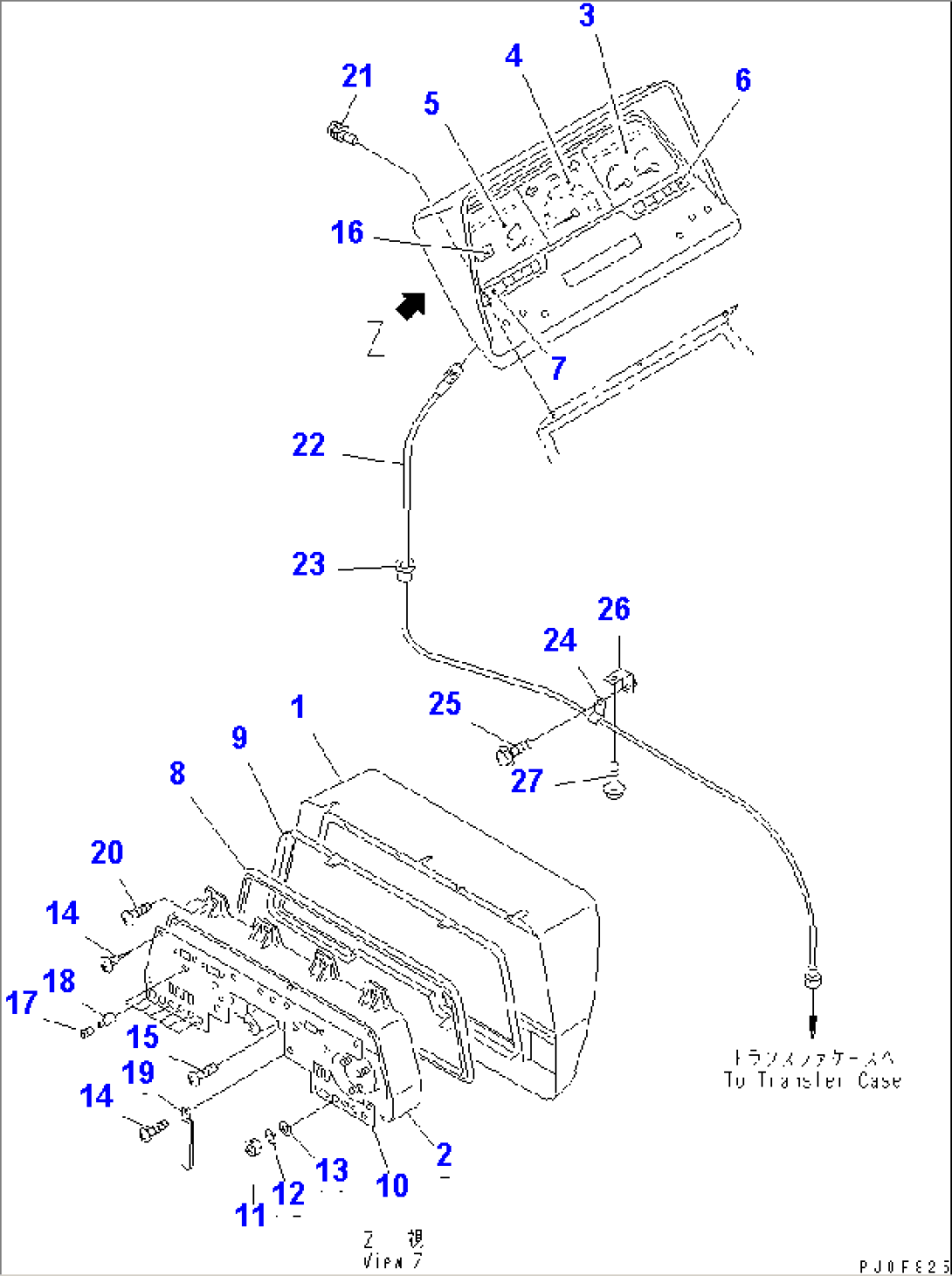

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-25210 | PANEL ASS'Y | 11258-12000 | |
| 2 | 42A-06-15221 | HOUSING,LOWER | 11258-12000 | |
| 3 | 363-06-35311 | GAUGE,TEMPERATURE | 11258-12000 | |
| 4 | 417-06-25141 | SPEEDOMETER | 11258-12000 | |
| 5 | 363-06-35381 | GAUGE,FUEL | 11258-12000 | |
| 6 | 417-06-25161 | LENS,A | 11258-12000 | |
| 7 | KA1182-KB7600 | LENS,B | 11258-12000 | |
| 8 | 42A-06-15280 | PLATE,SHADOW | 11258-12000 | |
| 9 | 42A-06-15290 | COVER,FRONT | 11258-12000 | |
| 10 | 363-06-35350 | PLATE,PRINT | 11258-12000 | |
| 11 | 01580-60302 | NUT | 11258-12000 | |
| 12 | 01601-20307 | WASHER | 11258-12000 | |
| 13 | 01641-20305 | WASHER,SPRING | 11258-12000 | |
| 14 | 01370-00412 | SCREW | 11258-12000 | |
| 15 | 01023-10408 | SCREW | 11258-12000 | |
| 16 | KA28300-KB7210 | METER,SERVICE | 11258-12000 | |
| 17 | 363-06-35360 | SOCKET | 11258-12000 | |
| 18 | 7815-11-1010 | BULB, 1.4W | 11258-12000 | |
| 19 | 42A-06-15340 | CLIP | 11258-12000 | |
| 20 | 42A-06-15350 | SCREW | 11258-12000 | |
| 21 | 01023-70616 | SCREW | 11258-12000 | |
| 22 | 415-06-25130 | CABLE | 11258-12000 | |
| 23 | 415-06-12140 | GROMMET | 11258-12000 | |
| 24 | 08036-00814 | CLIP | 11258-12000 | |
| 25 | 01435-01035 | BOLT | 11258-12000 | |
| 26 | 415-06-25120 | PLATE | 11258-12000 | |
| 27 | 01435-01016 | BOLT | 11258-12000 |
