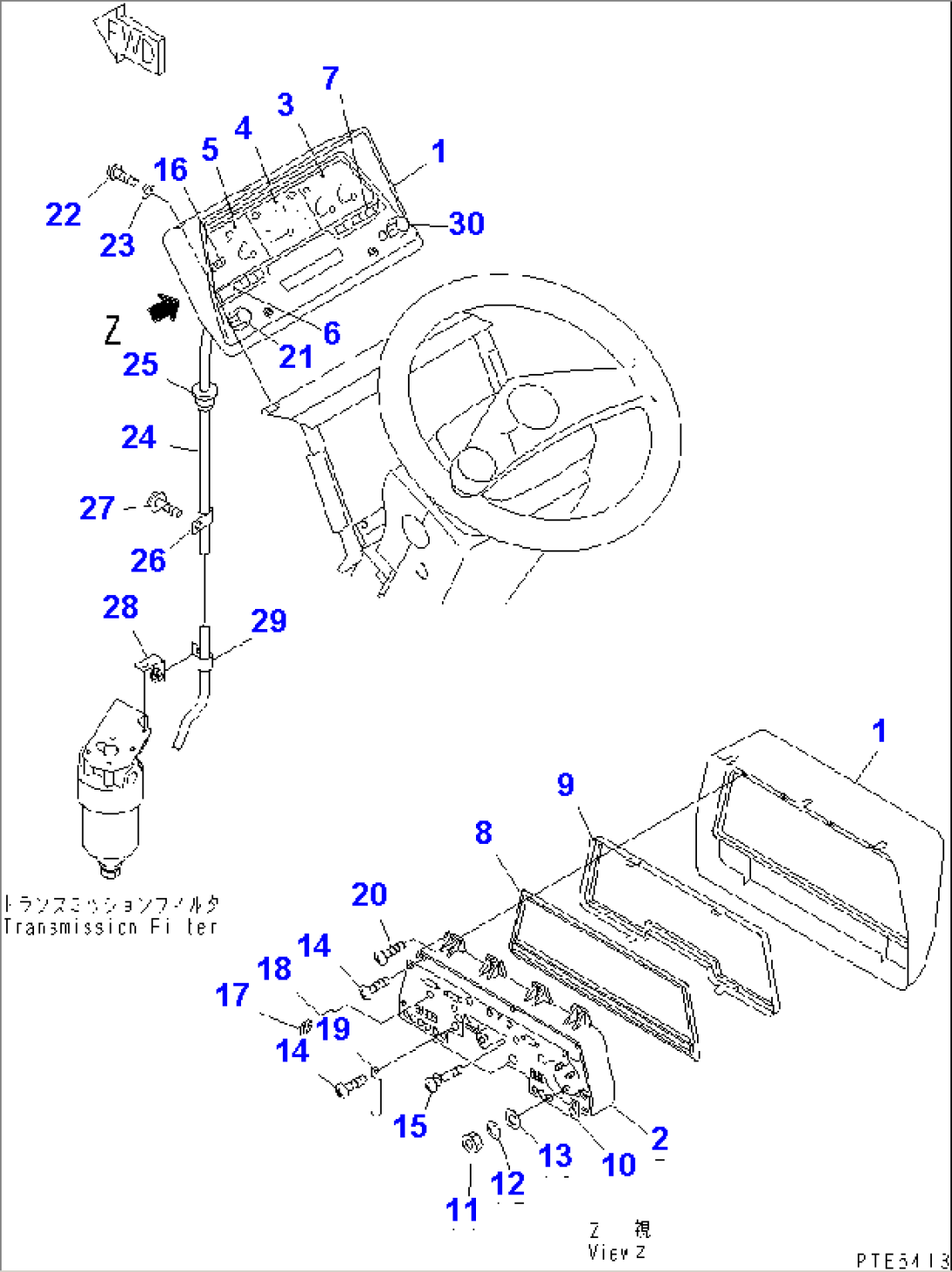

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-06-25110 | PANEL ASS'Y,INSTRUMENT | R50001- | ||
| 1 | 417-06-25120 | PANEL | R50001- | |
| 2 | 42A-06-15221 | HOUSING,LOWER | R50001- | |
| 3 | 42A-06-15230 | GAUGE,TEMPERATURE | R50001- | |
| 4 | 417-06-25140 | SPEEDOMETER | R50001- | |
| 5 | 363-06-35380 | GAUGE,FUEL | R50001- | |
| 6 | 417-06-25150 | LENS,L.H. | R50001- | |
| 7 | 417-06-25160 | LENS,R.H. | R50001- | |
| 8 | 42A-06-15280 | PLATE,SHADOW | R50001- | |
| 9 | 42A-06-15290 | COVER,FRONT | R50001- | |
| 10 | 363-06-35350 | PLATE,CIRCUIT | R50001- | |
| 11 | 01580-60302 | NUT | R50001- | |
| 12 | 01601-20307 | WASHER,SPRING | R50001- | |
| 13 | 01641-20305 | WASHER | R50001- | |
| 14 | 01370-00412 | SCREW | R50001- | |
| 15 | 01023-10408 | SCREW | R50001- | |
| 16 | KA28300-KB7210 | METER,SERVICE, 24V | R50001- | |
| 17 | 363-06-35360 | SOCKET | R50001- | |
| 18 | 7815-11-1010 | BULB, 1.4W | R50001- | |
| 19 | 42A-06-15340 | CLIP | R50001- | |
| 20 | 42A-06-15350 | SCREW | R50001- | |
| 21 | 416-06-21130 | SWITCH,CUT-OFF | R50001- | |
| 21 | 416-06-21160 | SWITCH | R50001- | |
| 21 | 416-06-21150 | KNOB | R50001- | |
| 22 | 01220-70616 | SCREW | R50001- | |
| 23 | 01642-40608 | WASHER | R50001- | |
| 24 | 08603-40025 | CABLE | R50001- | |
| 25 | 415-06-12140 | GROMMET | R50001- | |
| 26 | 08036-00814 | CLIP | R50001- | |
| 27 | 01435-01016 | BOLT | R50001- | |
| 28 | 427-43-11370 | BRACKET | R50001- | |
| 29 | 08036-10814 | CLIP | R50001- | |
| 30 | 416-06-21120 | SWITCH,WORK LAMP | R50001- | |
| 30 | 205-06-71370 | SWITCH | R50001- | |
| 30 | 416-06-21140 | KNOB | R50001- |
