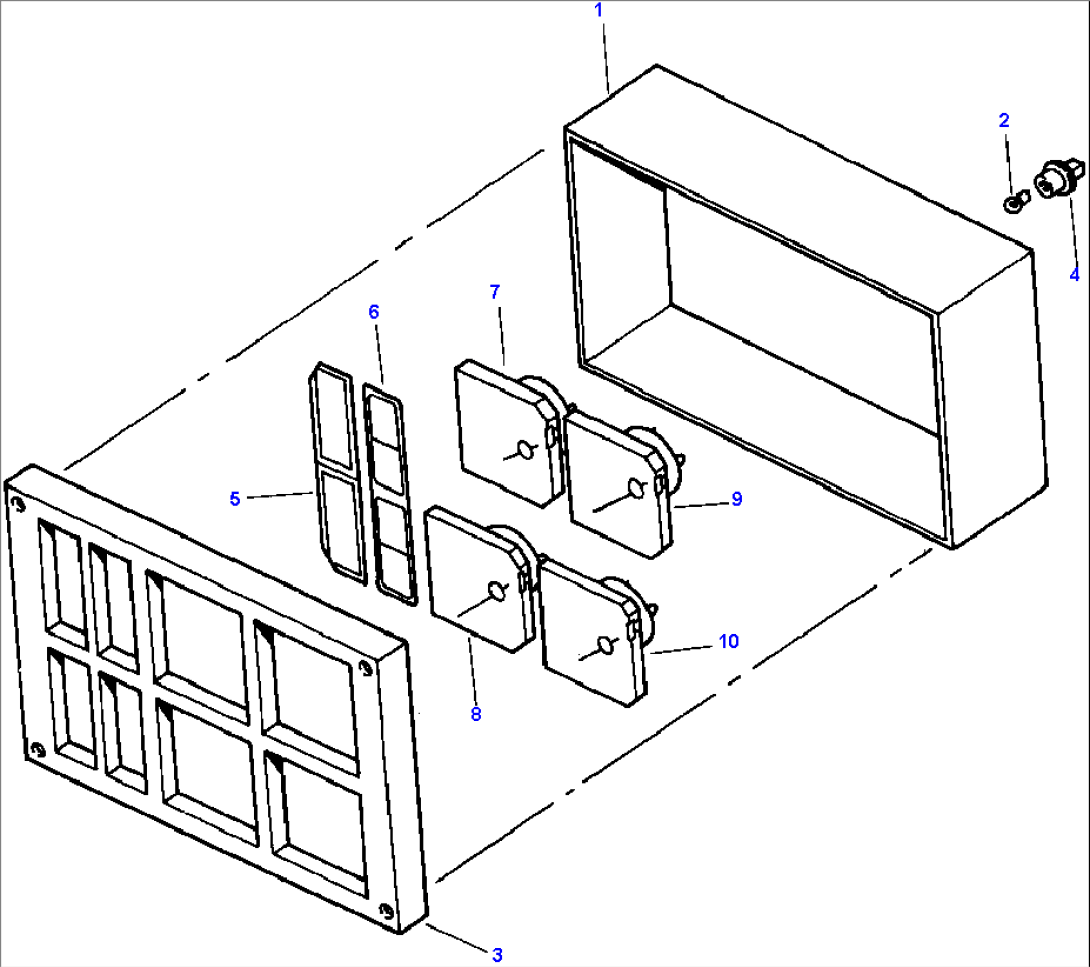

| Item | Part No. | Part Name | Qty | Serial No. |
| 1222 481 H91 | CLUSTER ASSEMBLY, GAUGE | |||
| 1 | 739 719 C2 | LENS, WARNING | ||
| 2 | 739 749 C2 | LENS, WARNING | ||
| 3 | 1216 148 H1 | GAUGE, CONVERTER TEMPERATURE | ||
| 4 | 1216 147 H1 | GAUGE, COOLANT TEMPERATURE | ||
| 5 | 1104 081 C1 | VOLTMETER | ||
| 6 | 739 878 C1 | GAUGE, ENGINE OIL PRESSURE | ||
| 7 | 27 727 R1 | BULB, LAMP - TRADE NO. 464 | ||
| 8 | 121 608 C1 | BEZEL | ||
| (NSS) | GASKET, BEZEL | |||
| 9 | 121 611 C1 | SOCKET, BULB | ||
| 10 | (NSS) | HOUSING, CLUSTER | ||
| (NSS) | SCREW, MOUNTING |
