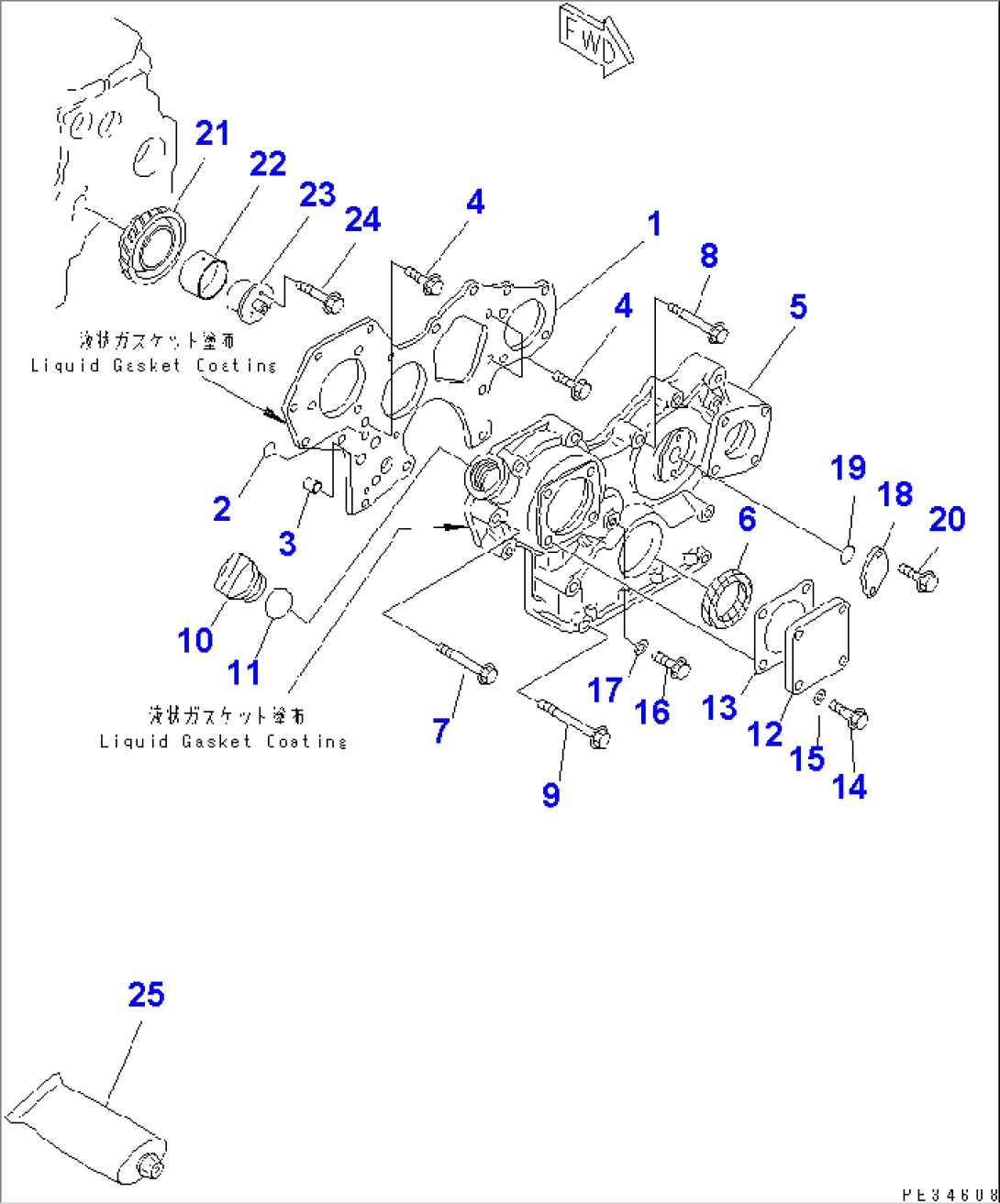

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | YM129100-01520 | FLANGE | 03250- | |
| 2 | YM24311-000160 | O-RING | 03250- | |
| 3 | YM129795-01950 | PIPE | 03250- | |
| 4 | YM26106-080162 | BOLT | 03250- | |
| 5 | YM129100-01590 | FRONT COVER ASS'Y | 27663- | |
| 6 | YM129795-01800 | SEAL, FRONT | 03250- | |
| 7 | YM26106-080452 | BOLT | 03250- | |
| 8 | YM26106-080552 | BOLT | 03250- | |
| 9 | YM26106-080852 | BOLT | 03250- | |
| 10 | YM124160-01751 | CAP | 03250- | |
| 11 | YM24311-000320 | O-RING | 03250- | |
| 12 | YM124240-01871 | COVER | 03250- | |
| 13 | YM124240-01883 | GASKET (KIT) | 24240- | |
| 14 | YM26106-080122 | BOLT | 03250- | |
| 15 | YM22190-080002 | SEAL,RING | 60968- | |
| 15 | \0\YM43400-500410 | WASHER,SEAL | 03250-60967 | |
| 16 | YM26106-080162 | BOLT | 03250- | |
| 17 | YM22190-080002 | SEAL,RING | 60968- | |
| 17 | \0\YM43400-500410 | WASHER,SEAL | 03250-60967 | |
| 18 | YM121023-01550 | COVER | 03250- | |
| 19 | YM24341-000240 | O-RING | 13245- | |
| 20 | YM26106-060122 | BOLT | 03250- | |
| YM129150-25101 | IDLER GEAR ASS'Y | 03250- | ||
| 21 | \6\ | GEAR | 27663- | |
| 22 | YM129150-25061 | BUSHING | 03250- | |
| 23 | YM129100-25061 | SHAFT | 03250- | |
| 24 | YM26106-080452 | BOLT | 03250- | |
| 25 | YM977770-01212 | LIQUID GASKET | 03250- |
