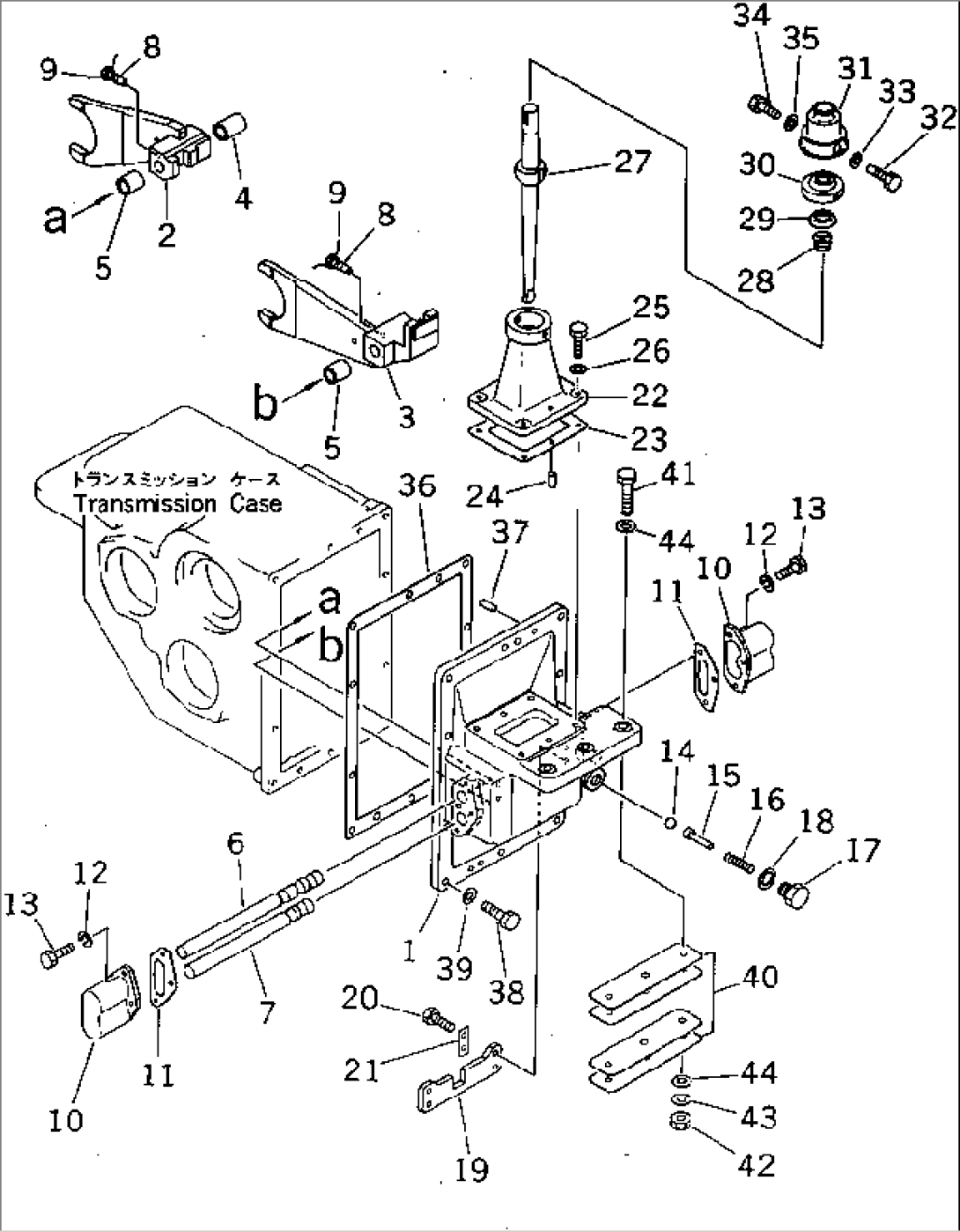

GEAR SHIFT FORK

Item	Part No.	Part Name	Qty	Serial No.
	(273-14-11000)	TRANSMISSION ASS'Y		10011-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2407.
1	273-14-11120	CASE		10011-
2	273-14-11530	FORK		10011-
3	273-14-11540	FORK		10011-
4	273-14-11570	COLLAR		10011-
5	273-14-11560	COLLAR		10011-
6	273-14-11520	SHAFT		10011-
7	273-14-11510	SHAFT		10011-
8	232-14-17451	BOLT		10011-
9	04059-01025	WIRE		10011-
10	232-14-17140	COVER		10011-
11	232-14-17150	GASKET		10011-
12	01602-20825	WASHER,SPRING		10011-
13	01010-50825	BOLT		10011-
14	04260-01587	BALL		10011-
15	232-14-17490	GUIDE		10011-
16	273-14-11581	SPRING		10430-
	273-14-11580	SPRING		10011-10429
17	273-14-11590	PLUG		10430-
	232-14-17373	PLUG		10011-10429
18	07003-12026	GASKET		10011-
19	273-14-11550	GUIDE		10011-
20	01010-51025	BOLT		10011-
21	232-14-13190	LOCK		10011-
22	273-14-11170	BRACKET		10011-
23	273-14-11181	GASKET		10449-
	\0\273-14-11180	GASKET		10011-10448
24	04020-01228	PIN,DOWEL		10011-
25	01010-51030	BOLT		10011-
26	01643-31032	WASHER		10011-
27	273-14-11250	LEVER		10011-
28	232-14-17640	SPRING		10011-
29	238-14-15180	CAP		10011-
30	232-14-17660	COVER		10011-
31	232-14-17810	BOOT		10011-
32	232-14-17672	BOLT		10011-
33	01643-31032	WASHER		10011-
34	01010-50812	BOLT		10011-
35	01643-20823	WASHER		10011-
36	273-14-11131	GASKET		10449-
	\0\273-14-11130	GASKET		10011-10448
37	04020-01228	PIN,DOWEL		10011-
38	01010-51235	BOLT		10011-
39	01643-31232	WASHER		10011-
40	273-14-00010	SHIM ASS'Y		10011-
	\6\	SHIMÂ¤ 0.2MM		10011-
	\6\	SHIMÂ¤ 0.5MM		10011-
41	01010-51265	BOLT		10011-
42	01580-11210	NUT		10011-
43	01643-31232	WASHER		10011-
44	01643-31232	WASHER		10011-
