| Item | Part No. | Part Name | Qty | Serial No. |

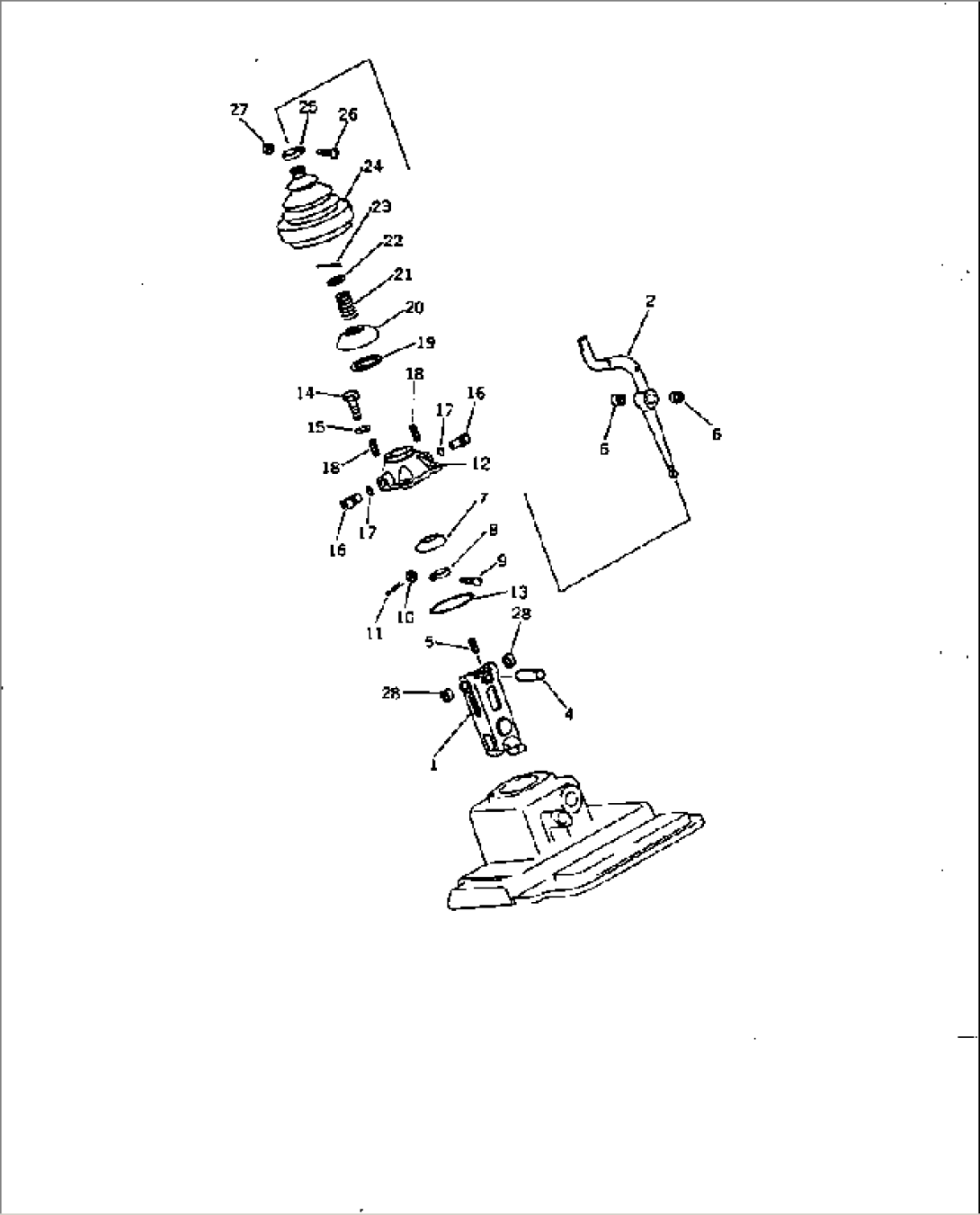

| (144-14-00330) | TRANSMISSION ASS'Y | 45001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.231 TO 237. | ||||
| 1 | 141-14-32612 | GATE | 45001- | |
| 2 | 144-14-13210 | LEVER | 45001- | |
| 4 | 131-14-42630 | SHAFT | 45001- | |
| 5 | 04025-00412 | PIN,ROLL | 45001- | |
| 6 | 06120-01612 | BEARING,NEEDLE | 45001- | |
| 7 | 141-14-32770 | COVER | 45001- | |
| 8 | 144-14-12240 | CLIP | 45001- | |
| 9 | 150-15-21150 | SCREW | 45001- | |
| 10 | 150-15-21140 | NUT | 45001- | |
| 11 | 04050-01012 | PIN,COTTER (KIT) | 45001- | |
| 12 | 141-14-32711 | ADAPTER | 45001- | |
| 13 | 07000-02100 | O-RING (KIT) | 45001- | |
| 14 | 01010-81030 | BOLT | 45001- | |
| 15 | 01602-21030 | WASHER | 45001- | |
| 16 | 141-14-32721 | SHAFT | 45001- | |
| 17 | 07000-02015 | O-RING (KIT) | 45001- | |
| 18 | 04025-00432 | PIN,ROLL | 45001- | |
| 19 | 141-14-32760 | SEAL | 45001- | |
| 20 | 141-14-32731 | COVER | 45001- | |
| 21 | 141-14-32751 | SPRING | 45001- | |
| 22 | 141-14-32780 | WASHER | 45001- | |
| 23 | 04050-05040 | PIN,COTTER (KIT) | 45001- | |
| 24 | 141-14-32630 | BOOT | 45001- | |
| 25 | 150-14-15260 | CLAMP | 45001- | |
| 26 | 01210-40416 | SCREW | 45001- | |
| 27 | 01580-10403 | NUT | 45001- | |
| 28 | 06120-01612 | BEARING,NEEDLE | 45001- |
