| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-70-12211 | BUCKET, GENERAL PURPOSE | ||
| 2 | 416-70-12230 | EDGE, SIDE CUTTING | ||
| 3 | 416-70-A1120 | BLADE, CUTTING | ||
| 4 | 417-70-12141 | CORNER, LH | ||
| 5 | 417-70-12151 | CORNER, RH | ||
| 6 | 416-70-12E60 | SKID |
- Главная
- Каталог запчастей
- Колесные погрузчики
- 512 s/n c003001 up
- Work equipment
- General purpose bucket 1.75 cubic yard / 1.4 cubic meter
Поиск по каталогу

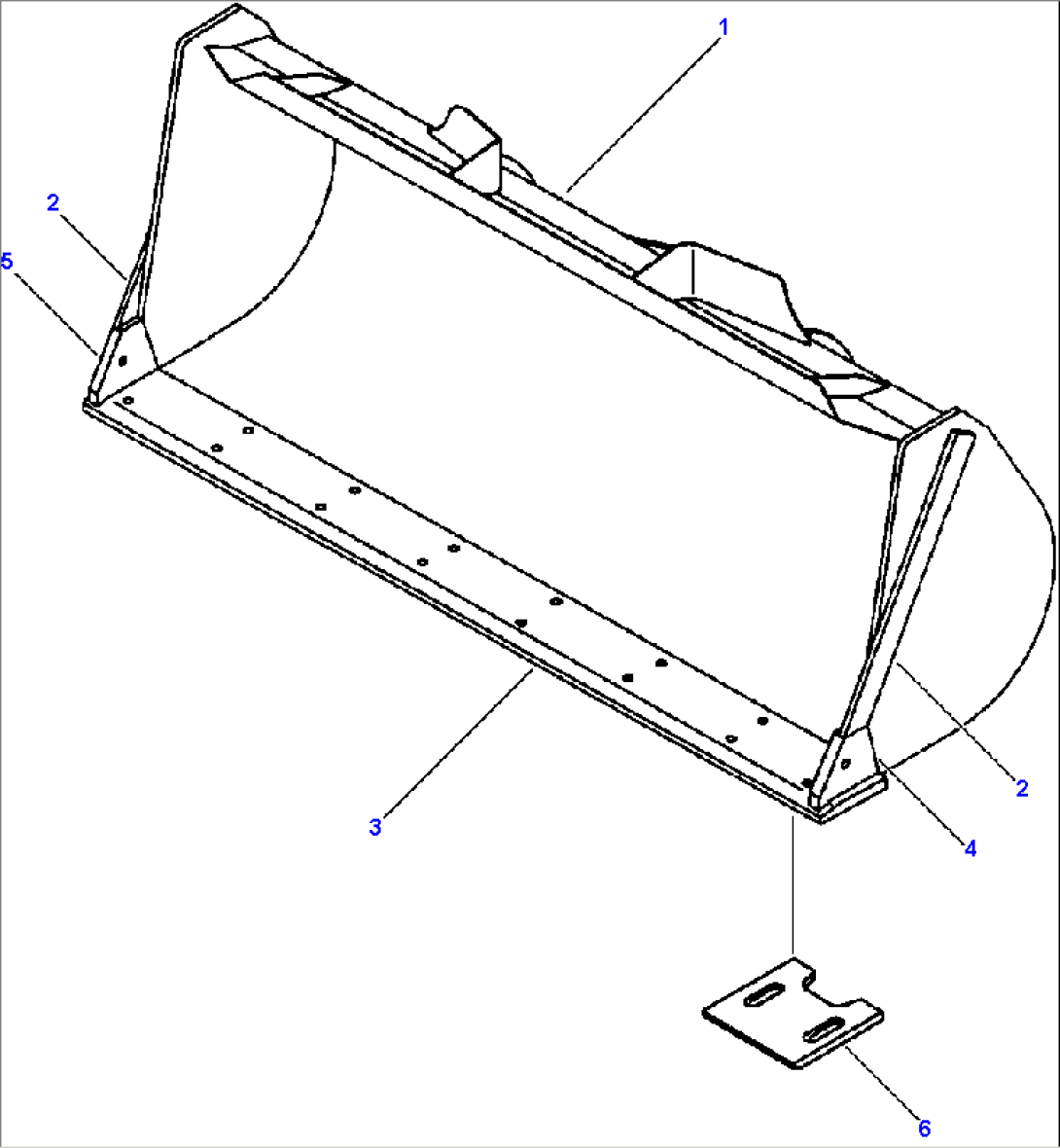

GENERAL PURPOSE BUCKET 1.75 CUBIC YARD / 1.4 CUBIC METER
