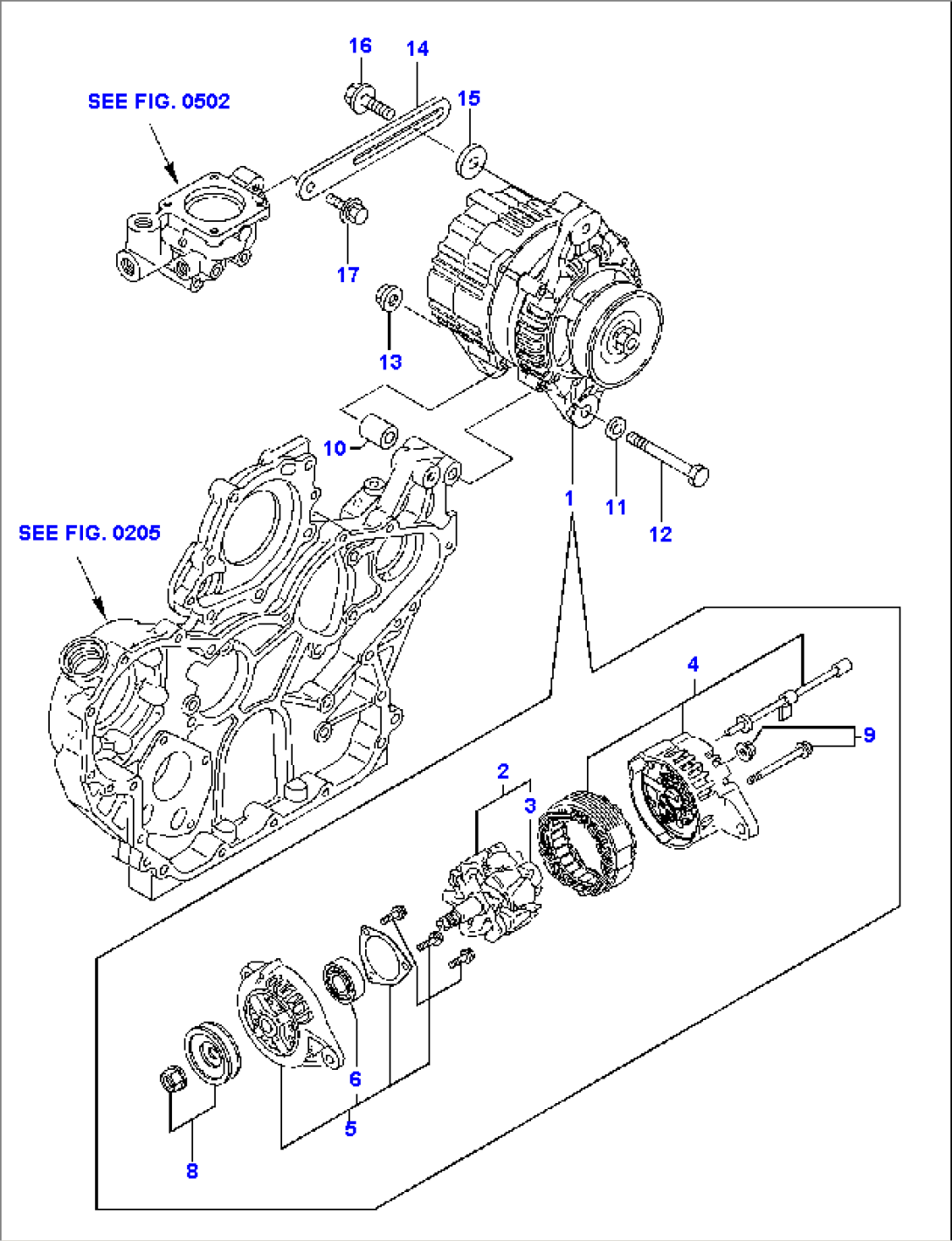

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (21D-01-11300) | ENGINE, ASSY. | ||
| \0 | (21D-01-11301) | ENGINE, ASSY. | ||
| 1 | YM123910-77210 | ALTERNATOR | ||
| 2 | YM123910-77740 | ROTOR,ASSY. | ||
| 3 | YM129900-77810 | BALL BEARING | ||
| 4 | YM123910-77760 | COIL ASSY.,FIELD | ||
| 5 | YM129900-77890 | COVER, ASSY. | ||
| 6 | YM129900-77900 | BALL BEARING | ||
| 8 | YM123910-77910 | PULLEY | ||
| 9 | YM129900-77920 | KIT, SCREW | ||
| 10 | YM123900-77340 | SPACER | ||
| 11 | YM22137-100000 | WASHER | ||
| 12 | YM26116-101202 | BOLT | ||
| 13 | YM26306-100002 | NUT | ||
| 14 | YM123900-77330 | ADJUSTER, BELT | ||
| 15 | YM121236-77340 | SPACER | ||
| 16 | YM119005-77350 | BOLT | ||
| 17 | YM26014-080252 | BOLT | ||
| SEE FIG. 0205 | ||||
| SEE FIG. 0502 |
