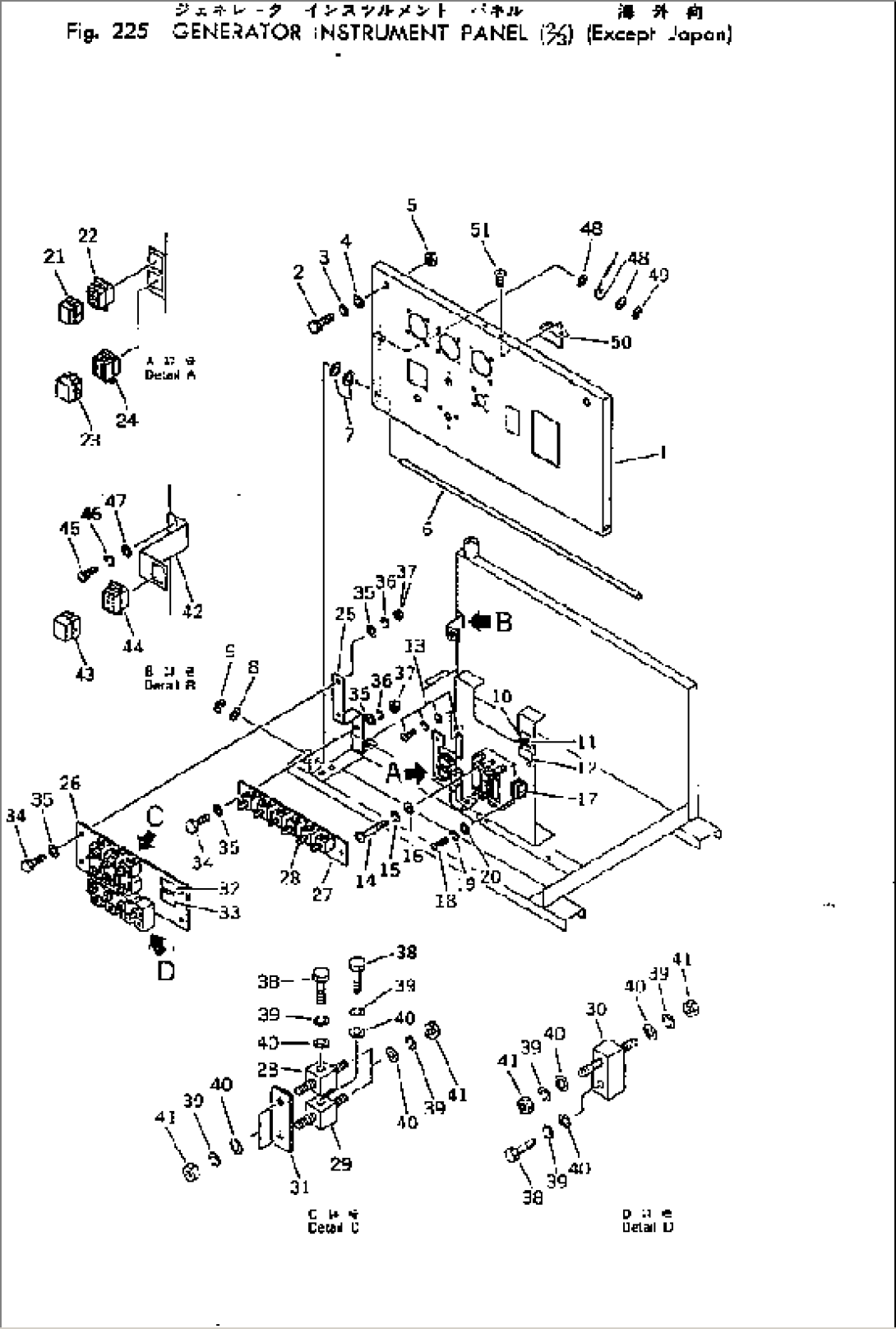

| Item | Part No. | Part Name | Qty | Serial No. |
| (TE6500-2BA) | PANEL ASS'Y,(TYPE A) | 3001- | ||
| (TE6500-2BB) | PANEL ASS'Y,(TYPE B) | 3001- | ||
| (TE6500-2BC) | PANEL ASS'Y,(TYPE C) | 3001- | ||
| 1 | TEF3002 | PANEL,INSTRUMENT | 3001- | |
| 2 | TES51283 | SCREW | 3001- | |
| 3 | 01641-20812 | WASHER | 3001- | |
| 4 | TES408198 | RING | 3001- | |
| 5 | TEA56620-2 | NUT,SPRING | 3001- | |
| 6 | TES416039 | PIN | 3001- | |
| 7 | TES420071-2 | WASHER,PLASTIC | 3001- | |
| 8 | 01641-20812 | WASHER | 3001- | |
| 9 | TES420518 | RING,SNAP | 3001- | |
| 10 | TES-116 | SWITCH | 3001- | |
| 11 | TES400354-3 | PLATE | 3001- | |
| 12 | TES402260 | PLATE | 3001- | |
| 13 | TEJTP-20-6 | TERMINAL | 3001- | |
| 14 | 01235-40472 | SCREW | 3001- | |
| 15 | 01601-20410 | WASHER,SPRING | 3001- | |
| 16 | 01641-20405 | WASHER | 3001- | |
| 17 | TETH-20 | RELAY,THERMAL | 3001- | |
| 18 | 01235-40416 | SCREW | 3001- | |
| 19 | 01601-20410 | WASHER,SPRING | 3001- | |
| 20 | 01641-20405 | WASHER | 3001- | |
| 21 | TE1360-P-W | CONNECTOR,WHITE | 3001- | |
| 22 | TE1360-R-W | CONNECTOR,WHITE | 3001- | |
| 23 | TE1991-P-W | CONNECTOR,WHITE | 3001- | |
| 24 | TE1991-R-W | CONNECTOR,WHITE | 3001- | |
| 25 | TEF3003-3 | PLATE | 3001- | |
| 26 | TEF4001-1 | PLATE | 3001- | |
| 27 | TEF4001-2 | PLATE | 3001- | |
| 28 | TEF4002-1 | TERMINAL | 3001- | |
| 29 | TEF4002-2 | TERMINAL | 3001- | |
| 30 | TEF4002-3 | TERMINAL | 3001- | |
| 31 | TEF4002-4 | BAR,COPPER | 3001- | |
| 32 | TES411172 | PLATE | 3001- | |
| 33 | TEB4011 | PLATE | 3001- | |
| 34 | 01016-20620 | BOLT | 3001- | |
| 35 | 01641-20608 | WASHER | 3001- | |
| 36 | 01602-20619 | WASHER,SPRING | 3001- | |
| 37 | 01580-10605 | NUT | 3001- | |
| 38 | 01016-20812 | BOLT | 3001- | |
| 39 | 01602-20825 | WASHER,SPRING | 3001- | |
| 40 | 01641-20812 | WASHER | 3001- | |
| 41 | 01580-10806 | NUT | 3001- | |
| 42 | TES416044 | PLATE | 3001- | |
| 43 | TE1360-P-R | CONNECTOR,RED | 3001- | |
| 44 | TE1360-R-R | CONNECTOR,RED | 3001- | |
| 45 | 01235-40408 | SCREW | 3001- | |
| 46 | 01601-20410 | WASHER,SPRING | 3001- | |
| 47 | 01641-20405 | WASHER | 3001- | |
| 48 | 01641-20812 | WASHER | 3001- | |
| 49 | TES420518 | RING,SNAP | 3001- | |
| 50 | TES420070-2 | GUIDE | 3001- | |
| 51 | 01235-40408 | SCREW | 3001- |
