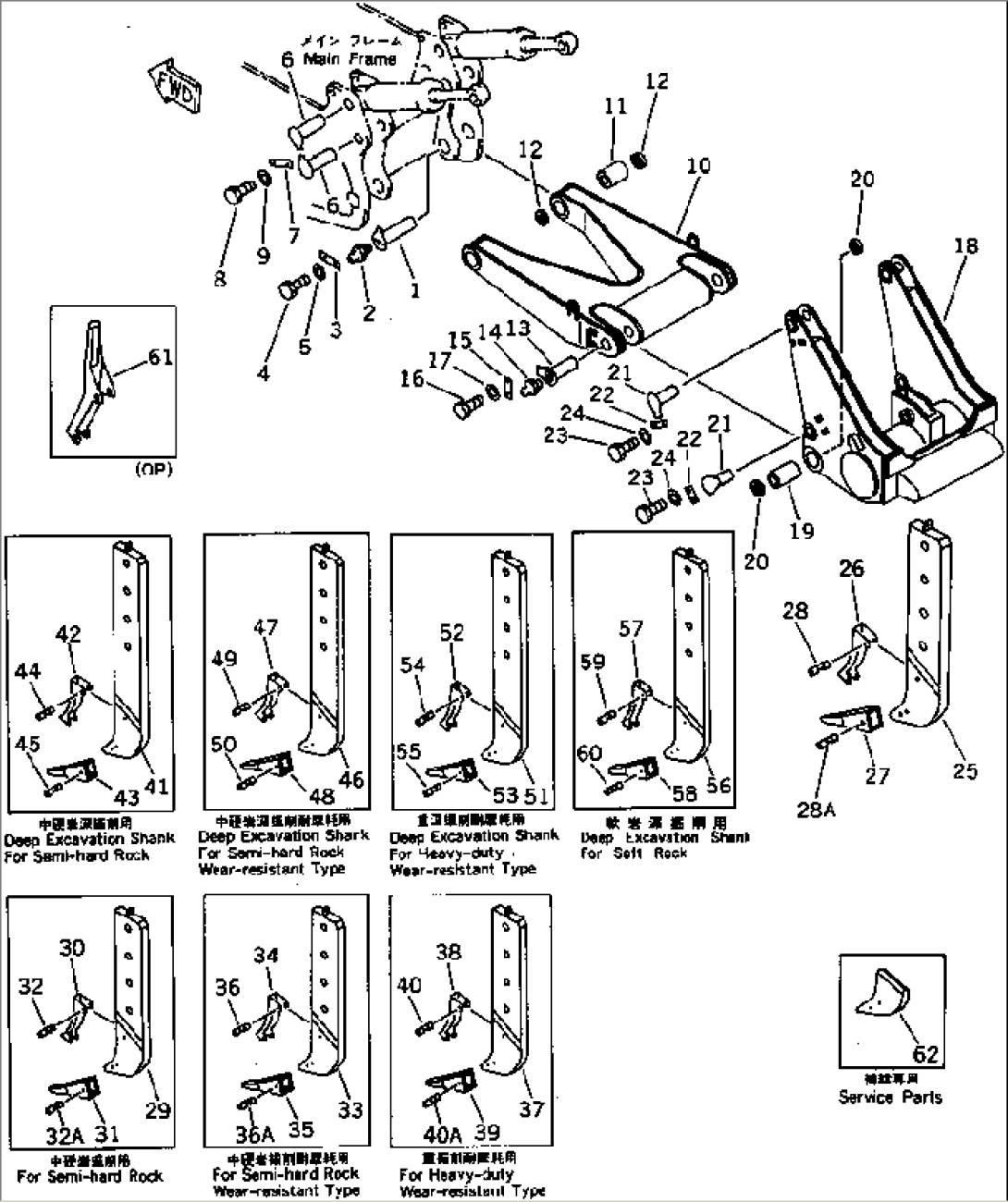

GIANT RIPPER (VARIABLE TYPE) (EXCEPT JAPAN)

GIANT RIPPER (VARIABLE TYPE) (EXCEPT JAPAN)
ItemPart No.Part NameQtySerial No.
G-1(\8\195-78-X1110)PIN GROUP15001-
====================
1195-78-71190PIN15001-
207020-00000FITTING,GREASE15001-
3195-78-21171PLATE15001-
401010-52040BOLT15001-
501643-32060WASHER15001-
6195-78-71170PIN15001-
7195-78-21171PLATE15001-
801010-52040BOLT15001-
901643-32060WASHER15001-
====================
G-2(\8\195-78-X1121)ARM GROUP15217-
G-2(\8\195-78-X1120)ARM GROUP15001-15216
====================
10195-78-71161ARM15217-
10\0\195-78-71160ARM15001-15216
11195-78-71220BUSHING15001-
12195-78-41320SEAL,DUST15001-
13195-78-71210PIN15001-
1407020-00000FITTING,GREASE15001-
15195-78-21171PLATE15001-
1601010-52040BOLT15001-
1701643-32060WASHER15001-
====================
G-3(\8\195-79-X1111)BEAM GROUP15369-
G-3(\8\195-79-X1110)BEAM GROUP15001-15368
====================
18195-79-51131BEAM15369-
18\0\195-79-51130BEAM15001-15368
19195-78-71220BUSHING15001-
20195-78-41320SEAL,DUST15001-
21195-78-71180PIN15001-
22195-78-21171PLATE15001-
2301010-52040BOLT15001-
2401643-32060WASHER15001-
====================
195-79-00071SHANK ASS'Y15207-
\0\195-79-00070SHANK ASS'Y15001-15206
25195-79-51110SHANK15001-
26195-78-71111PROTECTOR15207-
26\0\195-78-71110PROTECTOR15001-15206
27195-78-71140POINT15001-
2809244-02508PIN15001-
28A09244-02516PIN15001-
195-79-00081SHANK ASS'Y,LONG POINT15207-
\0\195-79-00080SHANK ASS'Y,LONG POINT15001-15206
29195-79-51110SHANK15001-
30195-78-71111PROTECTOR15207-
30\0\195-78-71110PROTECTOR15001-15206
31195-78-71250POINT,LONG15001-
3209244-02508PIN15001-
32A09244-02516PIN15001-
195-79-00091SHANK ASS'Y,LONG POINT15207-
\0\195-79-00090SHANK ASS'Y,LONG POINT15001-15206
33195-79-51110SHANK15001-
34195-78-71111PROTECTOR15207-
34\0\195-78-71110PROTECTOR15001-15206
35195-78-71260POINT,LONG15001-
3609244-02508PIN15001-
36A09244-02516PIN15001-
195-79-00101SHANK ASS'Y,SHORT POINT15207-
\0\195-79-00100SHANK ASS'Y,SHORT POINT15001-15206
37195-79-51110SHANK15001-
38195-78-71111PROTECTOR15207-
38\0\195-78-71110PROTECTOR15001-15206
39195-78-71240POINT,SHORT15001-
4009244-02508PIN15001-
40A09244-02516PIN15001-
195-79-00110SHANK ASS'Y,LONG POINT15001-
41195-79-51140SHANK15001-
42195-78-71111PROTECTOR15001-
43195-78-71250POINT,LONG15001-
4409244-02508PIN15001-
4509244-02516PIN15001-
195-79-00120SHANK ASS'Y,LONG POINT15001-
46195-79-51140SHANK15001-
47195-78-71111PROTECTOR15001-
48195-78-71260POINT,LONG15001-
4909244-02508PIN15001-
5009244-02516PIN15001-
195-79-00130SHANK ASS'Y,SHORT POINT15001-
51195-79-51140SHANK15001-
52195-78-71111PROTECTOR15001-
53195-78-71240POINT,SHORT15001-
5409244-02508PIN15001-
5509244-02516PIN15001-
195-79-00150SHANK ASS'Y15001-
56195-79-51140SHANK15001-
57195-78-71111PROTECTOR15207-
57\0\195-78-71110PROTECTOR15001-15206
58195-78-71140POINT15001-
5909244-02508PIN15001-
6009244-02516PIN15001-
61195-78-72410PROTECTOR,LONG15001-
62195-78-71380SHANK,(SERVICE PARTS)15367-
62195-78-71270SHANK,(SERVICE PARTS)15001-15366
